Anti Corrosion 2.8mm PVC Plastic Roof Tile For Construction Building

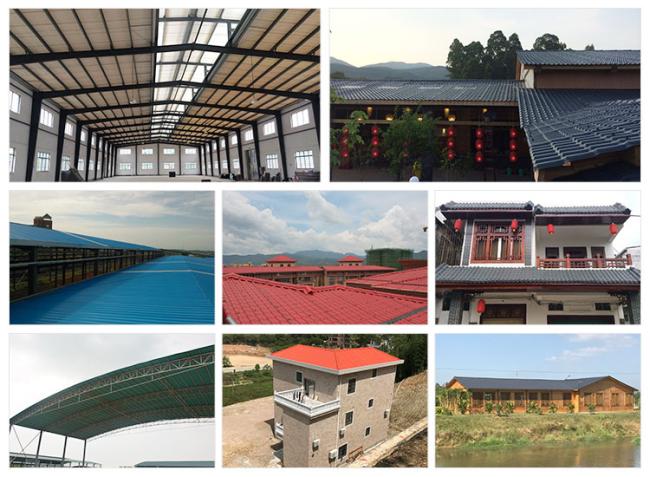

ASA synthetic Resin Roof tile the new generation light weight roof tile good for your Villa, House, Factory, eisure resorts ,etc Beautiful building
|
Type
|
Spanish Style ASA Synthetic Resin Tile
|
|
|
||
|
Color
|
brick red, purplish red, grey, blue, green or customized
|
|
|
||
|
Total width(mm)
|
1050
|
|
|
||
|
Practicality Width('mm')
|
960
|
|
|
||
|
Thickness(mm)
|
2.5±0.1
|
3.0±0.1
|
|
||
|
Length(mm)
|
Customized (must be accorded to the times of 219mm)
|
|
|
||
|
Weight(kg/m2)
|
2.5mm: 5.0±0.1
|
3.0mm: 6.0±0.1
|
|
||
|
Wave Distance(mm)
|
160
|
|
|
||
|
Wave Height(mm)
|
30
|
|
|
||
|
Pitch(mm)
|
219
|
|
|
||
|
Container Loading Capacity
|
Thickness(mm)
|
SQ.M./20 FCL (22 T)
|
SQ.M./40 FCL (26 T)
|
||
|
|
2.5
|
4512
|
5000
|
||
|
|
3
|
3759
|
4100
|
||
Every 500 square meters of roof tile will be a full quality tested once.
|
Test Item
|
Test Method
|
Test Result
|
|
CHEMICAL RESISTANCE
|
With reference to ASTM D543-14 Practice A Immersed, 35%(m/m)HCI(AR) 23°C,48h
|
No Visual Change
|
|
TENSILE TEST
|
ASTM D638-14
|
26.4Mpa
|
|
ELONGATION AT BREAK
|
|
44%
|
|
BURNING TEST
|
Din 4102:1998-05
|
≧ B1
|
|
SOUND INSULATION
|
Compare with metal roof tile
|
30dB lower
|
|
VICAT SOFTENING TEMPERATURE
|
ASTM D1525-09
|
83°C
|
FAQ:
1. Are you OEM?
Yes, we are the manufacturer,we have our professional R&D team,We can make your own products..
2. What's the advantage of pvc roof tile, comparing with the roof of Zinc, aluminum, steel and iron ?
Excellent corrosion resistance / Never rust / Heat insulation / Light weight / Strong toughness / Fire retardant.
3. Do you have the accessories?
YES, we can provide various accessories.
4. What are the differences between Upvc, ASA synthetic resin tile & ASA-pvc?
The quality guarantees are different. Upvc is 10 years / ASA synthetic resin tile is 30 years / ASApvc is 25 years.
5. Is PVC roof tile suit for extreme climate?
Of course it is. Heat resistant value is 0.5(which is 3 times of steel).When the weather is cold, it can keep warm about 4-6°C compared with outside. It can be used in -20 degree~ 80 degree.
Our service:
1. We can provide you with a full range of services – from inspection and auditing to testing and analysis and certification. We are committed to providing you with the best solution.
2. Free Sample can be offered.
3. We will reply you for your inquiry in 24 hours.
4. After delivery, we will track the products for you once every two days, until you get the products.
When you got the goods, test them, and give me a feedback.
5. If you have any questions about the problem, contact with us, we will offer the solve way for you.
