10" Touch Screen IP69K Wireless Rear View Mirror Car Charger Receiver
10" Touch Screen IP69K Wireless Rear View Mirror Car Charger Receiver
Wireless Rearview IR Camera 10" Touch Screen Car-Charger Receiver Black Color

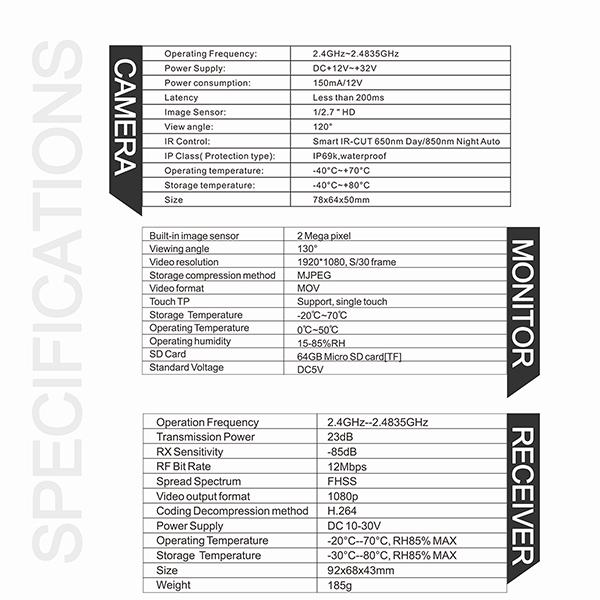

Specification:
Camera
| Viewing Angle | 120° |
| Image Device | 1/2.7" COMS (HD) |
| IR Control | SMART IR-CUT 650nm Day/850nm Night Auto |
| Waterproof level | IP69k |
| Transmission Distance(barrier free) | 1650ft |
| Night Vision Distance | 33ft |
| Latency | less than 200ms |
| Power Supply | DC+12V |
| Power Consumption | 150mA/12V |
| Transmission Power | 26dB |
| Operating Temperature | -20℃--70℃,RH85% MAX |
| Storage Temperature | -30℃--80℃,RH85% MAX |
| Weight | 430g |
| Spread Spectrum | FHSS |
| Minimum Illumination | 0Lux |
Receiver
| Operation Frequency | 2.4GHz--2.4835GHz |
| Transmission Power | 23dB |
| RX Sensitivity | -85dB |
| RF Bit Rate | 12Mbps |
| Spread Spectrum | FHSS |
| Video output format | 1080p |
| Coding Decompression method | H.264 |
| Power Supply | DC 10-30V |
| Operating Temperature | -20℃--70℃,RH85% MAX |
| Storage Temperature | -30℃--80℃,RH85% MAX |
| Size | 92x68x43mm |
| Weight | 185g |
H10 Rear View Mirror
| Built-in image sensor | 2 mega pixel |
| Viewing angle | 130° |
| Video resolution | 1920*1080 |
| Storage compression method | MJPEG |
| Video format | MOV |
| Touch TP | Support, single touch |
| Storage Temperature | -20℃-70℃ |
| Operating Temperature | 0℃-50℃ |
| Operating humidity | 15-65%RH |
| SD Card | Support micro TF Card 128G Max |
| Standard Voltage | DC5V |
Features:
1. First item 10 Inch AHD digital wireless streaming rear view mirror DVR
2. 10 Inch big touch screen and Anti-glare screen,can support 2 channel at the same time.video resolution is 1920*1080.
3. Support front and back 1080P dual recording,front and back camera split screen display at the same time,support playback online.
4. AHD Receiver use Car charger integrated design,easy to install and connect power supply from car cigarette lighter port.
5. Camera:11pcs high power infrared light, IR-CUT smart switch, night vision distances can reach up to 10m.

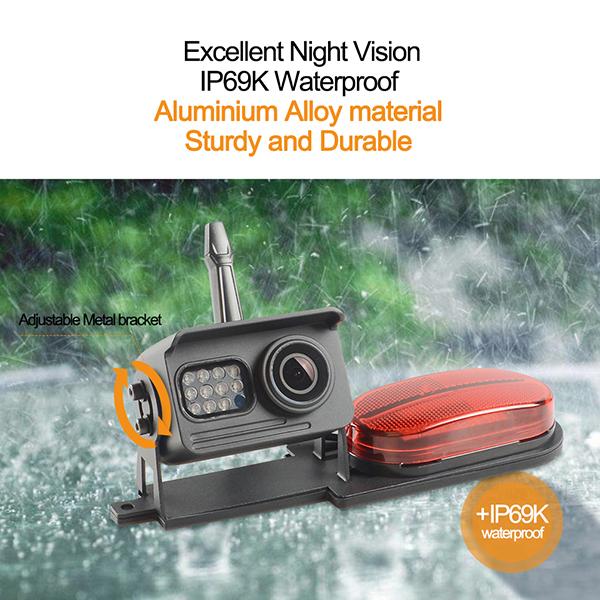

6. The camera use an assembled waterproof process. Waterproof IP69K, Waterproof droplets, anti-fog, dust-proof, scratch-proof.

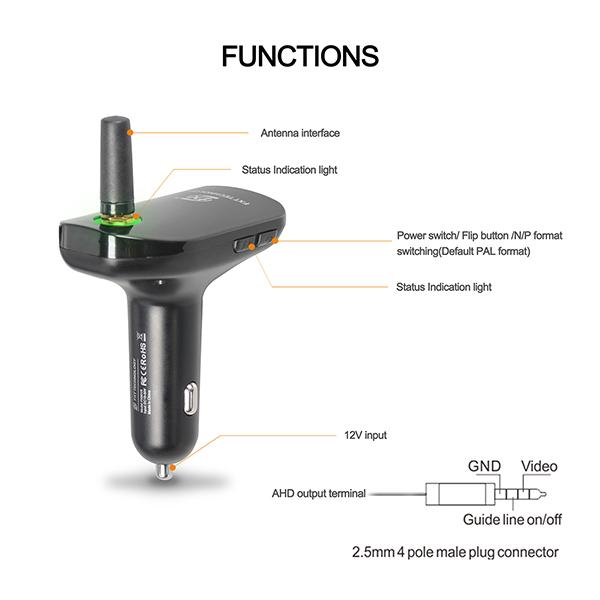

7. Car charger receiver function: Trigger the rearview mirror reversing line. Spin, Pair, Power on/off, N/P Switch, Factory resetting

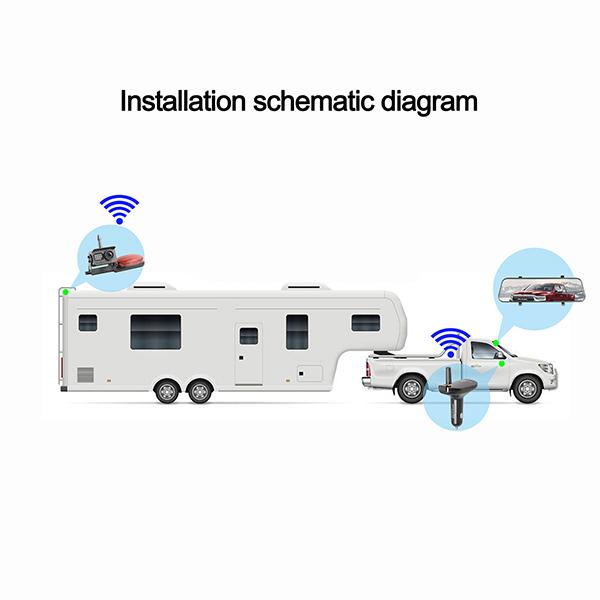

8. Apply to vehicles: RV, Trailer RV.
Warranty and service:
You (as the end user) get a 12-month guarantee from the date of purchase.
During the warranty period, if there is damage, repair or other problems, please contact the seller or qualified experts.
General warranties apply to defects in manufacture and materials. Please return the defective product to the seller.
To quickly process your warranty claim, you need to provide: A copy of the receipt showing the purchase date. Cause of claim (description of defect).
