500Pa Pleated HEPA Separator Filter Element Heatproof Non Corroding
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
5-8 working days
Brand:
Comfort
Product Description

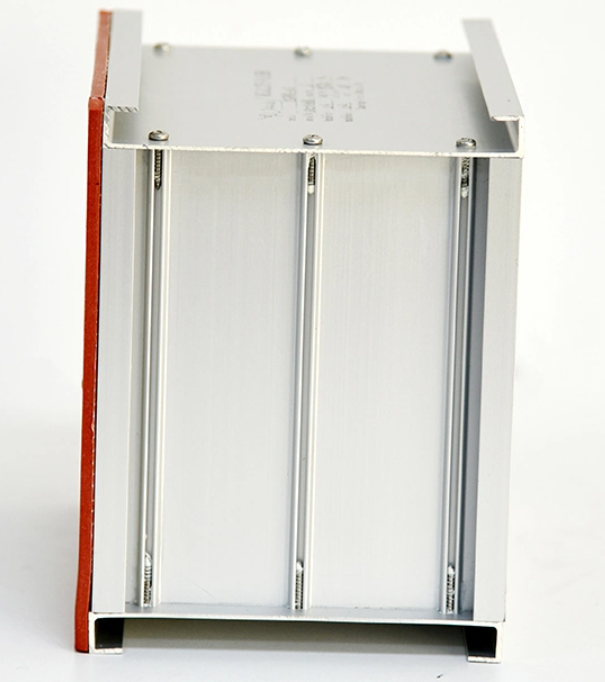

High-Temperature Resistant Separator HEPA Filter
Description:
We produce all kinds of different normal size High-temperature resistant Separator HEPA Filters.
We have also the ability to manufacture according to customized size and material specifications.
| Model Dimensions (W×H×D) mm |
Filter grade EN 779/EN1822 |
Airflow / pressure drop m³/h / Pa (± 15%) |
Area m2 |
Unit volume m³ |
|---|---|---|---|---|
| 305x610x292 |
M6 |
1700/100 | 6.69 | 0.054 |
| 610x610x292 | M6 | 3400/100 | 13.66 | 0.108 |
| 305x610x292 | F8 | 1700/135 | 6.69 | 0.054 |
| 610x610x292 | F8 | 3400/135 | 13.66 | 0.108 |
| 305x610x150 | H13 | 500/220 | 3.20 | 0.028 |
| 610x610x150 | H13 | 1000/220 | 6.40 | 0.056 |
| 915x610x150 | H13 | 1500/220 | 9.60 | 0.084 |
| 305x610x292 | H13 | 1250/220 | 6.69 | 0.054 |
| 610x610x292 | H13 | 2500/220 | 13.66 | 0.108 |
| 305x610x150 | H14 | 500/220 | 3.20 | 0.028 |
| 610x610x150 | H14 | 1000/220 | 6.40 | 0.056 |
| 915x610x150 | H14 | 1500/220 | 9.60 | 0.084 |
| 305x610x292 | H14 | 1250/220 | 6.69 | 0.054 |
| 610x610x292 | H14 | 2500/220 | 13.66 | 0.108 |
Materials:
| Frame | Galvanized steel sheet, 304 Stainless steel sheet |
| Separator | Aluminum foil |
| Media | Glass Fiber |
| Gasket | High-temperature resistant silicone sponge |
| Sealant | Polyurethane |
| Face Guard | Stainless steel sheet |
Applications:
- High-Temperature purification equipment
- Process Equipment
- Sterilization Tunnel
- Pharmaceutical/medical/chemical industries
Features:
- Ultra-fine glass fiber
- Separator design with high efficiency
- Low differential pressure drop
- High DHC
- Applicable to VAV system
Detailed Pictures:
