Cellulose FF2006 Liquid Filtration Media Fuel Filter Paper
Cellulose Filter Media FF2006 Filter Material Roll For Mobile And Industrial Fuel Applications
Description
Supporting the industries' challenging new emission laws
Our diesel fuel filter media provides consistent particulate and water protection while it lowers energy usage and extends the life of system components.
We have a complete line of particulate and water coalescing media products used in on-highway and off-road applications. Specific grades address special market needs for challenging fuel quality, biofuel compatibility and static mitigation.
| Application | China II | China III/IV FWS | China IV/V | Fluted Type | ||||||||
| Physical | BW(gsm) | 140 | 130 | 152 | 170 | 168 | 146 | 180 | 181 | 190 | 100 | 120 |
| Overall thickness(mm) | 0.79 | 0.65 | 0.75 | 0.76 | 0.89 | 0.62 | 0.8 | 0.76 | 0.82 | 0.34 | 0.34 | |
| Corrugation depth(mm) | 0.28 | 0.31 | 0.35 | 0.4 | 0.35 | 0.16 | 0.25 | 0.28 | 0.2 | NA | NA | |
| Air perm(cfm) | 73 | 15 | 13 | 12 | 13 | 7 | 4.3 | 2.5 | 1.7 | 1.3 | 2 | |
| Max pore(micron) | 94 | 45 | 44 | 43 | 38 | 30 | 26 | 23 | 21 | 14.3 | 19 | |
| MD stiffness(mg) | 4500 | 2800 | 4000 | 4100 | 5000 | 3500 | 600 | 5000 | 6000 | 1200 | 100 | |
| Filtration performa nce(Flat sheet multi pass) | > 4 micron efficiency (%) | 40 | 72 | 73 | 74 | 74 | 80 | 94 | 98.5 | 99.5 | 99.5 | 94 |
| >10 micron efficiency (%) | 52 | 93 | 93 | 94 | 93 | 96 | 99.3 | 100 | 100 | 100 | 100 | |
| DHC (g/m2) | 250 | 120 | 99 | 146 | 160 | 300 | 300 | 110 | 95 | 85 | 85 | |
| Beta 75 rating(µm) | 40 | 15 | 15 | 10 | 8 | 4 | <4 | <4 | 7 | |||
| Testing standards | ||||||||||||
| ISO 19438, 0.5 l/min, ISO 12103 – A3 Medium dust | ||||||||||||
How could it work?

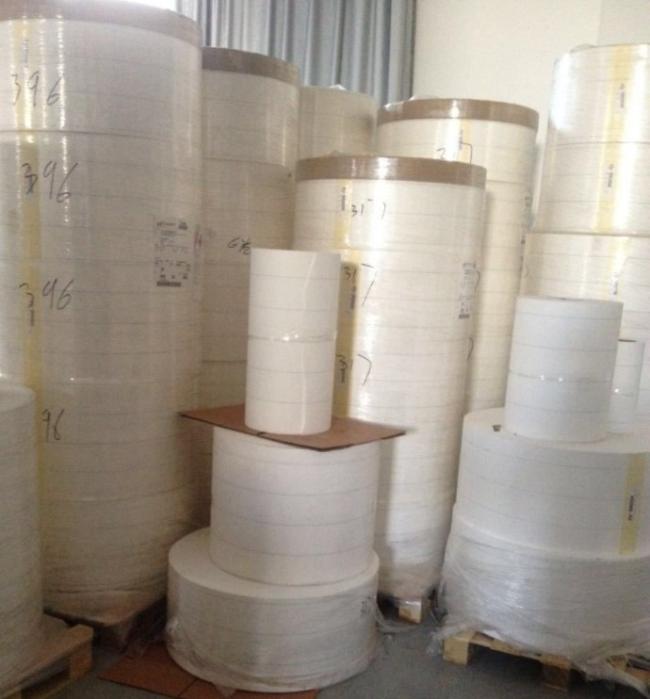

Package
Middle packing:Kraft paper for both ends
Outer packing:Plastic film
Roll packed on pallet
