Practical 600Pa Synthetic Bag Filter , M5 M6 Multipurpose Glass Fiber Air Filter
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
10-15 working days
Brand:
OE or Neutral
Product Description
Medium Filter M5 M6 F7 F8 F9 Glass Fiber Pocket Air Filter
Product Description:
Fiberglass pocket air filter
Dimensions of the filter can be customized.
Specifications:
|
Size (WxHxD) mm |
Efficiency EN779 |
Pocket Nos. |
Airflow/Initial Pressure m3/h/Pa (±15%) |
Area m2 |
|---|---|---|---|---|
| 592x592x600 | M5 | 6 | 2800/70 | 6.4 |
| 592x592x600 | M6 | 6 | 2800/105 | 4.14 |
| 592x592x600 | F7 | 6 | 2800/130 | 4.14 |
| 592x592x600 | F8 | 6 | 3400/145 | 4.97 |
| 592x592x600 | F9 | 6 | 3400/185 | 4.97 |
Material:
| Frame | Extruded aluminum ·Galvanized stel sheet |
| Optional thickness | 20mm, 21mm, 25mm, 46mm |
| Inner frame | Galvanized steel sheet |
| Media | Glass fiber |
| Gasket | CR,EVA,EPDM |
Advantages:
- Easy to install
- Large filtration area
- Low Pressure
- High structural strength
- Strong supporting frame

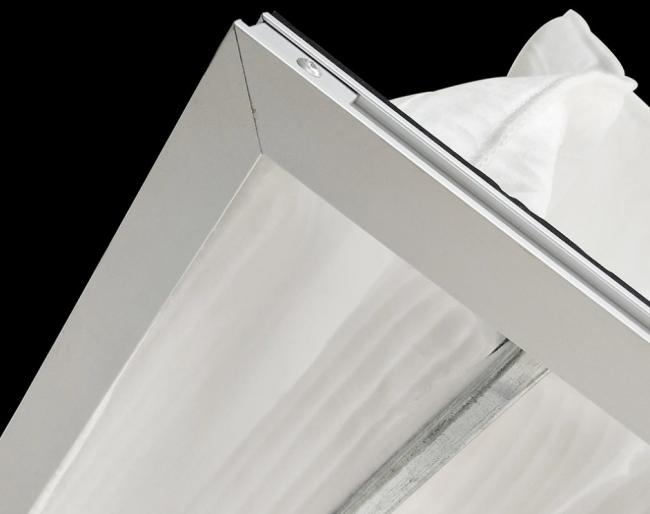

Detailed Pictures:
