600 Pa Multipurpose V Bank Filter Element ABS Fiberglass Frame

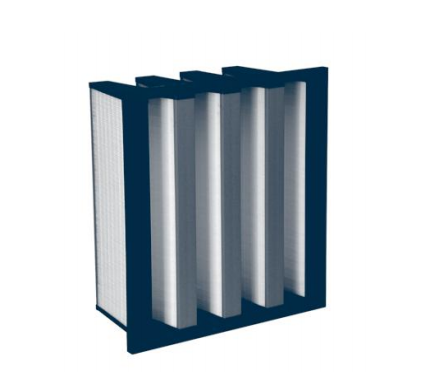

F9 Fiberglass ABS Frame V Bank Filter Elements
This customized V Bank filter element is made with H&V fiberglass, which ensures a consistent filtration performance.
Henkel adhesives are applied in gasket and separators, this keeps a favorable air flue and a more secure adhesiveness.
The qualified ABS frame deforms once the pressure's over 5000Pa.
On both air-outlet sides, we use spray plastic-metal plate mesh for better support and protection of the filter media.
| Model |
Size (WxHxD mm) |
Efficiency (EN779) |

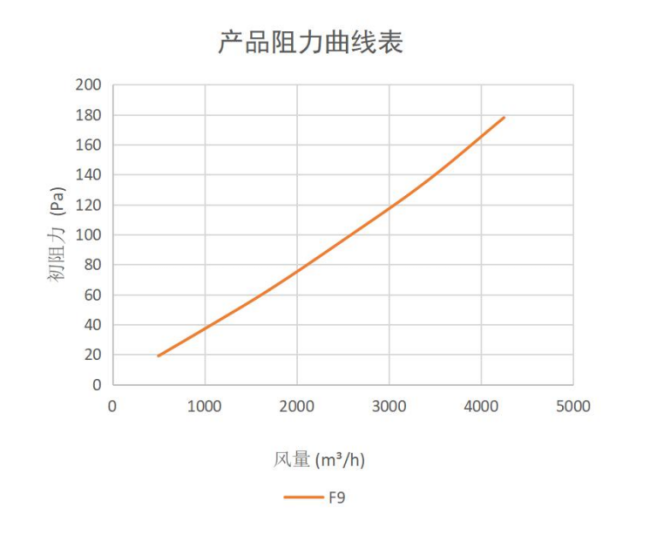

Air Flow / Initial Pressure m3/h / Pa (±10%) |
| MPK412-38 | 592x592x292-4V | F9 | 3400/135 |
Customized requirements are accepted.
| Frame Material | ABS plastic |
|---|---|
| Separator | Hot melt glue |
| Filter Media | H&V fine Fiberglass |
| Gasket | CR, EPDM |
| Wire Mesh | Spray plastic-metal plate |
| Adhesives | Henkel Polyurethane |
- Long Service life
- Low Initial Pressure
- Mini-pleat design
- Large Filtration Area
- Semiconductor manufacturing plant
- Atomic force research center
- Cleanroom
- Laminar flow equipment
- 2nd stage filter in the gas turbine filtration system
