RINO High Speed Folding And Gluing Machine , Paper Folder Gluer Machine
780 4 6 Corner Lock Bottom Straight Line High Speed Folding And Gluing Machine
Folding And Gluing Machine Characteristics
1. Use electric adjust, easy operate.
2. Automatic continuous feeding, use multiple belt with vibrating motor,(for higher configuration use drilled suction belt),to keep the feeding stable.
3. Automatic counting and kicking, quantity can preset.
4. Conveyer pressure adjustable according to the box to ensure best quality.
5. The move row adopts the two-way screw rod to adjust,fast and simple.
6. The transmission adopts the synchronous belt and mast top,accurate,ensure to paste box perfect quality.
7. Pre-folded function can develop the production efficiency,forma complete set with the automation packing.
8. The press and delivery part can move front and back,so as to provide the convenience to wine box and long box.
9. The photoelectricity countand automatic kick board are assort ,accurate and convenience.

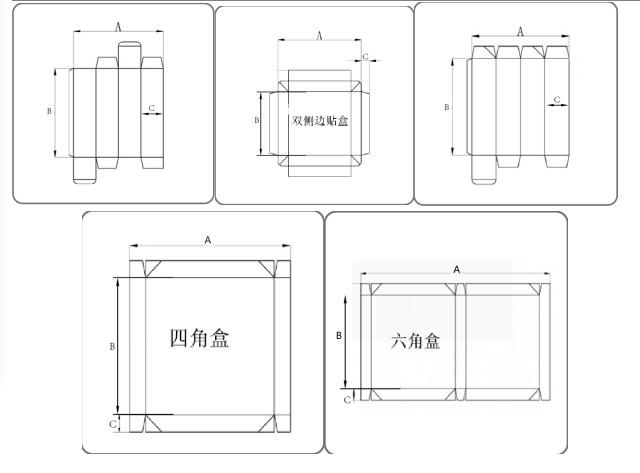

Folding And Gluing Machine Parameter
|
HF-GBL780 |
||||||
| Straightline box | Double sides box | Crash-lock bottom box | 4-corner box | 6-corner box | ||
| A | MAX | 800 | 720 | 730 | 700 | 700 |
| MIN | 100 | 100 | 130 | 150 | 200 | |
| B | MAX | 1000 | 700 | 800 | 500 | 500 |
| MIN | 60 | 70 | 60 | 60 | 80 | |
| C | MAX | 250 | 180 | 180 | 120 | 120 |
| MIN | 8 | 10 | 25 | 20 | 20 | |
Main units
 |
|
Paper feeding unit
1. Suction feeding belt ,more fast and stable.
|
 |
|
Bottom locked unit
Other top electronic spray adhesive system configuration can choose according to the needs of aircraft configuration.
|
 |
|
Pressing unit
Independent motor drive; (follow) manual and automatic operation mode.
|
Standard & Optional configuration list
| Configuration | Units | Standard | Optional | |
| 1 | Feeder section | √ | ||
| 2 | Paper Alignment Section | √ | ||
| 3 | Pre-fold Section | √ | ||
| 4 | Crash lock bottom section | √ | ||
| 5 | Upper paste barrel equipment | √ | ||
| 6 | Down pasting equipment(R+L) | √ | ||
| 7 | Gluing system | √ | ||
| 8 | Grinder device | |||
| 9 | Plasma treatment system | √ | ||
| 10 | Folding and closing section | √ | ||
| 11 | Trombone section | √ | ||
| 12 | Press section | √ | ||
| 13 | Table (one) | √ | ||
| 14 | monitor | √ | ||
| 15 | Double-sided adhesive | √ |
Finished Product
