Corrugated Board Paper Reel Stand 3 Tons Kraft Paper Holder Feeding
Hydraulic Shafless Mill Roll Stand Heavy Type For Corrugated Board Production Line
Features of Hydraulic Shaft Less Mill Roll Stand
1. Adopt double drum symmetrical four-arm structure, can support two rolls of base paper at the same time use efficiency is higher.
2. Low noise Motor, more quiet.
3. Plum multi - point pneumatic brake,The friction plate has long service life, stable torque control, accurate, stable and adjustable air pressure.
4. It is not easy to damage, the tooth of the chuck and the wall of the paper tube bite the side wall of the paper core to achieve the effect of clamping the paper core.
Parameter of Hydraulic Shaft Less Mill Roll Stand
|
Product Name
|
Hydraulic Mill Roll Stand
|
|
Width
|
1200-2800mm
|
|
Roll Paper Min. width
|
1200-2000mm: 800mm
2000-2800mm: 1200mm
|
|
Roll paper diameter
|
Max. 1500mm
|
|
Support Weight
|
Max. 3Tons
|
|
JIG
|
Standard: Inner expanding chuck
Option: Zero waste type chuck
|
|
Feeding trolley
|
6/7/8/10m, manual/electric/hydraulic, option. 2 heavy track
|
|
Brake
|
Pneumatic, multi-point brake
|
|
Material
|
Cast Iron
|
|
Network control
|
Available, need to connect to Auto Splicer, Automatic tension adjustment
|
|
Centering device
|
Option
|
|
Connect with Roll paper conveying system
|
Available
|

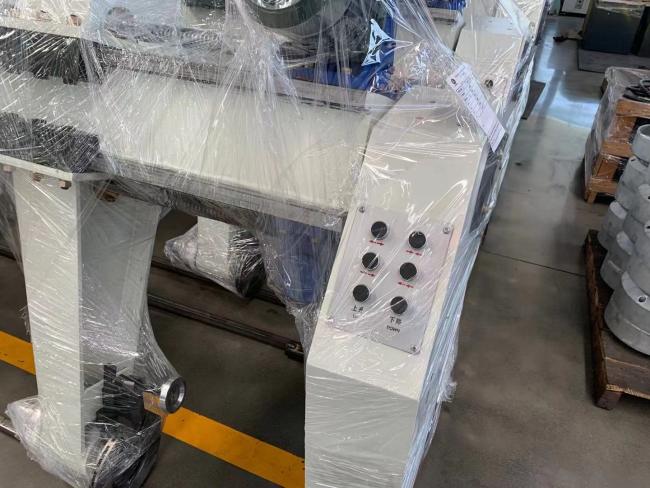

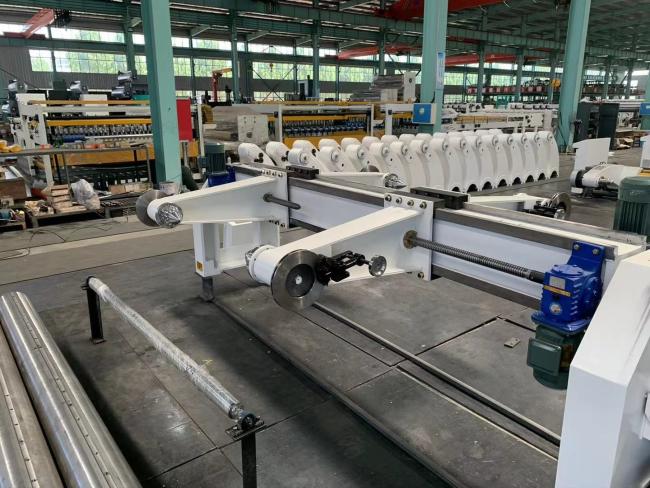

Mill Roll Stand Show
 |
 |
Main Parts
| Name of main parts | Brands or place of origin | material |
| Main shaft | Day steel production | diameter242mm |
| Swing arm | Production by own | Resin sand gray ironHT200 |
| wallboard | Jigang prduction | Q235AWelding parts |
| bearing | HRB OR C&U | |
| teeth chuck | 3-4inch shared | |
| Main electrical appliance | Siemens |
