10kva 30kva 50kva 60kva 80kva 100kva Silent Diesel Generators With UK Perkins Engine
10kva 20kva 30kva 50kva 60kva 80kva 100kva Silent Diesel Generators Price With UK Perkins Engine
General Features:
1. Every generator set is subjected to a comprehensive test program which includes 50% load, 75% load,100% load, 110% load and the checking and proving of all control and safety shut-down functions;
2. 24V DC start motor;
3. Equipped 24V high performance maintenance-free lead-acid starting batteries and connecting with cables;
4. Equipped with industrial silencer and flexible exhaust hose;
5. Designed to Comply with ISO8528/GB2820;
6. Powered by Original UK PERKINS engine, Stamford/Leroy Somer/Meccalte/Marathon alternator and DeepSea/ComAp/SmartGen control panel.
Generator Set Output
| Generator set model | Voltage | Hz | Phase | P.F. | Prime Power | Standby Power | ||
| (V) | KVA | KW | KVA | KW | ||||
| AP55 | 230/400 | 50 | 3 | 0.8 | 50 | 40 | 55 | 44 |
Perkins Diesel Engine Specifications
| Engine manufacture | Perkins Engines Company Limited | |||||||||||
| Engine brand | Perkins | |||||||||||
| Engine model | 1103A-33TG2 | |||||||||||
| Engine speed (rpm) | 1500 | |||||||||||
| Prime power | Standby power | |||||||||||
| Gross engine power (kWb) | 55 | 60.5 | ||||||||||
| Typical Genset electrical output 0.8pf 25ºC (100 kPa) (KW) | 48 | 52.8 | ||||||||||
| Cylinders | 3-cylinder, vertical in line | |||||||||||
| Cycle | 4 stroke | |||||||||||
| Induction system | Turbocharged | |||||||||||
| ICombustion system | Direcct injection | |||||||||||
| Compression ratio | 17.25:1 | |||||||||||
| Bore * Stroke (mm) | 105*127 | |||||||||||
| Cubic capacity (Litre) | 3.3 | |||||||||||
General Alternator Specifications
| Alternator brand | Stamford, Marathon, Leroy Somer, Mecc-alte, TWGII… |
| Prime power | 10kva-100kva |
| Frequency/speed | 50HZ |
| Exciter type | Brushless |
| Power factor | 0.8 |
| Voltage adjust range | ≥5% |
| Voltage regulation NL-FL | ±0.5% |
| Insulation Grade | H |
| Protection Grade | IP23 |

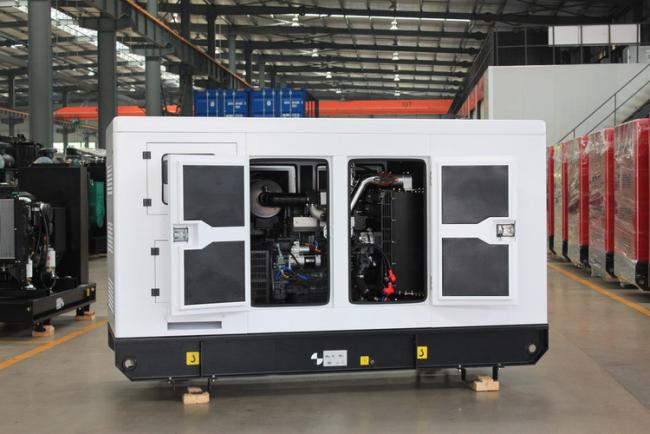

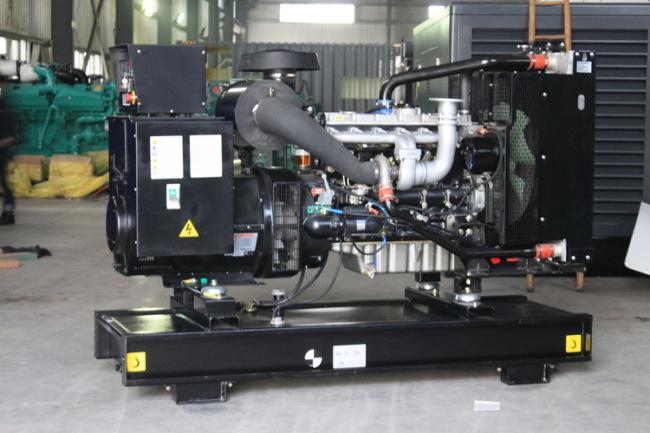

Perkins Open and Silent Generator Photos
- 24 hours continuous stable power supply, in extreme or normal temperatures from -10 °C to 50 °C.
AI Power generators are design to work 24*7 in extreme temperature conditions with minimum maintenance requirement.
- In some cases CHP & CCHP (Combined heat and power/ Combined cooling heat and Power) to utilized heat.
AI Power specially designs Diesel and Gas CHP/CCHP Power generators to provide hot water or steam as well as Power.
- Lower noise level is important.
AI power generators are made to be environment friendly with low emission and lower noise level
- Reliable AMF & ATS System (Auto mains failure & Auto transfer System) which can start and stop generators automatically with load transfer in case of city supply on or off.
