Low Fuel Consumption QSZ13-G7 Cummins Diesel Generator Set DCEC 320kw 400kva
Price:
USD 25800 to26500 Per Unit Negotiable
MOQ:
1 Unit
Delivery Time:
30 Days
Brand:
Ai Power
Product Description
Low Fuel Consumption 320kw 400kva QSZ13-G7 Cummins Diesel Generator Set DCEC
AI POWER is the professional manufacturer of power generator, light tower and air compressor in China. We provides a complete line of generators for commercial,industrial and residential application.We specialize in providing a wide range of well known and trusted brands of diesel generators, supplying generators from 5kw to 2000kw at competitive prices.
Besides generators, we also product the refere product incldue lighting towers and air compressor. At the same time, we also provide the reference electrical products, include ATS, Synchronization system & switchgear.
|
Frequency
|
50HZ
|
|
Voltage
|
220/380V, 230/400V, 240/415V
|
|
Power range
|
65KVA Prime
|
|
Engine
|
Cummins 6LTAA9.5-G1 Series
|
|
Alternator
|
Leroy somer, Stamford, Meccalte etc.
|
|
Controller
|
DSE6120, DSE7320, AMF20, AMF25
|
|
Genset type
|
open generator, silent genset, container power generator, mobile diesel generator
|
|
Option
|
ATS, synchronization system
|
Diesel Engine specification
| Engine manufacturer | Dongfeng Cummins Engine Co. Ltd | |||||||||||
| Engine brand | Cummins | |||||||||||
| Engine model | QSZ13-G7 | |||||||||||
| Engine speed (rpm) | 1500 | |||||||||||
| Engine output(kWm) | 367 | |||||||||||
| Standby Power | 419KW | |||||||||||
| Prime Power | 367KW | |||||||||||
| Continuous Power | 330KW | |||||||||||
| No. of Cylinder | 6 | |||||||||||
| Aspiration | Turbocharged and Charge Air Cooled | |||||||||||
| Bore * Stroke (mm) | 130*163 | |||||||||||
| Displacment (litre) | 13 | |||||||||||
| Compression Ratio | 17:1 | |||||||||||
| Engine Idle Speed (rpm) | 700-850 | |||||||||||
Brushless AC Alternator
|
Alternator manufacturer
|
Leroysomer Electro-technique (Fuzhou) Company Ltd.
|
|
Alternator brand
|
Leroysomer
|
|
Alternator model
|
LSA47.3S4
|
|
Control system
|
AREP
|
|
A.V.R.
|
Included
|
|
Voltage regulation
|
±1.0%
|
|
Insulation system
|
Class H
|
|
Protection
|
IP23
|
|
Rated power factor
|
0.8
|
|
Winding pitch
|
Two thirds
|
|
Winding leads
|
6
|
|
Frequency (Hz)
|
50
|
|
Voltage (V)
|
400
|
|
Phase
|
3
|
|
THF
|
<2%
|
|
TIF
|
<50
|
|
Max. overspeed (Rev/Min)
|
2250
|
|
Bearing
|
Single
|

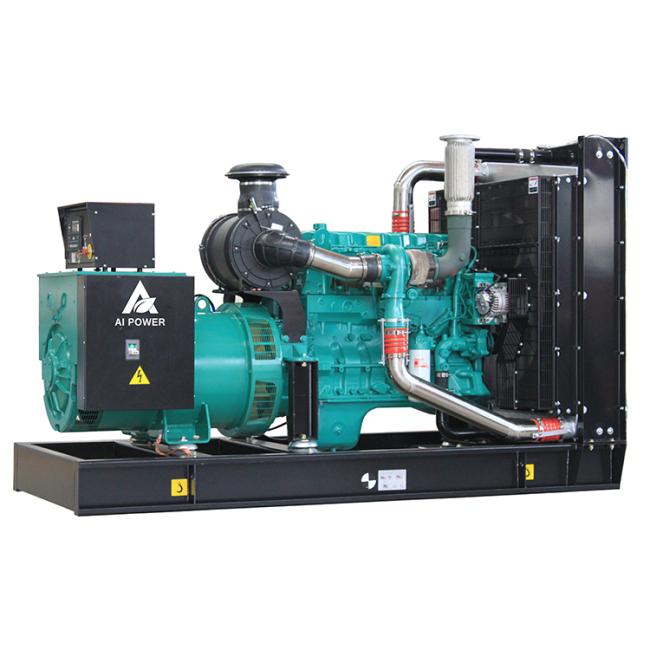

Diesel Generator Photo Details
