Construction Machinery Soundproof Korea Doosan Diesel Generator 120KW 155KVA
Construction Machinery Soundproof 120KW 155KVA Generator Power With Korea Doosan Diesel Generator
AI power Doosan series generator set adopts Doosan engine as the power source. Doosan group founded in 1896 is one of the largest consortium in Korea. Doosan started producing diesel engines for the first time in 1958. Doosan went into full production under the license of MAN technology in 1975, and ISUZU technology in 1979. Furthermore, Doosan began to produce the CNG engine in 1998, so our reinforced line up from Diesel engine to Natural Gas engine could supply more choices and meet the various needs of our customers. Doosan acquired Daewoo Machine in 2005 to strengthen the ability of designing and producing the engine.
Doosan Engine Specifications:
| GENERAL ENGINE DATA | ||||||||||||
| Engine manufacture | Doosan Infracore Co., Ltd | |||||||||||
| Engine brand | Doosan | |||||||||||
| Engine model | DP086TA | |||||||||||
| Engine speed (rpm) | 1500 | |||||||||||
| Engine output(kWm) | ||||||||||||
| Standby Power | 152 | |||||||||||
| Prime Power | 137 | |||||||||||
| Engine Type | 4-Cycle, In-line, 6-Cylinder Diesel, water cooled, Turbo charged | |||||||||||
| Bore x Stroke (mm) | 111 x 139 | |||||||||||
| Displacment (litre) | 8.071 | |||||||||||
| Compression Ratio | 16.7:1 | |||||||||||
| FUEL SYSTEM | ||||||||||||
| Type | Bosch type in-line pump with integrated, electromagnetic actuator | |||||||||||
| Governor | Electric type ( all speed control ) | |||||||||||
| Fuel Consumption (litre/hour) | ||||||||||||
| 25% prime load | 9.2 | |||||||||||
| 50% prime load | 17.4 | |||||||||||
| 75% prime load | 25.5 | |||||||||||
| 100% prime load | 33.7 | |||||||||||
| EXHAUST SYSTEM | ||||||||||||
| Maximum Back Pressure (kPa) | 5.9 | |||||||||||
| Exhaust gas temp. after turbo. (prime/standby power) (°C) | 537/ 610 | |||||||||||
| Exhaust Gas Flow(prime/standby power) (m3/min) | 33.9 | |||||||||||
| AIR INDUCTION SYSTEM | ||||||||||||
| Maximum Intake Air Restriction (kPa) | ||||||||||||
| with Clean Filter Element | 2.16 | |||||||||||
| with Dirty Filter Element | 6.23 | |||||||||||
| Intake Air Flow(prime/standby power) (m3/min) | 13.49 / 14.33 | |||||||||||
| COOLING SYSTEM | ||||||||||||
| Cooling method | Fresh water forced circulation | |||||||||||
| Coolant capacity | Engine Only : Approx. 14 lit., With Radiator : Approx 44 lit.(standard) | |||||||||||
| Water Temperature | ||||||||||||
| Maximum for standby and Prime (°C) | 103 | |||||||||||
| Before start of full load (°C) | 40 | |||||||||||
| Thermostat Type and Range | Wax – pellet type, Opening temp. 71°C , Full open temp. 85°C | |||||||||||
| LUBRICATION SYSTEM | ||||||||||||
| Lub. Method | Fully forced pressure feed type | |||||||||||
| Oil pan capacity | Max. 15.5 liters , Min. 12 liters | |||||||||||
| Lub oil pressure (kPa) | ||||||||||||
| Idle Speed Min. | 100 | |||||||||||
| Governed Speed Min. | 250 | |||||||||||
| Maximum Oil Temperature (°C) | 120 | |||||||||||
| ELECTRICAL SYSTE | ||||||||||||
| Battery Charging Alternator | 28.5V x 45A alternator | |||||||||||
| Starting motor | 24V x 6.0 kW | |||||||||||
| Battery Voltage | 24V | |||||||||||
| Battery Capacity | 100 Ah (recommended) | |||||||||||
Product Photos:

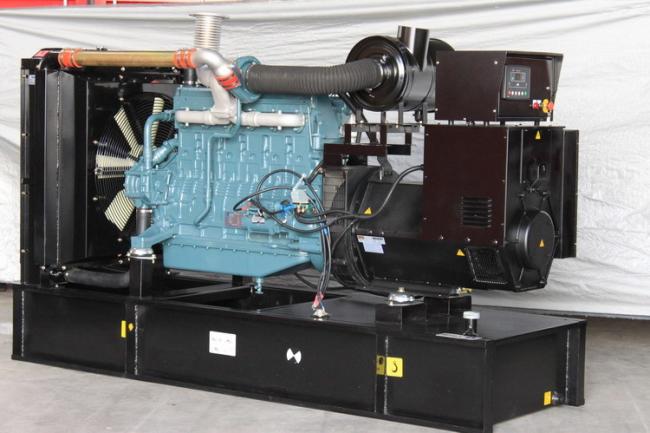

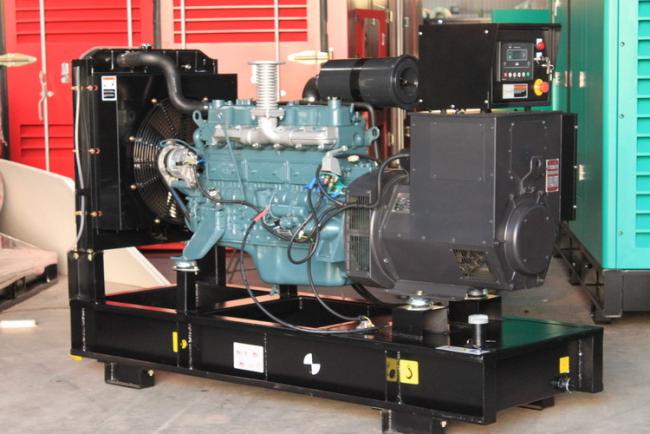

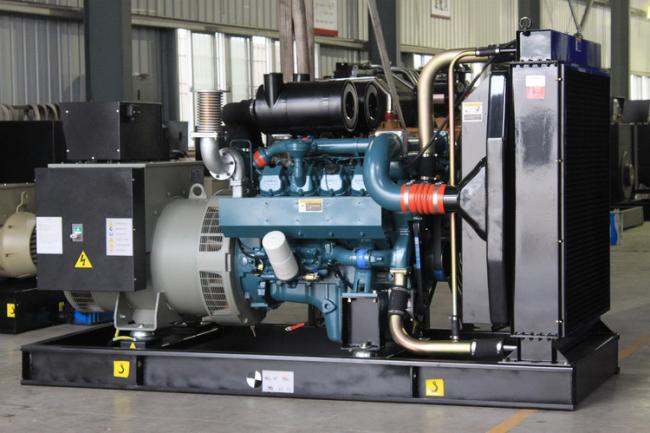

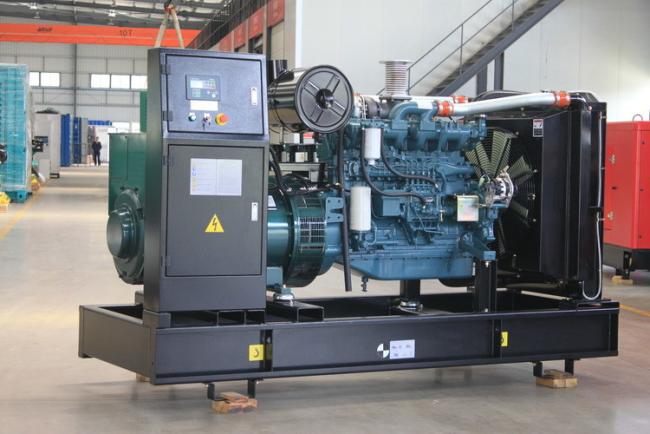

Open Type.
● Famous brand engine couple with high quality alternator
● Large size cooling radiator
● Heavy duty steel base frame
● Strong anti-vibration mat
● Standard free maintenance battery
● AC alternator for battery charger
● Heavy-duty air filter, oil filter, water filter
● Famous brand controller and breaker
● Optional fuel tank, silent canopy, ATS, synchronization panels.
1. What is your warranty period?
A: It’s 1 year or 1000 running hours whichever comes first. But based on some special project, we can extend our warranty period.
2. Can you accept OEM?
A. Yes, we can accept OEM.
3. What’s your payment term?
A: We can accept T/T 30% in advance and the balance 70% shall be paid before shipment or LC at sight.
4. What’s your delivery time?
A: Our normal delivery time is 2 to 4 weeks. But if your order is some special engine and alternator, the delivery time will be longer.
