SME 650kva 3 Cylinde Mitsubishi Diesel Generator 520kw S6R2-PTA-C
Japan Mitsubishi 650kva Diesel Generator
AI power Mitsubishi series generator set adopts Mitsubishi engine as the power source. Shanghai Mitsubishi heavy engine Co., Ltd. is a joint venture between Japan’s Mitsubishi heavy industry Co., Ltd. and Shanghai diesel engine Co., Ltd. the company produces the S6R2/S12R/S16R series engines under the authority from MHI.
Japan Mitsubishi Diesel Engine Specification
|
STAND-BY POWER PRIME POWER |
|||||||||||
|
50Hz 50Hz |
|||||||||||
|
Engine Speed |
rpm |
1500 1500 |
|||||||||
|
No. of Cylinders |
6 |
||||||||||
|
Bore |
mm (in.) |
170 (6.69) |
|||||||||
|
Stroke |
mm (in.) |
220 (8.66) |
|||||||||
|
Displacement |
liter (in.3) |
29.96 (1828) |
|||||||||
|
Brake Horse power with Fan |
kW (HP) |
635 (851) |
575 (771) |
||||||||
|
Brake Horse power without Fan |
kW (HP) |
655 (878) |
595 (798) |
||||||||
|
Brake Mean Effective Pressure with Fan |
MPa (psi) |
||||||||||
|
Brake Mean Effective Pressure without Fan |
MPa (psi) |
1.7 (253) |
1.6 (230) |
||||||||
|
Mean Piston Speed |
m/s (ft/min) |
11.0 (2165) |
11.0 (2165) |
||||||||
|
Fuel Consumption |
g/kWh (g/HPh) |
194 (145) |
195 (146) |
||||||||
|
Maximum Regenerative Power Absorption Capacity without Fan |
kW (HP) |
64 (86) |
64 (86) |
||||||||
|
Intake Air flow |
m3/min (CFM) |
52 (1836) |
47 (1660) |
||||||||
|
Exhaust Gas Flow |
m3/min (CFM) |
137 (4837) |
125 (4414) |
||||||||
|
Coolant Flow |
liter/min (U.S. GPM) |
670 (177) |
670 (177) |
||||||||
|
Coolant Flow to Intercooler (TK only) |
liter/min (U.S. GPM) |
- |
- |
||||||||
|
Cooling Air Flow (Std. Fan) |
m3/min (CFM) |
720 (25423) |
720 (25423) |
||||||||
|
Fan Loss Horse Power (Std. Fan) |
kW (HP) |
20 (27) |
20 (27) |
||||||||
|
Radiated Heat to Ambient |
kJ/hr (BTU/min) |
163074 (2577) |
149235 (2358) |
||||||||
|
Heat Rejection to Coolant |
kJ/hr (BTU/min) |
1358947 (21471) |
1243640 (19649) |
||||||||
|
Heat Rejection to Inter Cooler (TK Version) |
kJ/hr (BTU/min) |
- |
- |
||||||||
|
Heat Rejection to Exhaust |
kJ/hr (BTU/min) |
1556296 (24589) |
1439025 (22737) |
||||||||
|
Noise Level (1 m height & distance) (excludes, lntake,Exhaust & Fan) |
|||||||||||
AC Brushless Leroysomer Alternator Specification
| Alternator manufacturer | Leroy-somer Electro-technique (Fuzhou) Company Ltd. | |||||||||||
| Alternator brand | Leroysomer | |||||||||||
| Alternator model | LSA49.3S4 | |||||||||||
| Control system | SHUNT | |||||||||||
| A.V.R. | Included | |||||||||||
| Voltage regulation | ±1.0% | |||||||||||
| Insulation system | Class H | |||||||||||
| Protection | IP23 | |||||||||||
| Rated power factor | 0.8 | |||||||||||
| Winding pitch | Two thirds | |||||||||||
| Winding leads | 6 | |||||||||||
| Frequency (Hz) | 50 | |||||||||||
| Voltage (V) | 400 | |||||||||||
| Phase | 3 | |||||||||||
| Output ratings (kVA/kW) | ||||||||||||
| ----------------Cont.H-40°C | 650/528 | |||||||||||
| ----------------Standby-27°C | 726/580 | |||||||||||
| THF | <2% | |||||||||||
| TIF | <50 | |||||||||||
| Max. overspeed (Rev/Min) | 2250 | |||||||||||
| Bearing | Single | |||||||||||

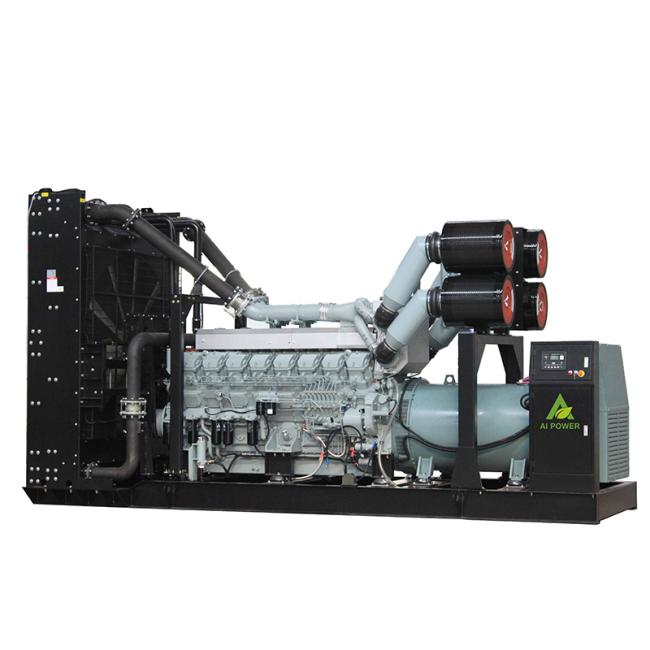

Open Type Generator Sample Photo
● Mitsubishi diesel engine couple with Leroysomer alternator, Stamford, Marathon, Meccalte for option
● Large size water cooling radiator
● Heavy duty steel base frame with 8 hours base fuel tank
● Strong anti-vibration mat
● Standard Varta brand free maintenance battery
● Charging alternator and trickle charger for battery charger
● Heavy-duty air filter, oil filter, fuel filter, fuel and water separator
● Deepsea, Smartgen, Comap controller and breaker
● Optional fuel tank, silent canopy, ATS, synchronization panels.

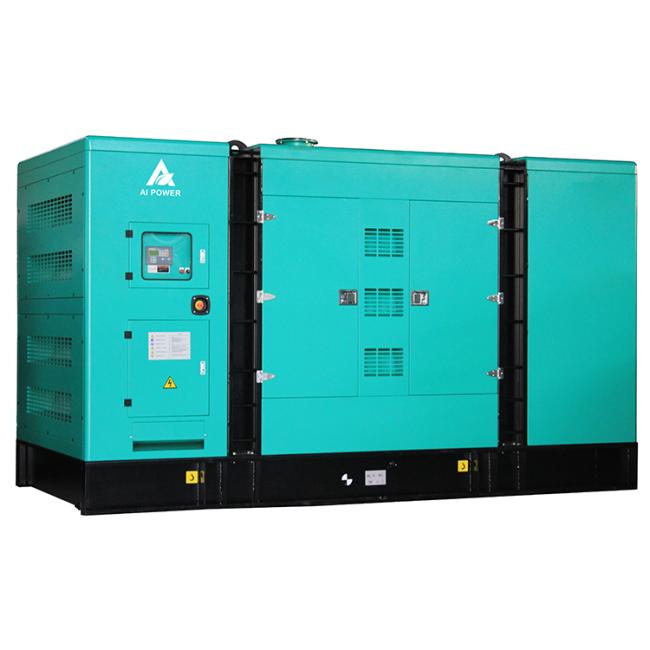

Silent Type Diesel Generator Sample Photo
● More than 2mm thick steel to make the canopy.
● High quality paint materials and strict powder paint processing.
● large-scale impedance combined type silencer effectively reducing noise of the generator.
● Stainless steel door locks and hinges and 180° revolvable and disassemble door for easy maintenance.
● High quality soundproof and insulation materials could efficiently reduce noise.
● Transparent viewing window make the control panel clear at a glance.
● Lifting ear is mounted in the base frame for easy pull.
● Elegant appearance and reliable quality.
●From 10kva to 700kva we use normal silent canopy, more than 700kva we are using containerized canopy.
● ISO standard 20', 40' and 40HQ sea container canopy for options.
● Standard sea container canopy is easier for shipping.
Control System
Controller Protection function:
- Low oil Pressure
- High water temperature
- High voltage and low voltage
- Over current
- Overspeed
- Volt adjuster and frequency adjuster.
- Emergency stop
- Low fuel alarm and shutdown
- Low coolant alarm and shutdown
Generator Factory Overview
Packing and Delivery Sample Photo
FAQ:
1.What's our power capacity range of generator?
Answer: We can offer the range from 10kva~3000kva genset, diesel generator, gas generator, marine generator.
2. Besides power generator, what's your other product?
Answer: We also provide lighting tower, air compressor, ATS, synchronization system, switchgear, transformer, engine spareparts.
3. What's kind of generator type you produce?
Answer: open generators, silent power generators, super silent genset, trailer genset, movable electric generator, reefer generator.
4.What's your warranty?
Answer: One year or 1000 hours, which one comes first.
5.Can you use our logo?
Answer: Yes, we can use customer's logo instead of ours.
6. Can you accept small order?
Answer: Yes, we can accept trial order.
7. What's your delivery time?
Answer: Our normal delivery time is 2 to 4 weeks. But if your order is some special engine and alternator, the delivery time will be longer.
