US EPA Volvo Diesel Generator Set 88kw 100 Kva Diesel Generator
US EPA certified 100kva Volvo Penta Power Generator Sets Suppliers
Ai power Volvo brand generator set adopts Sweden origin Volvo engine as the power source. It’s one of the world’s leading diesel engine manufacturers, covers power from 100kva to 700kva range, it is good structure, reliable performance, easy maintenance, low exhaust and long period maintenance. Volvo engine whole seris has emmission certificate, so it is widely used in USA and European.
Volvo 100kva Diesel Generator Specification
| Generator set model | Voltage | Hz | Phase | P.F. | Prime Power | Standby Power | ||
| (V) | KVA | KW | KVA | KW | ||||
| AV110 | 230/400 | 50 | 3 | 0.8 | 100 | 80 | 110 | 88 |
Volvo Diesel Generator Specification
| Engine manufacturer | Volvo Engines Company Limited | |||||||||||
| Engine brand | Volvo | |||||||||||
| Engine model | TAD531GE | |||||||||||
| Engine speed (rpm) | 1500 | |||||||||||
| Engine output(kWm) | ||||||||||||
| Standby Power | 98 | |||||||||||
| Prime Power | 88 | |||||||||||
| Continuous Power | TBD | |||||||||||
| No. of Cylinder | 4 | |||||||||||
| Aspiration | Turbochanger | |||||||||||
| Bore * Stroke (mm) | 108 * 130 | |||||||||||
| Displacment (litre) | 4.76 | |||||||||||
| Compression Ratio | 18:1 | |||||||||||
| Type | 4 stroke cycle , Vertical in-line, | |||||||||||
AC 400V Brushless Alternator Specification
| Alternator manufacturer | Leroy-somer Electro-technique (Fuzhou) Company Ltd. | |||||||||||
| Alternator brand | Leroysomer | |||||||||||
| Alternator model | TAL-A44-D | |||||||||||
| Control system | SHUNT | |||||||||||
| A.V.R. | Included | |||||||||||
| Voltage regulation | ±1.0% | |||||||||||
| Insulation system | Class H | |||||||||||
| Protection | IP23 | |||||||||||
| Rated power factor | 0.8 | |||||||||||
| Winding pitch | Two thirds | |||||||||||
| Winding leads | 6 | |||||||||||
| Frequency (Hz) | 50 | |||||||||||
| Voltage (V) | 400 | |||||||||||
| Phase | 3 | |||||||||||
| Output ratings (kVA/kW) | ||||||||||||
| ----------------Cont.H-40°C | 100/80 | |||||||||||
| ----------------Standby-27°C | 110/88 | |||||||||||
| THF | <2% | |||||||||||
| TIF | <50 | |||||||||||
| Max. overspeed (Rev/Min) | 2250 | |||||||||||
| Bearing | Single | |||||||||||

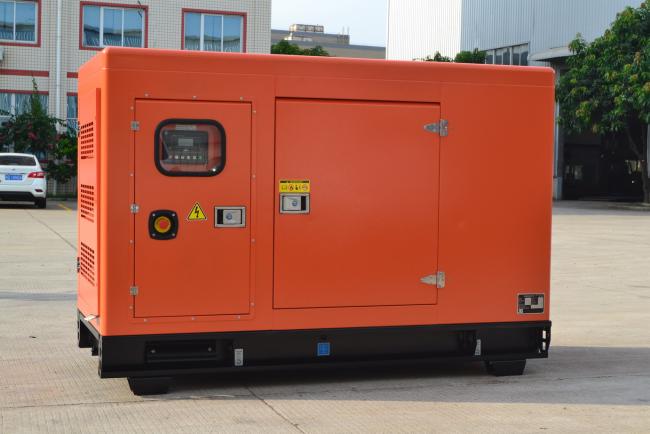

Volvo Open and Silent Diesel Generator Overview
The generator set standard configuration:
1. Assembled by Volvo diesel engine and high quality branded alternator.
2. Radiator and fan with safety guard, or heat exchanger.
3. Heavy duty steel base frame with great capacity fuel tank for options.
4. Vibration damping supports between engine/alternator and base frame.
5. Heavy duty industrial type exhaust silencer with flexible bellow.
6. High capacity sealed lead acid battery with battery cable.
7. Intelligent control panel, Deepsea or Comap brand for options.

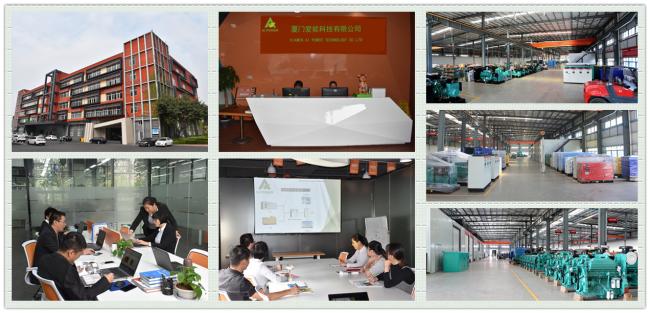

Ai Power Generator set Factory Overview
Ai Power products adopts internationally and domestically reputed high-quality engines and alternators including Cummins engine, Perkins engine, MTU from Germany, Doosan from South Korea, Mitsubishi from Japan, Volvo from Sweden, Stamford, LeroySomer, and Marathon for our industrial diesel generator sets, marine generator, movable generator, lighting towers, generator spare parts. Those products are featured by personalization, intelligence, environmental protection and high quality. They are widely used in buildings, hospitals, banks, mine, ports, construction, data center, power station and high voltage projects.
Ai Power Generator Set Packing and Delivery
Our generator set is deliveried by sea, some generator spare parts and ATS can be deliveried by air, our standard packing of the generator is foam and film package, when it is loading into container, it will be fixed to the container base and rings.
Ai Power Generator Certificate
