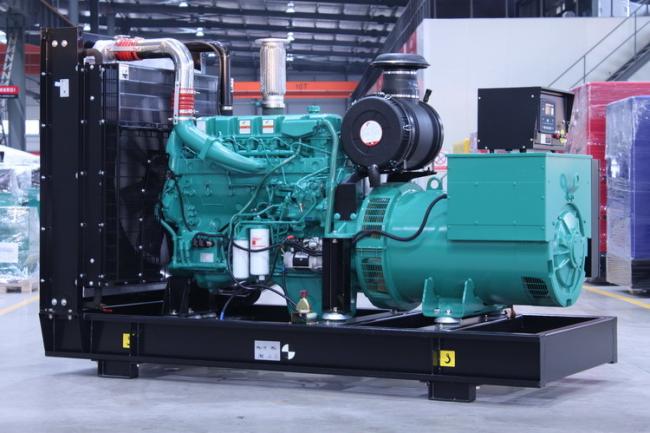

Heavy Duty 380 KVA Super Silent Cummins Diesel Generator Set 300KW NTAA855-G7
Cummins Industrial Heavy Duty 300KW Engine NTAA855-G7 Gen Power Diesel Generator Set
All aspects of generator set design, manufacturing and service have been brought together in one company. All the major components – the engine, alternator, control systems and containers – are manufactured and built by Cummins. This integrated approach means each element of a generator set is matched to work in harmony from the start.
Regardless of the power system architecture required to meet your market or application needs Cummins provides a superior combination of solution design expertise, integrated equipment and communication software as well as ongoing operation and maintenance services to help you maintain a resilient operation at your site.
Generator Specifications:
Powered by Cummins engine
| Engine Model | NTAA855-G7 |
| Number of Cylinders | 6 cylinders in line |
| Cycle | 4 stroke |
| Air Intake system | Turbocharged |
| Bore×Stroke | 140mm x 152mm |
| Displacement | 14L |
| Compression ratio | 14.0:1 |
| Prime Power/Speed | 343kw / 1500rpm |
| Standby Power/Speed | 377kw / 1500rpm |
| Speed Governor | Electrical |
| Cooling System | Forced water cooling cycle |
| Steady speed droop | ≤1% |
| Total lubrication system capacity | 38.6L |
| Coolant capacity (engine only) | 20.8L |
| Fuel Consumption at 100% Load | 85.4L/h |
| Starter Motor | DC24V, |
| Alternator | DC24V |
Alternator Spec
| Alternator Model | HCI444FS |
| Prime power | 380KVA |
| Frequency/speed | 50HZ/1500rpm |
| Exciter type | Brushless |
| Power factor | 0.8 |
| Voltage adjust range | ≥5% |
| Voltage regulation NL-FL | ±0.5% |
| Insulation Grade | H |
| Protection Grade | IP23 |
| Phase | Three phases |
Product Details
- High performance motor-starting capability for heavy loads
- Digitally controlled pump flow for minimal voltage and frequency variation.
- Meets full load capability at 120° F (50° C) ambient conditions
- 4-point mounting system Designed to provide clean, quiet power with low vibration
- Powder coated and stainless steel housings
- Easy, single-side serviceability minimizes compartment space requirements
- Multiple air inlet locations for flexible installation and compact size offering several mounting options
A: Yes, we can accept trial order, it is the starting of business. But according to different product the price may be higher as normal quantity.
2. What is your company product range?
A: We are a professional turbocharger supplier, OEM and ODM are welcome.
3. Do you inspect the product? How?
A: Yes, each step of production and finished products will be carried out inspection by QC before shipping.
4. What is your payment terms?
A: T/T 30% advance payment, the balance 70% shall be paid before shipment, L/C at sight.
