3 Cylinder 66kva Perkins Diesel Generator Set 60 Kva 100KVA 150KVA 200KVA Prime Power
Prime Power AI Power 60kva 65KVA 48KW Displacement Generator Machine In China IP23 Degree
Perkins 1103 range of electric power engines provides cost effective power solutions for prime and standby generation. The engines also meet up to EU Stage IIIA/U.S. EPA Tier 3 equivalent emission standards. The compact 3 cylinder, 3.3 litre engines feature exceptional performance criteria in fuel economy for prime power applications and high load acceptance for standby installations.
Features and benefits
Output Ratings
| Generator set model | Voltage | Hz | Phase | P.F. | Prime Power | Standby Power | ||
| (V) | KVA | KW | KVA | KW | ||||
| AP33 | 230/400 | 50 | 3 | 0.8 | 60 | 48 | 66 | 52 |
Perkins Engine 1103A-33TG2 Model Specification
| Engine manufacture | Perkins Engines Company Limited | |||||||||||
| Engine brand | Perkins | |||||||||||
| Engine model | 1103A-33TG2 | |||||||||||
| Engine speed (rpm) | 1500 | |||||||||||
| Prime power | Standby power | |||||||||||
| Gross engine power (kWb) | 60 | 66 | ||||||||||
| Typical Genset electrical output 0.8pf 25ºC (100 kPa) (KW) | 48 | 52.8 | ||||||||||
| Cylinders | 3-cylinder, vertical in line | |||||||||||
| Cycle | 4 stroke | |||||||||||
| Induction system | Naturally Aspriated | |||||||||||
| Combustion system | Direcct injection | |||||||||||
| Compression ratio | 17.25:1 | |||||||||||
| Bore * Stroke (mm) | 105*127 | |||||||||||
| Cubic capacity (Litre) | 3.3 | |||||||||||
Low Fuel Consumption
| Type of injection | direct | |||||||||||
| Governor type | Mechanical | |||||||||||
| Fuel Consumption (litre/hour) | ||||||||||||
| 110% | 15.9 | |||||||||||
| 100% | 14.6 | |||||||||||
| 75% | 10.8 | |||||||||||
| 50% | 7.56 | |||||||||||
| 25% | 4.2 | |||||||||||

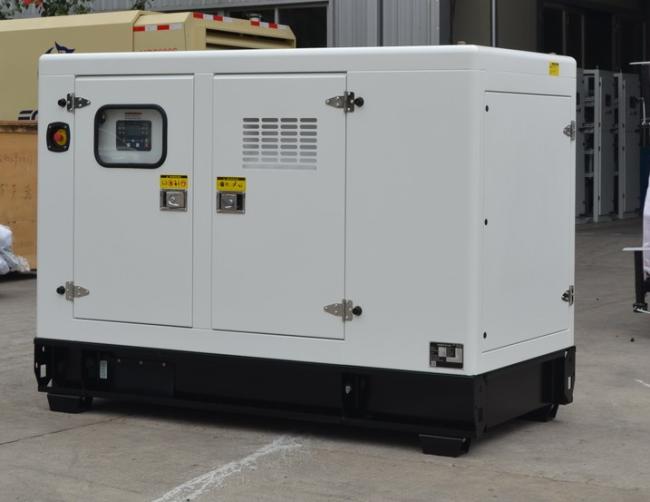

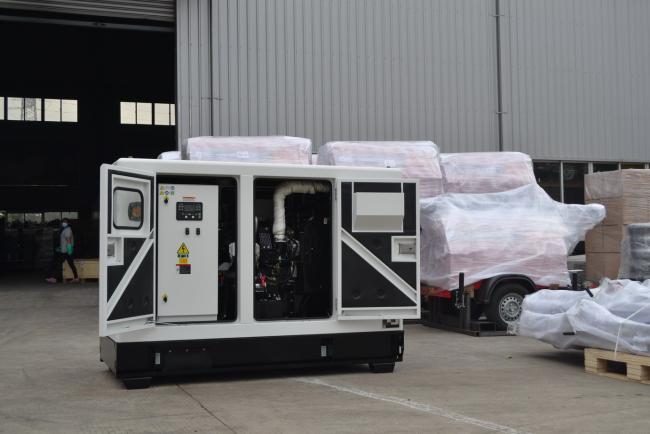

Perkins Diesel Generator Set 48KW/60KVA 1103A-33TG2 Photos
WE EAT, SLEEP AND BREATHE QUALITY.
Every Generator Set is meticulously quality-tested start to finish. Our engineering team Test Every Generator Set Before Shipment Everything’s examined — down to the bolt.
Once the engine design passes our inspection, it’s ready for production. But before it leaves our factory, we put it through the paces one more time. The result is total reliability.
FAQ:
What is the displacement of the Perkins 1103A-33TG2 diesel engine?
The engine makes use of a turbocharger and requires 8.3 litres of oil for lubrication, 10.2 litres of coolant for the water cooled cooling system and a total displacement of 3.3L.
