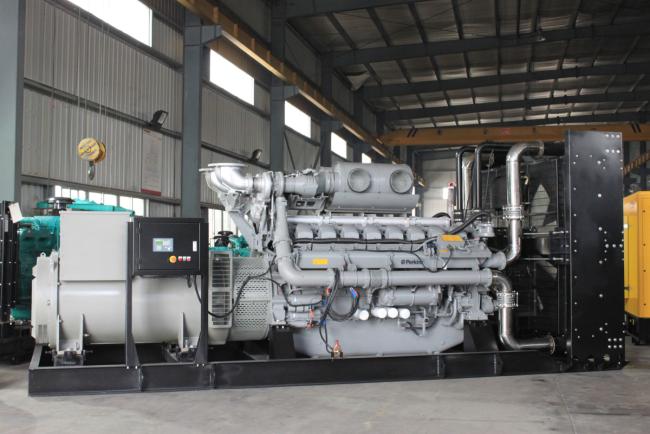

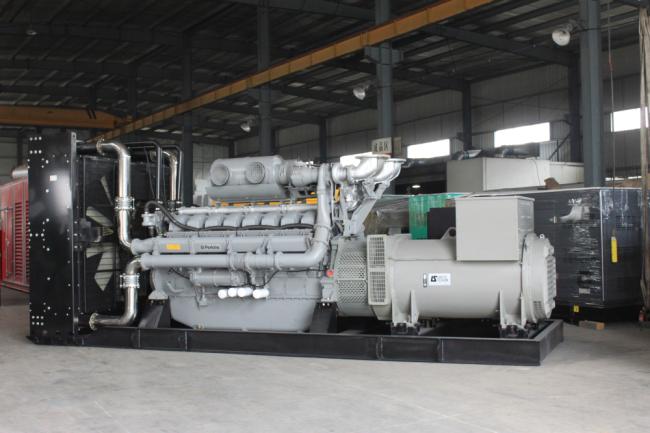

2000kva Perkins Diesel Generator Set 16 Cylinder
Electrical Governor 2000kva 4016 Series Perkins Diesel Generator Diesel 16 Cylinder
British Perkins (Perkins) Engine Company is a world-renowned engine manufacturing company. The company was founded in 1932. It was the first Perkins diesel engine produced by entrepreneur and engineer Frank Perkins at the plant in Petebo, England. In the 1990s, it acquired another famous international brand, Rolls Royce (Rolls-Royce), and now the company has an annual output of 300,000 engines, with three global production bases and more than 4,000 after-sales services distributed around the world. The network has produced more than 15 million engines.
Output Ratings
Phase Rating, 50Hz, PF 0,8
| Voltage | Standby Rating (ESP) | Prime Rating (PRP) | ||
|---|---|---|---|---|
| kVA | kW | kVA | kW | |
| 400/230 | 2250 | 1760 | 2000 | 1600 |
Diesel Engine Specifications
Powered by UK engine 2000kva super silent diesel generator price with 4016TAG2A
| Number of cylinders | 16 60º Vee form |
| Bore and stroke | 160 x 190 mm |
| Displacement | 61.123 litres |
| Aspiration | Turbocharged and air to air charge cooled |
| Cycle | 4 stroke |
| Combustion system | Direct injection |
| Compression ratio | 13.6:1 |
| Rotation | Anti-clockwise, viewed from flywheel end |
| Total lubricating capacity | 237.2 litres |
| Cooling system | Water-cooled |
| Total coolant capacity | 95 litres/25 US gal |
Alternator Specifications
| lternator brand | Leroy Somer,Stamford, Marathon, Mecc-alte, Copy stamford |
| Prime power | 2000kva |
| Frequency/speed | 50HZ |
| Exciter type | Brushless |
| Power factor | 0.8 |
| Voltage adjust range | ≥5% |
| Voltage regulation NL-FL | ±0.5% |
| Insulation Grade | H |
| Protection Grade | IP23 |
2250kva diesel generator (Control panel)
| Alternator manufacturer | Leroy-somer Electro-technique (Fuzhou) Company Ltd. | |||||||||||
| Alternator brand | Leroysomer | |||||||||||
| Alternator model | LSA52.3S6 | |||||||||||
| Control system | AREP | |||||||||||
| A.V.R. | Included | |||||||||||
| Voltage regulation | ±1.0% | |||||||||||
| Insulation system | Class H | |||||||||||
| Protection | IP23 | |||||||||||
| Rated power factor | 0.8 | |||||||||||
| Winding pitch | Two thirds | |||||||||||
| Winding leads | 6 | |||||||||||
| Frequency (Hz) | 50 | |||||||||||
| Voltage (V) | 400 | |||||||||||
| Phase | 3 | |||||||||||
| Output ratings (kVA/kW) | ||||||||||||
| ----------------Cont.H-40°C | 2000/1600 | |||||||||||
| ----------------Standby-27°C | 2255/1804 | |||||||||||
| THF | <2% | |||||||||||
| TIF | <50 | |||||||||||
| Max. overspeed (Rev/Min) | 2250 | |||||||||||
| Bearing | Single | |||||||||||
FAQ:
- Q1: Your company is factory or trade company?
A1: We are professional diesel generator set manufacturer, focus on genset manufacturing since 1982. .
Q2: Your diesel generator power range?
A2: Now we mainly produce 6-3000kW generator.
Q3: Which brand electrical generator you produce?
A3: Now we produce USA brand Cummins engines, UK brand Perkins engines, and China local brand’s engines.
Q4: Where is your main market?
A4: Exported to Southeast Asia, the Middle East, Africa, Europe, the Americas and other regions. For each customer, the different needs of each project, we provide technical support for the system to seek the best solution.
