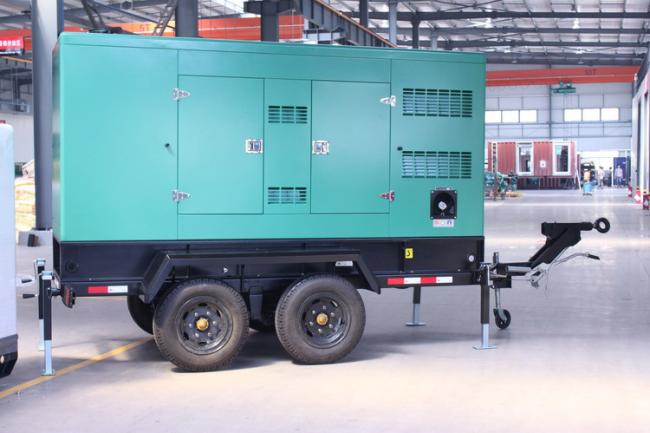

120kw 150kVA Liquid Cooled Portable Generator 3 Phase Power Generator R6105BZLDS
120kw 150kVA Silent Kofo Ricardo Engine Portable Diesel Genset With CE Approval
Kofo Ricardo Engine
Ricardo diesel engine is basic on the introduction of foreign(Ricardo Britain) advanced diesel engine technology and developed which is characterized by economical fuel consumption,low noise,powerful,stable operation and reliable performance.
Main specification
- 3-Phase, 50Hz@1500RPM, 400/230V (Also Can Be Made According To Customers’ Special Requirements)
- 12V/24V DC start motor and storage battery
- Brushless, Self-excited, IP23, insulation class H alternator
- 40°C radiator as standard, 50°C is optional
- Key start panel control system as standard, digital auto-start panel is optional
- All generator sets are gone through rigorous testing before being released to the market place, including 50% load, 75% load, 100% load, 110% load and all protection function (overspeed stop, high water temperature, low oil pressure, battery charging fail, emergency stop)
Engine Specifications:
| Manufacturer | Shangdong Kofo Power Co.,Ltd. |
| Model | R6105BZLDS |
| Engine speed | 1500rpm |
| Rated output | 132kW |
| Type | 4 stroke , Vertical in-line, 6 cylinder |
| Aspiration | Turbo & Inter Cooler |
| Bore * Stroke | 105*135mm |
| Displacement | 7.01 litres |
| Compression ratio | 16:1 |
| Fuel consumption rate | ≤231 g/kW.h |
|
Alternator manufacturer |
Xiamen Ai Power Technology Co., Ltd. |
|||||||||||
|
Alternator brand |
AI POWER |
|||||||||||
|
Alternator model |
AI274EC |
|||||||||||
|
Control system |
SELF EXCITED |
|||||||||||
|
A.V.R. |
Included |
|||||||||||
|
Voltage regulation |
±1.0% |
|||||||||||
|
Insulation system |
Class H |
|||||||||||
|
Protection |
IP23 |
|||||||||||
|
Rated power factor |
0.8 |
|||||||||||
|
Winding pitch |
Two thirds |
|||||||||||
|
Winding leads |
12 |
|||||||||||
|
Frequency (Hz) |
50 |
|||||||||||
|
Voltage (V) |
400 |
|||||||||||
|
Phase |
3 |
|||||||||||
|
Output ratings (kVA/kW) |
|
|||||||||||
|
----------------Cont.H-40°C |
150/120 |
|||||||||||
|
----------------Standby-27°C |
165/132 |
|||||||||||
|
THF |
<5% |
|||||||||||
|
TIF |
<50 |
|||||||||||
|
Max. overspeed (Rev/Min) |
2250 |
|||||||||||
|
Bearing |
Single |
|||||||||||
Digital Control Panel
Controller Brand: Smartgen, Deepsea,ComAp
Control Panel: English interface,LED screen and touch buttons.
Main Functions:
- Display loading power, voltage, currenct, frequency, speed, temperature, oil pressure, running time etc.
- Warning when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc.
- Over load protection, over/under frequency protection, over/under/imbalance voltage protection, and low oil shutdown
Accessories
- Standard accessories: Standard 40 radiator mounted on skid, Common steel frame, circuit breaker, damper, exhaust silencer, flexible pipe, battery and connecting wires, Standard tools kit, operation manual and document.
- Optional accessories: Engine coolant and oil heater, alternator space heater, cooling for heat exchanger, communication interface, battery charger by main supply, daily fuel tank, ATS and paralleling system, soundproof canopy and moving trailer.
Factory Overviews
FAQ
1.Are you a factory or trading company?
2.What is the material of your products?
A: Iron, Steel, plastic, etc.
3.How about quality control in your factory?
A: AI people are always paying great attentions to quality controlling from the beginning to the end.
4.How about your guarantee?
A: Our warranty period is 1 year or 1000 running hours, whichever comes first.
