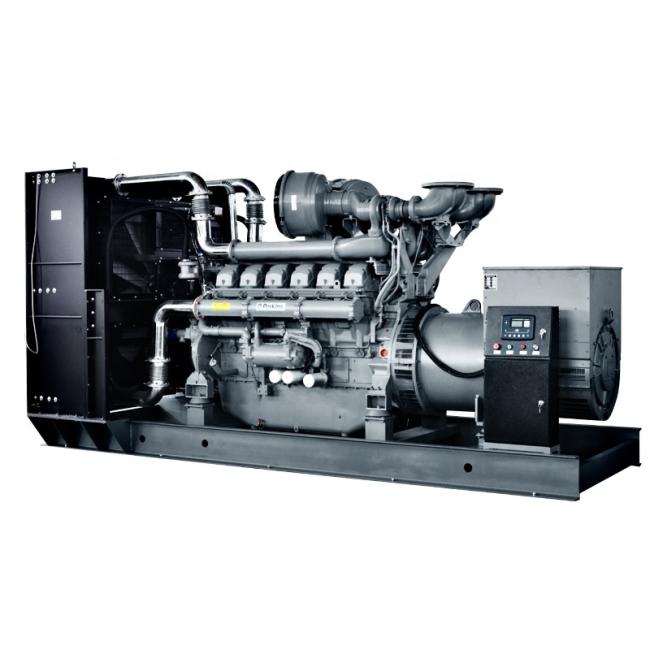

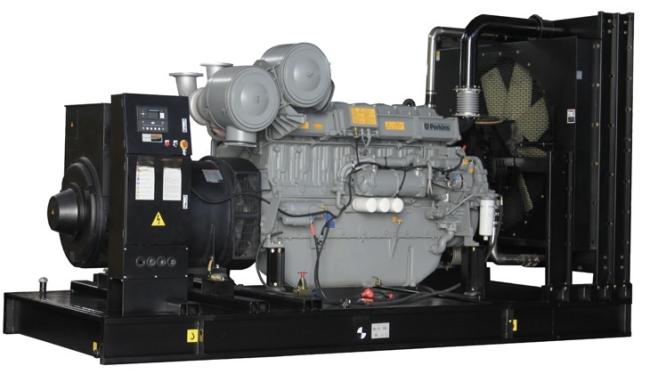

50HZ Marine Perkins Diesel Generator Set 1250kva Marine Generator 4008-30TAG3
50HZ 1500RPM Three Phase 1000kw 1250kva Perkins Diesel Motors Electric Backup Generator
| Number of cylinders |
8 vertical in-line
|
| Bore and stroke | 160 x 190 mm |
| Displacement | 30.561 litres |
| Aspiration | Turbocharged and air to air charge cooled |
| Cycle | 4 stroke |
| Combustion system | Direct injection |
| Compression ratio | 13.6:1 |
| Rotation | Anti-clockwise, viewed from flywheel end |
| Total lubricating capacity | 153 litres |
| Cooling system | Water-cooled |
| Total coolant capacity | 48 litres |
Alternator Specs
Control panel:900 kw diesel generator
| Brand | Deepsea/ComAp/Smartgen |
|
The control module gives digital readouts of: Generator voltage; Output frequency; Engine speed; Battery voltage; Engine hours run. The control module has indicators for failure information: Overspeed/underspeed, Emergency stop Low oil pressure; High water temperature Failure to start Battery charger failure Automatic shutdown occurs under: Low engine oil pressure; High engine water temperature; Overspeed/underspeed; Failure to start after three attempts. |
|
Optional-addtional parts :900 kw diesel generator price
| Engine | Fuel System | Cooling system | Exhaust system |
|
Coolant Heater Lube oil heater Electronic governor Engine oil temperature |
External Tank Water Separator |
50-60 Radiator, Remote radiator Cooling tower |
Heavy Duty air filter Silencer Enclosures |
| Alternator | Control System | Others | Voltage Connections |
|
Anti Condensation Heater Permanent Magnet Generator-PMG Drop CT-for paralleling |
Remote Control Panel Auto Transfer Switch ATS-Control Panel Paralleling System Electricity Output Cabinet |

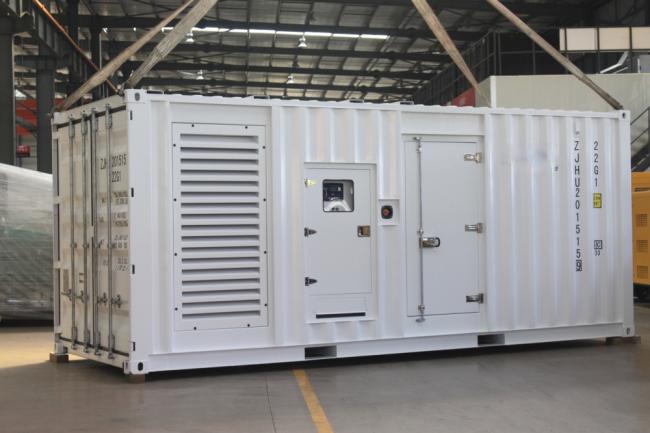

Rainproof Type Soundproof Type Containerized Type Trailer Type Spare Parts |
480/277V 440/254V 416/240V 400/230V 380/220V 240/139V 220/12 V 208/120V |
| High Voltage of 6.3kv, 6.6kv, 10.5kv, 13.8kv etc are available | |||
AI Power Factory Introduction
High quality, reliable and complete power unit
Compact design
Easy start and maintenance possibility
Every generating set is subject to a comprehensive test program which includes full load testing, checking and provision of all control and safety shut down functions testing
Fully engineered with a wide range of options and accessories: Canopy, sound proof canopy and on - road trailer
