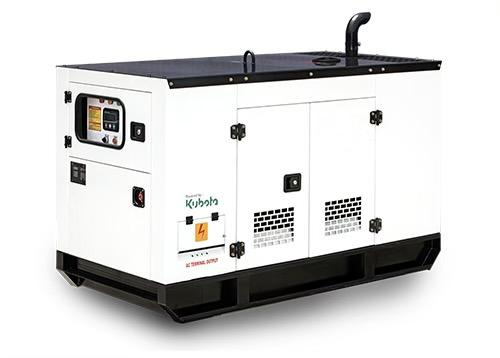

Super Silent Inverter Kubota Diesel Generator 11KW 14KVA D1703
Original Japan Kubota Small Diesel Generator Set Quiet Electric Power Generators 11KW 14KVA
Today, engine selection should include the engine manufacturer's know-how as well as the engine itself. That is to say, you need comprehensive ability not just to produce high quality and reliable engines, but the strength to move your business ahead and to keep youcompetitive.
Start your designs with Kubota's "TOUGH STUFF".
Give your customers ; virtually trouble free performance for their TOUGH jobs!
A world leader in Industrial Engine Technology,KUBOTA "Tough Stuff'
Kubota's longstanding dedication and commitment to research and development has earned us a reputation worldwide as a manufacturer of top quality industrial engines. One of Kubota's major concerns has always been the development of "High Power Density", "High Power Quality" engines with absolute "Reliability" to meet your demands.
Our long technical experience, untiring research, and state of the art manufacturing
technology led to the creation of KUBOTA "Tough Stuff".
| Engine model | D1703 |
| Emission regulation | - |
| Type | Vertical, water cooled 4-cycle diesel engine |
| Cylinders | |
| Bore and strokemm (in) | 87.0 x 92.4 (3.43 x 3.64) |
| DisplacementL (cu.in) | 1.647 (100.5) |
| Aspiration | Naturally aspirated |
| Aftertreatment | - |
| Stand-by output / speed*1kW (HP) / rpm | 15.0 (20.1) / 1500 |
| Continuous output / speed*2kW (HP) / rpm | 12.8 (17.2) / 1500 |
| Combustion system | Indirect injection |
| Fuel system | In-line pump |
| Length x Width x Height*3 without aftertreatment unit) | 574 x 481 x 643 (22.6 x 18.9 x 25.3) |
| Length x Width x Height*4 Dry weight kg (lb) | 170 (374) |
| Alternator Manufacturer | Cummins Generator Technolgoies | |
| Alternator Model | PI 144 D | |
| Alternator Brand | Stamford | |
| Rate Output | kVA | 20 |
| Frequency | Hz | 50Hz |
| Altitude | M | ≤1000 |
| Insulation | Class H | |
| Protection Grade | IP23 | |
| Alternator for choice | We also have Leroy Somer, Marathon, Mecc Alte and Chinese brand Brushless alternator for your choice. | |
| PART NAME PART NUMBER Q'ty DESCRIPTION | |
| Crank Case | 1E013-0112 |
| Oil Pan 15434-0161 | Depth 90mm |
| Gear Case,Assy 17182-0401 | Inlet Side |
| Water Pump Assy. | 1E017-7303 |
| Inlet Manifold 1G624-1176 | Refer to Dimensions Drawing |
| Exhaust Manifold 1E013-1231 | Refer to Dimensions Drawing |
| Head Cover Assy. 15434-1451 | Open Breather Type |
| Flywheel 17158-2511 | SAE 7-1/2 (Short) |
| Flywheel Housing 17158-0461 | SAE 4 (Short) |
| Oil Filter Cartridge 16414-3243 | φ93×L85 |
| Oil Gauge 1G622-3641 | 1 Inlet side |
| Oil Gauge Guide 17456-3642 | Short oil gauge guide |
| Starter 17381-6301 1 | 12V - 1.4kW |
| Alternator 34070-7560 1 | 12V - 40A |
| Glow Plug 19077-6551 Quick Heating Type | DC 11V |
RFQ
Our Advantage
1. Multi-Brand Controllers are Available
2. Thick and Hard Silent Canopy
3. Various types of Trailer on 2 wheels,4 wheels,8 wheels
4. 100% Cooper brushless Alternator
4. Multi-Brands engine to Choose
