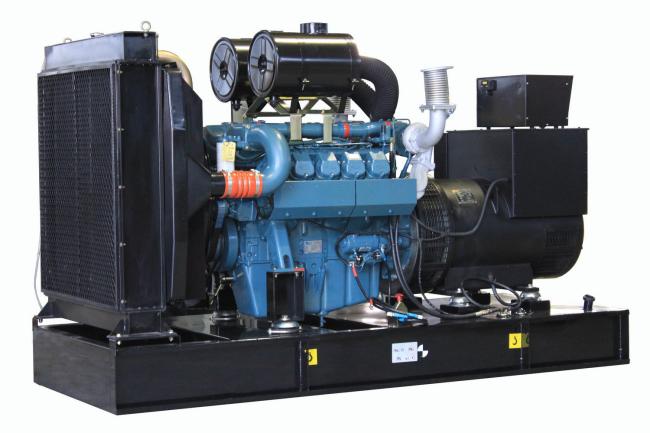

280kw Prime Power Doosan Diesel Generator 350kva DP126LB
Doosan Engine DP126LB Electric Generator Suppliers 280kw 350kva Prime Power Generator
! Cooling system with large size radiator and expansion tank
! Heavy- duty chassis
! Built-in insulation and anti-vibration block
! Free-maintenance battery
! AC alternator for battery charger
! Battery charger
! Cable and bracket for battery
! Battery isolation switch
! Main circuit breaker
! Automatic start control system
! Fuel_ Water separator
! Fuel level sensor
! Oil sump pump
! Full load test
! Comprehensive security protection
! Emergency stop button
| Diesel generator Details | |
| Model | A280 |
| Power | 280kw/350kva |
| Frequency | 50Hz |
| Voltage | 400/230v(voltage can be customized) |
| Optional Type | Open/soundproof/trailer |
| Size of Open type | 3600*1400*2200mm |
| Weight of Open type | 4000kg |
| With Diesel Engine | |
| Brand&model | With Korea Doosan DP126LB |
| Standby Power | 362kw |
| Cylinders | 6 in line arrangement |
| Bore*Stroke | 128*142mm |
| Displacement | 16.618L |
| Lubrication Oil Capacity | 21L |
| Fuel Consumption at 100% Load | 78.7L/H |
| Speed Governor | Electrical |
| With Alternator | |
| Optional Brands | Stamford/Leroy Somer/Mecc Alte/Marathon |
| Exciter type | Single bearing,brushless,Self-excited |
| Power factor | 0.8 |
| Voltage adjust range | ≥5% |
| Insulation Grade | H |
| Protection Grade | IP23 |
| With Controller | |
| Optional brands | Deepsea/ComAp/Smartgen |
Power standards The engine performance corresponds to ISO 3046, BS 5514 and DIN 6271. The technical data applies to an engine without cooling fan and operating on a fuel with calorific value of 42.7 MJ / kg (18360 BTU/lb) and a density of 0.84 kg/liter (7.01 lb/US gal), also where this involves a deviation from the standards. Power output guaranteed within 0 to +2% att rated ambient conditions at delivery. Ratings are based on ISO 8528. Engine speed governing in accordance with ISO 8528-5.
