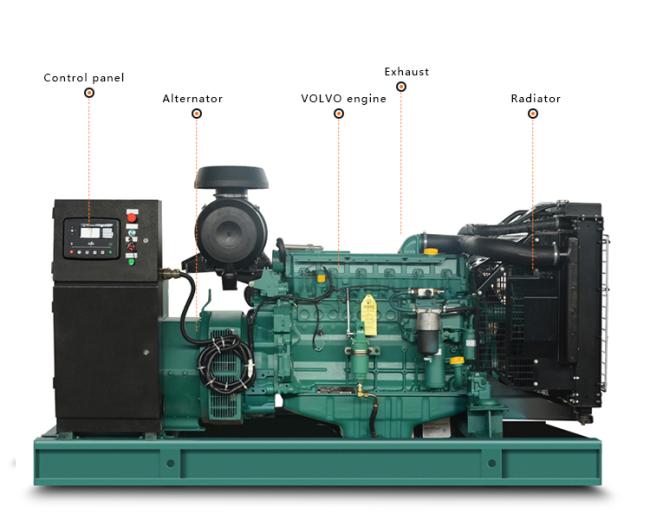

TAD733GE Volvo Diesel Generator Set
Industrial Diesel Generator Diesel Driven Generator TAD733GE 160kw 200kva Standby Generators
No. of cylinders: 6 – Displacement: 7.15l – Layout: inline – Min. Power: 176kW – max. Power: 194kW – RPM: 1500
- No. of cylinders 6
- Displacement 7.15 l
- Layout inline
- Min. Power 176 kW
- max. Power 194 kW
- RPM1500
- Tier Max.EU II
- Aspiration N
- Weight 900 kg
- Type of cooling w
- Bore108 mm
- Stroke130 mm
| Model | Voltage | HZ |
P.F (COS) |
Standby Power | Prime power |
| AI-V160GF | 380/220V(adjustable) | 50 | 0.8 | 176KW | 160KW |
Powered by engine TAD733GE Volvo 200kva generator
| Engine Model | TAD733GE |
| Number of Cylinders | 6 cylinders, Vertical in line |
| Cycle | 4 stroke |
| Aspiration | Turbocharged |
| Bore×Stroke | 108mm x130mm |
| Displacement | 7.15 |
| Compression ratio | 18:1 |
| Prime Power/Speed | 175KW / 1500rpm |
| Standby Power/Speed | 195KW / 1500rpm |
| Speed Governor | electrical |
| Cooling System | Forced water cooling cycle |
| Steady speed droop | ≤1% |
| Total lubrication system capacity | 34L |
| Fuel Consumption at 100% Load | 216g/kw.h |
| Starter Motor | DC24V, |
| Alternator | DC24V |
Coupled with Stamford alternator (enjoy 3 years' worldwide warranty) 200kva diesel generator
| Alternator brand | Stamford |
| Alternator model | UCI274H |
| Prime power | 160KW |
| Frequency/speed | 50Hz/1500rpm |
| Exciter type | Single bearing, Brushless, Self-excited |
| Power factor | 0.8 |
| Voltage adjust range | ≥5% |
| Voltage regulation NL-FL | ≤±1% |
| Insulation Grade | H |
| Protection Grade | IP23 |
Prime power
This rating is for the supply of continuous electrical power (at variable load). There is no limit on the annual hours of operation and 10% overload power can be supplied for 1 hour in 12.
Standby power
This rating is for the supply of continuous electrical power (at variable load) in the event of a utility power failure. No overload is permitted.
General features:
Every generator set is subjected to a comprehensive test program which includes 50% load, 75% load,100% load, 110% load and the checking and proving of all control and safety shut-down functions;
24V DC start motor;
Equipped 24V high performance maintenance-free lead-acid starting batteries and connecting with cables;
Equipped with industrial silencer and flexible exhaust hose;
Designed to Comply with ISO8528/GB2820;
Powered by Volvo engine, Stamford alternator and DeepSea/ComAp/SmartGen control panel
