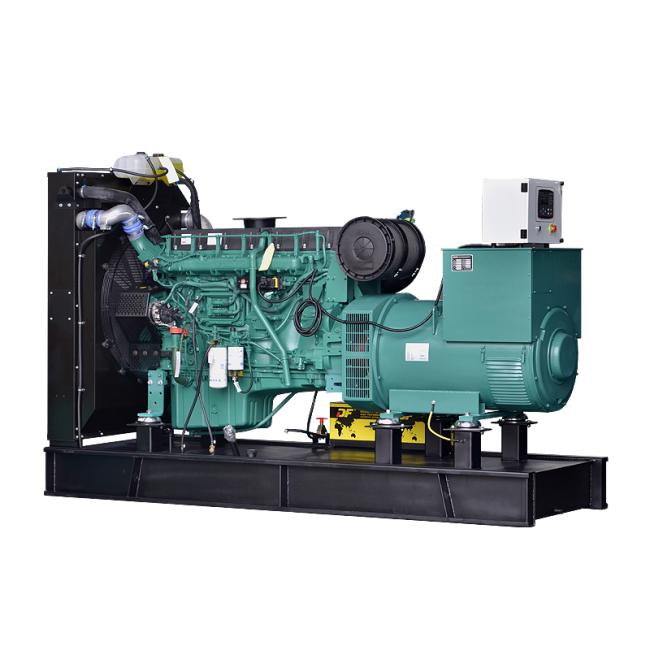

Sweden 3 Phase 50HZ Volvo Penta Generator 85kva TAD530GE
Sweden Volvo Penta Open Type 85kva Price Of Diesel Generator Net Power Generater Plant With TAD530GE
Power Standards
The engine performance corresponds to ISO 3046, BS 5514 and DIN 6271. The technical data applies to an engine without cooling fan and operating on a fuel with calorific value of 42.7 MJ /kg (18360 BTU/lb) and a density of 0.84 kg/liter (7.01 lb/US gal), also where this involves a deviation from the standards. Power output guaranteed within 0 to +2% att rated ambient conditions at delivery. Ratings are based on ISO 8528. Engine speed governing in accordance with ISO 3046/IV, class A1 and ISO 8528-5 class G3 Exhaust emissions The engine complies with Tier 2 and TA-luft exhaust emission regulations.
|
Unit Type
|
FFDL68GF
|
|
Power
|
85KVA/68KW
|
|
Engine Model
|
TAD530GE
|
|
CyI.
|
4L
|
|
Bore/stroke(mm)
|
108/130
|
|
Fuel consumption(g/kwh)
|
213
|
|
Size(mm)
|
2080*720*1450
|
|
Weight
|
1090
|
| Genset Technical Data | |
| Genset Model | WP-V80GF |
| Rated Voltage | 110-600V(Can be adjusted) |
| Rated Frequency | 50HZ |
| P.F(COS) | 0.8 |
| Prime Power | 72KW |
| Standby Power | 80KW |
| Volvo Engine Data | |
| Engine Model | TAD530GE |
| Number of Cylinders | 4 |
| Aspiration | Turbocharged |
| Bore×Stroke | 108mm x130mm |
| Displacement | 4.76L |
| Prime Power/Speed | 76KW / 1500rpm |
| Standby Power/Speed | 89KW / 1500rpm |
| Speed Governor | Electrical |
| Cooling System | Forced water cooling cycle |
| Alternator Data | |
| Optional brands | Stamford/Leroy Somer/Marathon |
| Prime power | 80KW |
| Frequency/speed | 50Hz/1500rpm |
| Exciter type | Brushless, Self-excited |
| Power factor | 0.8 |
| Voltage adjust range | ≥5% |
| Voltage regulation NL-FL | ≤±1% |
| Insulation Grade | H |
| Protection Grade | IP23 |
----------------------DELIVERY&PACKING INFORMATION-------------------
1.Q: What is your MOQ of this item?
A:1 Set
2.Q: What is the lead time?
A:7 working days after received the 30%T/T deposit
3.Q: Is it all right to make customer's own brand name?
A:We can be your OEM manufacture with your authorization of brand.
4.Q: Where is your Loading Port?
A:Shanghai or others
5.Q: What are your payment terms?
A:30% TT as deposit,70% TT before Shipment.
6.Q: What is your company's available production capacity?
A:100 Sets per month
7.Q:What's the warranty time of diesel generators?
A:12 Months or 1000 working hours
