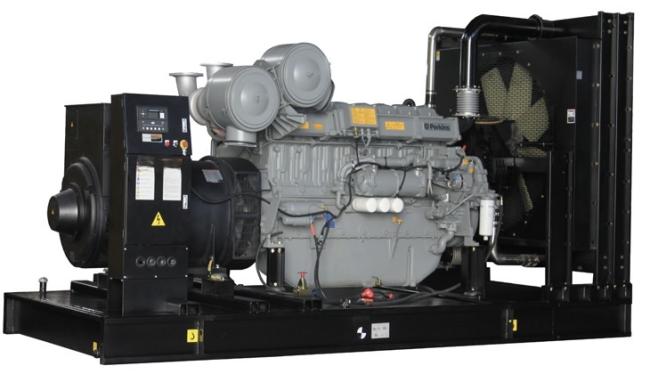

728kw 900kva Perkins Silent Diesel Powered Portable Generator 4008TAG1A
Emergency Diesel Generator In Power Plant Perkins Generator Manufacturer In The World 4008TAG1A
Standard Configuration
• Engine include air,fuel,oil filters, starting motor and charge alternator etc.
• Brushless AC alternator,single bearing, flange connection, w/AVR
• Radiator with engine driven fan mounted on skid
• Channel steel base frame, <550KW base 8hrs mounted fuel tank as standard
• Anti-vibration pads between engine/alternator and base frame
• Circuit breaker 3P as standard, 4P optional
• Auto control panel
• Start battery w/ connecting cable and floating battery charger
• Flexbile pipe, exhaust elbow, industrial silencer etc.
• Standard tools kit
• Electric drawing, test report ,operation & maintaince manual of generator etc.
•Optional soundproof/Container canopy, ATS cabinet, remote control panel, synchronization panel, movable trailers, heat exchanger, remote horizontal water tank system, external fuel tank, etc
Output Ratings
| Generator set model | Voltage | Hz | Phase | P.F. | Prime Power | Standby Power | ||
| (V) | KVA | KW | KVA | KW | ||||
| AP1000 | 230/400 | 50 | 3 | 0.8 | 900 | 720 | 1000 | 800 |
GENERAL ENGINE DATA
| Engine manufacture | Perkins Engines Company Limited | |||||||||||
| Engine brand | Perkins | |||||||||||
| Engine model | 4008TAG1A | |||||||||||
| Engine speed (rpm) | 1500 | |||||||||||
| Baseload power | Prime power | Standby power | ||||||||||
| Gross engine power (kWb) | 644 | 805 | 882 | |||||||||
| Typical Genset electrical output 0.8pf 25ºC (100 kPa) (KW) | 586 | 739 | 812 | |||||||||
| Cylinders | 8-cylinder, in line | |||||||||||
| Cycle | 4 stroke | |||||||||||
| Induction system | Turbocharged | |||||||||||
| Combustion system | Direct injection | |||||||||||
| Compression ratio | 13.6:1 | |||||||||||
| Bore * Stroke (mm) | 160 * 190 | |||||||||||
| Cubic capacity (Litre) | 30.561 | |||||||||||
| FUEL SYSTEM | ||||||||||||
| Injection system | Direct | |||||||||||
| Governor type | electronic | |||||||||||
| Fuel Consumption (litre/hour) | ||||||||||||
| Standby | 218 | |||||||||||
| Prime | 195 | |||||||||||
| Baseload | 154 | |||||||||||
| 75% output power | 143 | |||||||||||
| 50% output power | 98 | |||||||||||
| 25% output power | 52 | |||||||||||
Optional-addtional parts :800 kw diesel generator price
| Engine | Fuel System | Cooling system | Exhaust system |
|
Coolant Heater Lube oil heater Electronic governor Engine oil temperature |
External Tank Water Separator |
50-60 Radiator, Remote radiator Cooling tower |
Heavy Duty air filter Silencer Enclosures |
| Alternator | Control System | Others | Voltage Connections |
|
Anti Condensation Heater Permanent Magnet Generator-PMG Drop CT-for paralleling |
Remote Control Panel Auto Transfer Switch ATS-Control Panel Paralleling System Electricity Output Cabinet |
Rainproof Type Soundproof Type Containerized Type Trailer Type Spare Parts |
480/277V 440/254V 416/240V 400/230V 380/220V 240/139V 220/12 V 208/120V |
| High Voltage of 6.3kv, 6.6kv, 10.5kv, 13.8kv etc are available | |||

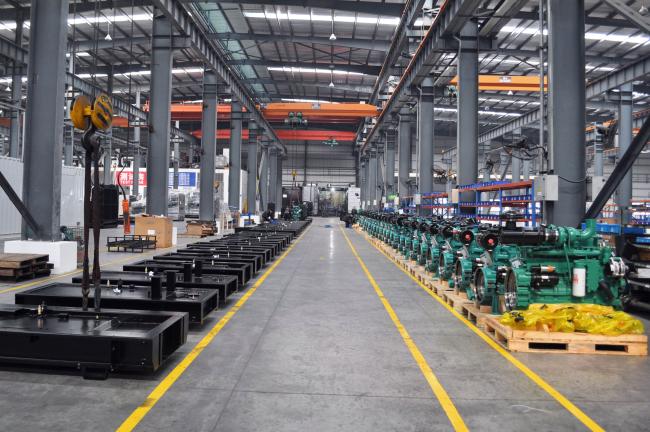

AI Power Factory Introduction
High quality, reliable and complete power unit
Compact design
Easy start and maintenance possibility
Every generating set is subject to a comprehensive test program which includes full load testing, checking and provision of all control and safety shut down functions testing
Fully engineered with a wide range of options and accessories: Canopy, sound proof canopy and on - road trailer
