10KVA 20KVA 50KW 30KW 20KW Standby Power Diesel Generator
10 Kva 20kw 20kva 50kw 30kw 3 Phase Standby Power Diesel Generator Set
Cummins Power Generation has looked beyond today’s challenges, helping our customers meet their future needs by developing the next generation of power. It takes a globally integrated culture of knowledge, know-how and innovation to ensure this next generation of power is Always On. Our comprehensive portfolio delivers centralized as well as distributed energy solutions for your unique power need—commercial, industrial, marine, mining, recreational, emergency and residential.
Generator Specifications:
| Engine manufacturer | Dongfeng Cummins Engine Co. Ltd | |||||||||||
| Engine brand | Cummins | |||||||||||
| Engine model | 4B3.9-G2 | |||||||||||
| Engine speed (rpm) | 1500 | |||||||||||
| Engine output(kWm) | ||||||||||||
| Standby Power | 27 | |||||||||||
| Prime Power | 24 | |||||||||||
| Continuous Power | TBD | |||||||||||
| No. of Cylinder | 4 | |||||||||||
| Aspiration | Naturally Aspirated | |||||||||||
| Bore * Stroke (mm) | 102 * 120 | |||||||||||
| Displacment (litre) | 3.9 | |||||||||||
| Compression Ratio | 18.0:1 | |||||||||||
| Engine Idle Speed (rpm) | 950-1050 | |||||||||||
Controller Parameter | ● Volt | ● oil pressure | ● running time | ● power |
● current | ● battery voltage | ● frequency | ● speed | |
● oil temperature | ● power factor | ● water temperature | ||
● High efficient water cooled Cummins NTA855-G1A diesel engine. | ||||
● Radiator with pressure cap and drain point,Radiator 40°C max. | ||||
● Fully guarded engine-driven fan. | ||||
● Single bearing with brushless alternators (Class H, with AVR). | ||||
● Auto start control system with LCD show. | ||||
● Separate engine-driven battery charging alternator. | ||||
● 12V or 24V maintenance free starter battery and connecting cables. | ||||
● Battery charger provided. | ||||
● Electric speed control | ||||
● Spin on oil and fuel filters and dry type air filter element. | ||||
● Equipped with CHINT MCCB;ABB in Option | ||||
● Equipped with industrial silencer and flexible exhaust hose. | ||||
● Main line 3P circuit breaker. | ||||
● Fully welded steel skid base with lifting holes and fork lift legs. | ||||
● Heavy duty rubber anti-vibration mountings. | ||||
● Integral fuel tank with filler cap and gauge (≤650kVA). | ||||
● Rigorous factory test wiring with IEC standard. | ||||
● Design Comply to ISO8528/GB2820 | ||||
● Absorber (Anti Instant Braking) | ||||
● Wide range of optional extra features available. | ||||
● User Manual, Packing List | ||||

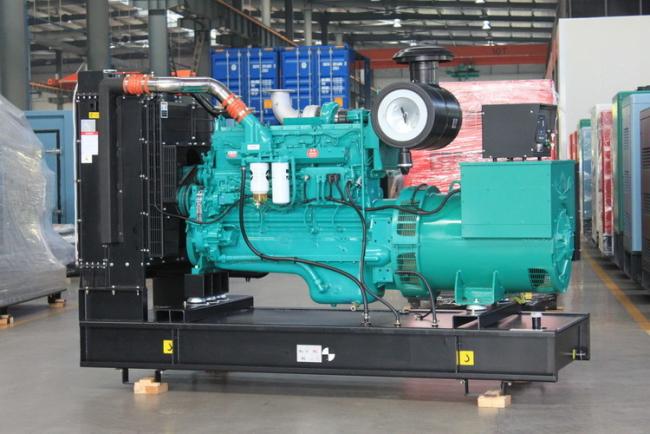

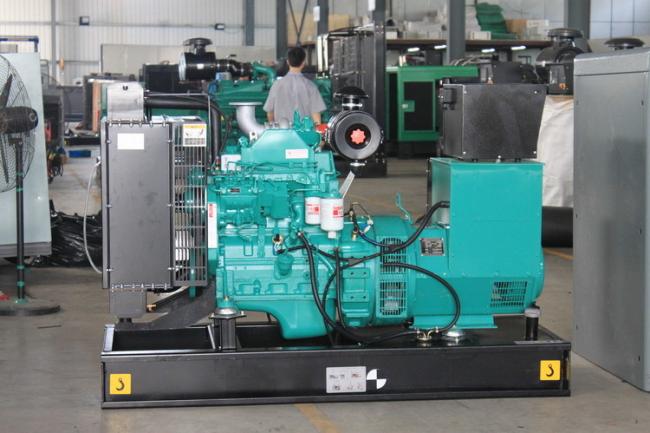

Product Details
Open Type.
● Famous brand engine couple with high quality alternator
● Large size cooling radiator
● Heavy duty steel base frame
● Strong anti-vibration mat
● Standard free maintenance battery
● AC alternator for battery charger
● Heavy-duty air filter, oil filter, water filter
● Famous brand controller and breaker
● Optional fuel tank, silent canopy, ATS, synchronization panels.
1. What is your warranty period?
A: It’s 1 year or 1000 running hours whichever comes first. But based on some special project, we can extend our warranty period.
2. Can you accept OEM?
A. Yes, we can accept OEM.
3. What’s your payment term?
A: We can accept T/T 30% in advance and the balance 70% shall be paid before shipment or LC at sight.
4. What’s your delivery time?
A: Our normal delivery time is 2 to 4 weeks. But if your order is some special engine and alternator, the delivery time will be longer.
