G652D Fiber Optic Patch Cable
Fiber Optic Patch Cord/SC/APC-SC/APC Singlemode G652D/ Simplex/3.0mm/ LSZH/PVC/ Yellow

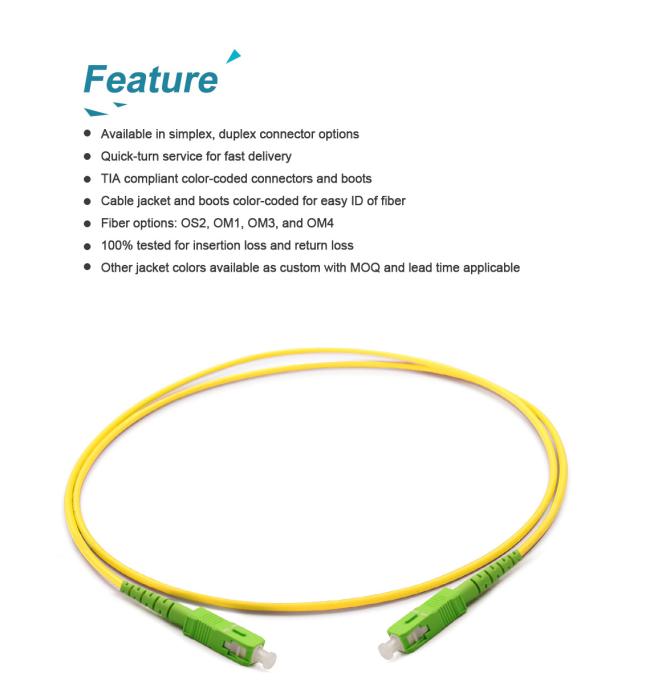

Features
1) Avalible in simplex, duplex connector options
2) Quick-tum service for fast delivery
3) TIA compliant color-coded connectors and boots
4) Cable jaket and boots color-coded for easy ID of fiber
5) Insertion loss and return loss are 100% tested
6) Other jacket colors available as custom with MOQ and lead time applicable
Introduction
Fiber optic patch cords suited for equipment jumper cable, cross connects and work area connections. All patch 100% factory tested to ensure performance to TIA/EIA-568-B-3 standards.
Our patch cord provides high reliability and flexibility for our customers in different industries. All patchcords can be customized in length, fiber mode and connector types to suit every single customer requirement with our state-of-art production facilities.
Specification
| Connector Type | SC/APC-SC/APC | Fiber Count | Simplex |
| Fiber Mode | G652D 9/125um | Working Wavelength | 1260~1625nm |
| Insertion Loss | ≤0.3dB | Return Loss | ≥60dB |
|
Attenuation at 1310/1550nm (Typical) |
0.36/0.22 dB/km | Ferrule Material | Ceramic |
| Cable Diameter | 3.0mm | Strength Member | Aramid yarn |
|
Minimum Bend Radius (Long term) |
10D |
Minimum Bend Radius (Short term) |
20D |
| Cable Jacket | PVC or LSZH | Cable Colour | Yellow |
| Operating Temperature | -20~70°C | Storage Temperature | -40~85°C |
Our certificates
1) ISO9002
2) SGS, ROHS
3) ULE329066
4) REACH
