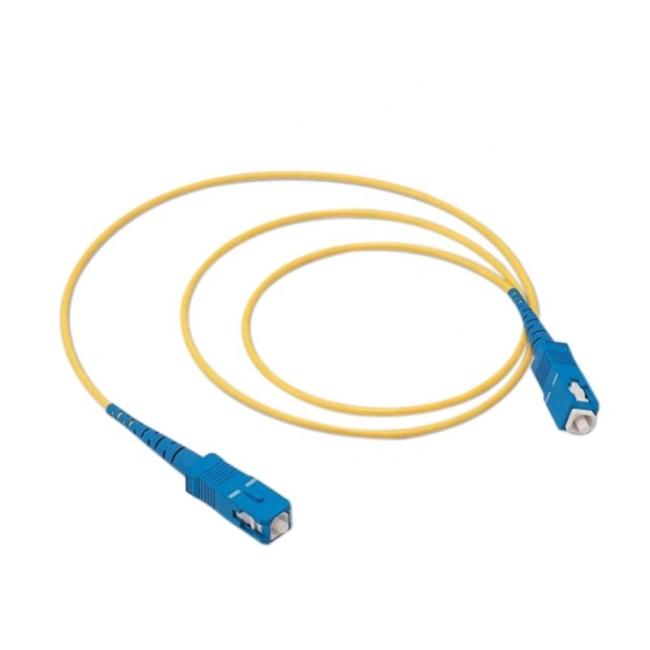

SC - SC UPC Single Mode Armored Fiber Patch Cord With Low Insertion Loss

Price Negotiable

Price: negotiable

MOQ: negotiable

Delivery Time: 5-8 work days

Brand: XDK

Product Description

Fiber Optic Cable Armored Patch Cord Sc-Sc Upc Single Mode Fiber Optic Patch Cord

Feature
The connectors are comply with IEC standards;

Different size & color boot option;

Low insertion loss; High return loss;

100% interferometer measurement;

Various fiber cable option; G652D, G657A, G657B3, OM1, OM2, OM3, OM4 option;

SC, FC, LC, ST, E-2000, MTRJ, MU, MTP, MPO, DIN, SMA-905/906, D4 available.

Parameters

Item	SM(Single Mode)		MM(Multimode)
Fiber Cable Type	G652/G655/G657		OM1	OM2/OM3/OM4
Fiber Diameter(um)	9/125		62.5/125	50/125
Cable OD(mm)	0.9/1.6/1.8/2.0/2.4/3.0
Connector Type	SC
Endface Type	APC	PC	UPC	UPC
Typical Insertion Loss(dB)	<0.2	<0.2	<0.1	<0.1
Return Loss(dB)	>60	>45	-	-
Insert-pull Test(dB)	<0.3	<0.2	<0.15	-
Interchangeability(dB)	<0.15	<0.1	<0.1	-
Anti-tensile Force(N)	-	>70	-	-
Temperature Range(℃)	-40~+80

Fiber Cable Characteristics

MM	G.651	A1a.1:50/125	Color:Orange or Other
		A1a.2:OM3	Color:Aqua or Other
		A1a.3:OM4	Color:Magenta or Other
		A1b:62.5/125	Color:Orange or Other
SM	G.652D		Color:Yellow or Other
	G.657(A1,A2,A3)		Color:Green or Other
Jacket Material	PVC,LSZH or Other
