2m X 1m X 0.5m River Bank Galvanized Gabion Box Iso 9001 Certificated
ASTM A975 Standard Heavy Galvanized Rock Filled Gabion Cages 2x1x1m Gabion Box
Galvanized Gabion Box Introduction:
Gabion Wires Box are made of heavy galvanized wire / ZnAl (Golfan) coated wire / PVC or PE coated wires, the mesh shape is hexagonal style. The Gabion Basket are used widely in slope protection, foundation pit supporting, mountain rock holding, river and dams scour protection.
Galvanized Gabion Box Usage:
It is used for the scour protection of rivers, dikes and seawalls, as well as cage for the closure of reservoirs and rivers. The most serious disaster of the river is that the water scours the Bank of the river and causes the flood, which leads to a lot of loss of life and property and a lot of soil erosion. Therefore, when dealing with the above problems, the application of the grid ecological grid structure becomes one of the best solutions, which can make the river bed and bank permanent protection.
Galvanized Gabion Box Catalog:
| Specification Of gabion box | |||||
|
Gabion size (m) |
Wire diameter | Mesh opening | Surface treatment | ||
|
Mesh wire (mm) |
Selvage wire (mm) |
Tie wire (mm) |
|||
| 2×1×0.5 | 2.0 2.2 2.4 2.7 3.0 |
2.4 2.7 3.0 3.4 3.9 |
1.8 2.0 2.2 |
60 x 80mm 80 x 100mm 80 x 120mm 100 x 120mm 120 x 150mm |
Galvanized Galfan PVC coated PE coated |
| 2×1×1.0 | |||||
| 3×1×0.5 | |||||
| 3×1×1.0 | |||||
| 4×1×1.0 | |||||
| 6×1×1.0 | |||||
| 2×1×0.3(Mattress) | |||||
| 3×1×0.3(Mattress) | |||||
| All sizes can customized according to your request | |||||
Process of production:

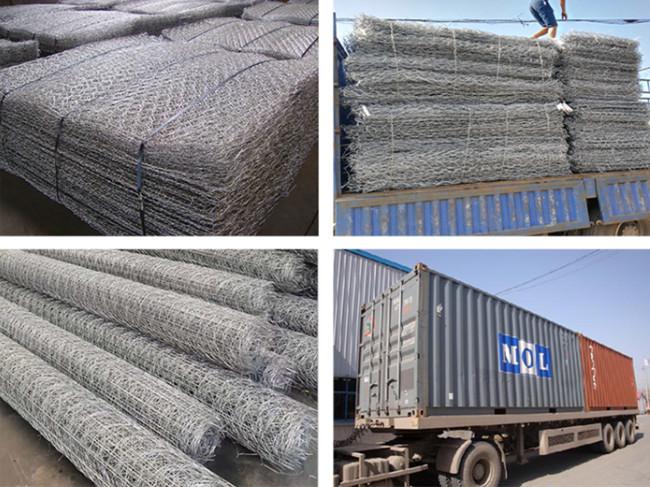

Packing and loading:

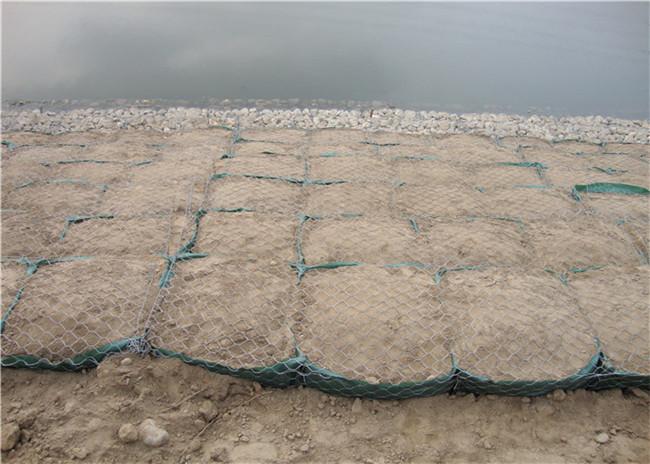

Applications:
Slope support, foundation pit support, mountain rock face hanging net spray, slope planting (greening), railway expressway isolation barrier, it can also be used as stone cages, stone mats for rivers, dams and seawalls Anti-scour protection and stoning cages for reservoirs and river closures
