3x1x0.3m Gabion Mattress 2.7mm Net Wire Galvanized For Slope Protection
3x1x0.3m 2.7mm Net Wire Galvanized Gabion Mattress For Slope Protection
Galvanized Gabion Box Introduction:
Gabions are boxes of different sizes – usually 1.00 – 2.00 m wide and 0.50 – 1.50 m tall, made of hexagonal double twisted steel wire. We use their dimensions, length x width x height, to actually specify them. Inside the gabions there are partitions (transverse diaphragms) that help the box retain its shape and avoid deformation during installation process. The edges of the gabion are reinforced with wire of larger diameter than that of the mesh. They have countless uses, such as river bank and other works reinforcement, transverse roads construction and wall retaining, while they easily integrate into the landscape.
Gabion box is consist of rectangular units, fabricated from a double-twisted hexagonal mesh, filled with stones. In order to reinforce the structure, its edges with a wire having a thicker diameter than the mesh wire. Gabion boxes be divided into cells by diaphragms at every 1 meters.
Galvanized Gabion Box Structure:
Gabion box is consist of rectangular units, fabricated from a double-twisted hexagonal mesh, filled with stones. In order to reinforce the structure, its edges with a wire having a thicker diameter than the mesh wire. Gabion boxes be divided into cells by diaphragms at every 1 meters.
Galvanized Gabion Box Specifications:
|
Mesh(mm)
|
Wire Dia(mm)
|
Wire Dia(PVC Coated)Inner/outside(mm)
|
Strands
|
|
60x80
|
2.0-2.8
|
2.0/3.0-2.5/3.5
|
3
|
|
80x100
|
2.0-3.2
|
2.0/3.0-2.8/3.8
|
3
|
|
80x120
|
2.0-3.2
|
2.0/3.0-2.8/3.8
|
3
|
|
100x120
|
2.0-3.4
|
2.0/3.0-2.8/3.8
|
3
|
|
100x150
|
2.0-3.4
|
2.0/3.0-2.8/3.8
|
3
|
|
120x150
|
2.0-4.0
|
2.0/3.0-3.0/4.0
|
3
|
|
Length
(m) |
Width
(m) |
Height
(m) |
Diaphragm
|
Volume
(m3) |
Tolerance
|
|
2.0
|
1.0
|
0.3
|
1
|
0.6
|
L:+/-3%
W:+/-5%
H:+/-5%
|
|
3.0
|
1.0
|
0.3
|
2
|
0.9
|
|
|
4.0
|
1.0
|
0.3
|
3
|
1.2
|
|
|
2.0
|
1.0
|
0.5
|
1
|
1.0
|
|
|
3.0
|
1.0
|
0.5
|
2
|
1.5
|
|
|
4.0
|
1.0
|
0.5
|
3
|
2.0
|
|
|
1.0
|
1.0
|
0.5
|
0
|
0.5
|
|
|
1.0
|
1.0
|
1.0
|
0
|
1.0
|
|
|
2.0
|
1.0
|
1.0
|
1
|
2.0
|
|
|
3.0
|
1.0
|
1.0
|
2
|
3.0
|
|
|
4.0
|
1.0
|
1.0
|
3
|
4.0
|
Process of production:

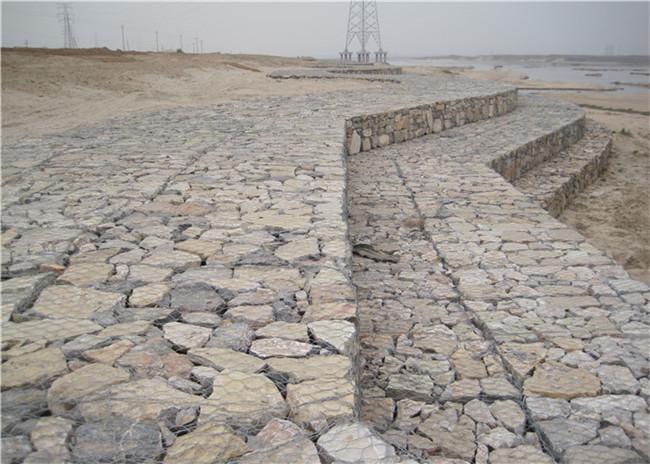

Application pictures:
