3×3×6ft 2 Twisted Steel Gabion Mesh Basket Slope Bank Protective
Anping supply PVC coated slope bank protective gabion mesh basket

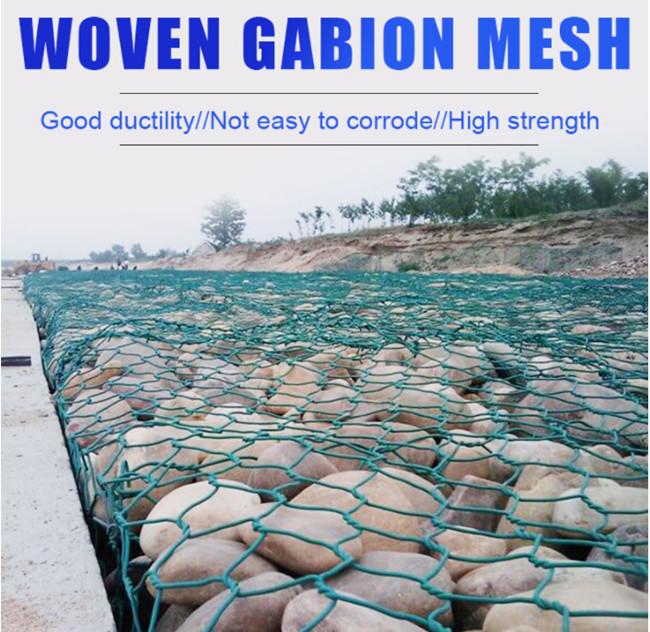

Gabion Mesh Basket Description:
It is made from high grade Low Carbon steel iron wire, heavy zinc coated wire, PVC coated wire though twisting and braiding by machine. as well as galfan coated units. Galfan is a high performance galvanising process using a zinc/aluminium/mischmetal alloy coating. This offers significantly greater protection than traditional zinc galvanizing. Where the product is exposed to water courses or a saline environment, we strongly recommends a polymer coated galvanized unit for improved design life.
Gabion mesh basket specifications:
| gabion specifications | Mesh hole modle | |||||
| 8x10cm | 6x8cm | |||||
| Length(m) | Width(m) | Height(m) | Galvanized or PVC coated | Galvanized or PVC coated | ||
| Mesh diameter | Zinc | Mesh diameter | Zinc | |||
| 2 | 1 | 1 | 2.7mm | >245g/m² | 2.0mm | >215g/m² |
| 3 | 1 | 1 | Side wire diameter | Zinc | Side wire diameter | Zinc |
| 4 | 1 | 1 | 3.4mm | >265g/² | 2.7mm | >245g/m² |
| 6 | 1 | 1 | Binding wire diameter of 2.7m | Binding wire diameter of 2.0m |
||
Gabion Mesh Basket Wire Tolerance:
On the hexagonal double-twisted wire mesh, size of opening should not exceed +/-5% on the nominal dimension
Gabion Mesh Basket Usage:
Retaining wall structures; Prevention of current scour and erosion control; Bridge protection; Hydraulic structures, dams and culverts; Embankment protection; Rockfall prevention and soil erosion protection.
Process of production:
Application:
