1×1×1m PVC Coated Gabion Mesh Baskets 380 Mpa HBGB Retaining Wall Mesh Cages
Hot dipped galvanized or pvc coated gabion mesh basket
Gabion Mesh Basket Introduction:
Stone Gabion Mesh are made of high quality steel wire, which has 2 types of fabrication: double or triple twist fabric. The fabric structures are flexible and variable. Compared with welded gabion baskets, woven gabion baskets have durability for a long service life.
Gabion Mesh Basket Raw material:
(1) Galvanized steel wire: diameter 2.0MM-4.0MM, tensile strength >380Mpa, zinc :240g / m2.
(2) Zinc 5% Aluminum - wire diameter 1.0MM-3.0MM, tensile strength >380Mpa.
(3) coated galvanized steel wire: low carbon steel wire, pvc coated.
(4) Woven Mesh Opening: Hexagonal Wire Pattern 60*80mm, 80*100mm,100*120mm, ect
(5) Size: 1*1*1m,2*1*1m, 4*1*1x2m, other size can be produced as requested
Gabion Mesh Basket Usage:
Control and guide rivers and floods;
Flood discharge dam and diversion dam;
Rockfall protection;
Preventing water adnd soil erosion;
Bridge protection;
Soild Soil structure;
Costal Denfece;
Port Works;
Retaining Wall;
Road Protection.
Gabion Mesh Basket Specifications:
| Opening | Wire Diameter(Metal Wire) (mm) | Wire Diameter (PVC Coate)/ Inner/Outside(mm) | Strands |
| (mm) | |||
| 60X80 | φ2.0-2.8 | φ2.0/3.0-2.5/3.5 | 3 |
| 80X100 | φ2.0-3.2 | φ2.0/3.0-2.8/3.8 | 3 |
| 80X120 | φ2.0-3.2 | φ2.0/3.0-2.8/3.8 | 3 |
| 100X120 | φ2.0-3.4 | φ2.0/3.0-2.8/3.8 | 3 |
| 100X150 | φ2.0-3.4 | φ2.0/3.0-2.8/3.8 | 3 |
| 120X150 | φ2.0-4.0 | φ2.0/3.0-3.0/4.0 | 3 |
Packing and transportion:

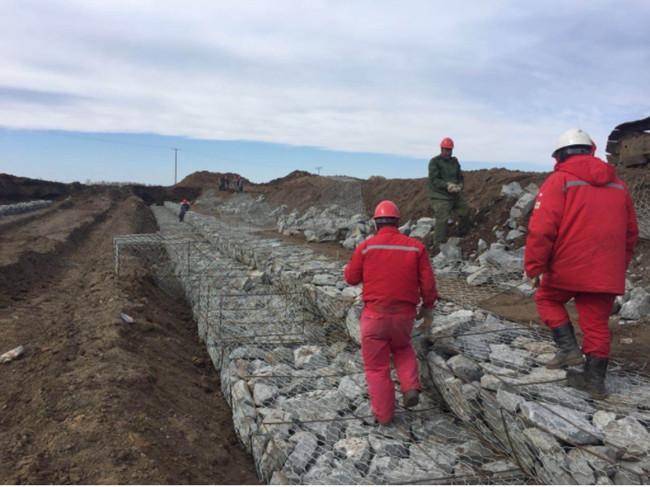

Applications:
