304 Stainless Steel Chicken Mesh Fence Hexagonal AISI EN10223
AISI 304 Stainless Steel Coop Hexagonal Chicken Wire Mesh Fence
Stainless Steel Chicken Wire Mesh Description:
1) Hexagonal wire mesh is also known as chicken netting, chicken cage and hexagonal wire mesh.
2) Common hexagonal wire mesh is made of twisting carbon steel wire, electric or hot dipped galvanized, then plastic coated, or paint with more beautiful colors and choices for customers.
3) Stainless steel hexagonal wire mesh is made by stainless steel wire. Compared with general iron wire,stainless steel chicken wire mesh is better in respects of anti-corrosive and anti rust.

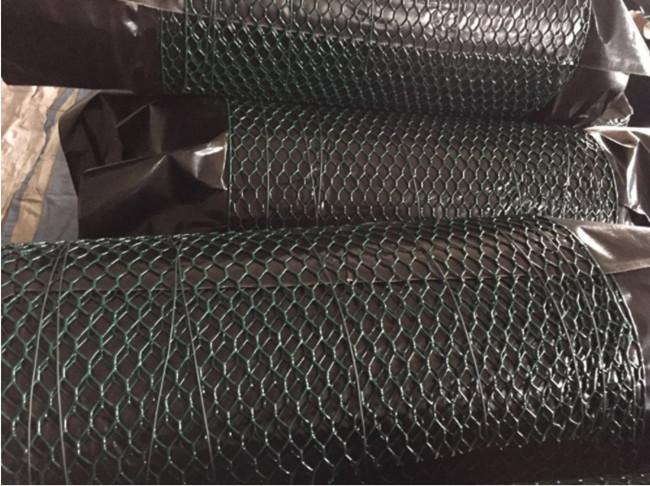

Pictures of Stainless Steel Chicken Wire Mesh:
Stainless Steel Chicken Wire Mesh Specifications:
| stainless steel /Galvanized hexagonal wire netting | |||||
| mesh | Min. Gal.v. | Width | Wire Gauge (Diameter) | ||
| Inch | mm | Tolerance(mm) | |||
| 3/8" | 10mm | ±1.0 | 0.7mm - 145 | 2' - 1M | 27, 26, 25, 24, 23 |
| 1/2" | 13mm | ±1.5 | 0.7mm - 95 | 2' - 2M | 25, 24, 23, 22, 21 |
| 5/8" | 16mm | ±2.0 | 0.7mm - 70 | 2' - 2M | 27, 26, 25, 24, 23, 22 |
| 3/4" | 20mm | ±3.0 | 0.7mm - 55 | 2' - 2M | 25, 24, 23, 22, 21, 20, 19 |
| 1" | 25mm | ±3.0 | 0.9mm - 55 | 1' - 2M | 25, 24, 23, 22, 21, 20, 19, 18 |
| 1-1/4" | 31mm | ±4.0 | 0.9mm - 40 | 1' - 2M | 23, 22, 21, 20, 19, 18 |
| 1-1/2" | 40mm | ±5.0 | 1.0mm - 45 | 1' - 2M | 23, 22, 21, 20, 19, 18 |
| 2" | 50mm | ±6.0 | 1.2mm - 40 | 1' - 2M | 23, 22, 21, 20, 19, 18 |
| 2-1/2" | 65mm | ±7.0 | 1.0mm - 30 | 1' - 2M | 21, 20, 19, 18 |
| 3" | 75mm | ±8.0 | 1.4mm - 30 | 2' - 2M | 20, 19, 18, 17 |
| 4" | 100mm | ±8.0 | 1.6mm - 30 | 2' - 2M | 19, 18, 17, 16 |
Note:
1.) The above tolerance comply with standard EN10223-2:1997;
2.) Minimum Galvanization is only for typical wire diameter as stipulated separately in the column for your reference; Also it is only for hot dipped Galvanized Netting.
| PVC Coated Hexagonal Wire Netting | |||
| Mesh | Wire Gauge (MM) | Width | |
| Inch | MM | - | - |
| 1/2" | 13mm | 0.6mm - 1.0mm | 2' - 2M |
| 3/4" | 19mm | 0.6mm - 1.0mm | 2' - 2M |
| 1" | 25mm | 0.7mm - 1.3mm | 1' - 2M |
| 1-1/4" | 30mm | 0.85mm - 1.3mm | 1' - 2M |
| 1-1/2" | 40mm | 0.85mm - 1.4mm | 1' - 2M |
| 2" | 50mm | 1.0mm - 1.4mm | 1' - 2M |
| We also offer other specifications you need | |||

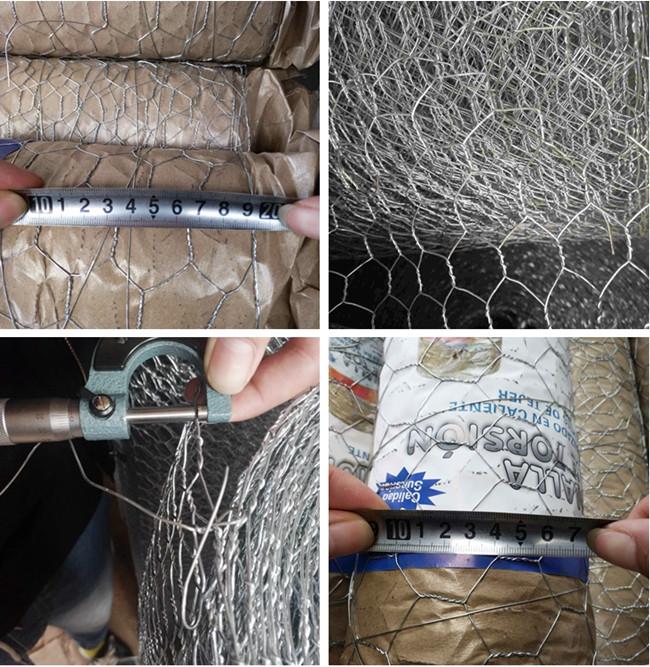

Inspection of Stainless Steel Chicken Wire Mesh:

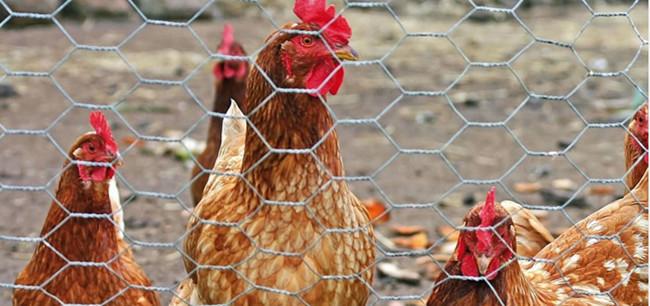

Chicken Wire Mesh Usage:
Hexagonal chicken its good corrosion resistance and oxidation resistance, serves well as strengthening, protection and temperature keeping materials in the form of mesh container, stone cage, isolation wall, boiler cover or poultry fence in construction, chemical, breeding, garden and food processing industries.

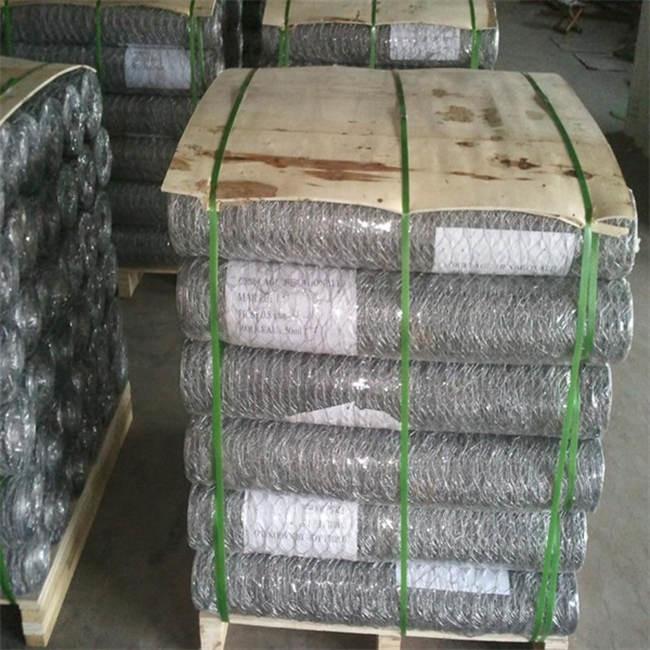

Packing & Transportation pictures:
