Stainless Steel Ss304 Grade Plain Bar Grating Expanded Floor Waste
Stainless Steel SS304 Grade Expanded Plain Steel Bar Floor Grating
Plain Steel bar grating description:
| Type | Steel Grating |
| Beraing bar size | 20×3,25×3,25×5,30×3,30×4,30×5,32×3,32×5……45×5mm |
| Beraing bar pitch | 15, 22, 25, 30, 32.5, 34, 40, 50, 60, 80, 90mm |
| Cross bar pitch | 24-200mm |
| material | Low carbon steel, stainless steel, aluminium |
| Surface treatment | Untreated, hot galvanized, painted |
| Steel Grating Standard | China: YB/T 4001.1-2007 |
| USA: ANSI/NAAMM(MBG531-88) | |
| UK: BS4592-1987 | |
| Steel product Standard | China: GB700-88 |
| USA: ASTM(A36) | |
| UK: BS4360(43A) | |
| Hot galvanizing Standard | China: GB/T13912 |
| USA: ASTM(A36) | |
| UK: BS729 |
Plain bar grating specifications:
| Material |
*Mild steel (Carbon steel) *stainless steel 304, SS316 |
| Material standard |
*USA:ASTM A36 *UK:BS4360 *Australia:AS3679 *China:Q235 |
| Bearing bar type |
*Smooth/flat bar *serrated/toothed bar *Smooth I bar *Serrated I bar |
| Bearing bar thickness | *2mm to 10mm, 3mm and 5mm recommended |
| Bearing bar pitch | *12.5-30mm/40mm/50mm/60mm/80mm/90up,30 and 40mm recommended |
| Bearing bar specification |
*flat bar and serrated bar 20*3,20*5,25*3,25*5,30*3,30*4,30*5,32*3,32*5,35*3,35*5,40*3,40*5, 45*5,50*3,50*5,55*5,60*5,65*5,70*6,75*6,75*8,80*8,90*8,100*8, 120*8,130*8,150*8 *I-section bar 25*5*3,32*5*3,38*5*3,44*5*3,50*5*3,50*7*4,55*7*4,60*7*4, 65*7*4,75*7*4 |
| Cross bar | *5*5mm,6*6mm,8*8mm |
| Cross bar pitch | *30mm,38mm,50mm,76mm,100mm,50mm and 100mm recommended |
| Surface treatment |
*Hot dipped galvanized *Untreated(self-color) *Painted |
Steel grating process:
cross bar- load flat- resistance welding- cutting - folding process- packing - delivering
Characteristics of steel bar grating:
Smooth and clean
Using computer numerical control technology, the mesh is smooth and smooth, anc the aperture is uniform.
Wear and corrosion
High temperature resistance, strong wear resistance. anti- corrosion and durable.
Welding process
The high-strength, light-weight structure and strong grid pressure welding structure make it have a high load-bearing capacity.
High gloss
The surface is glossy, beautiful and generous, and it has strong practicality and is used in many fields.

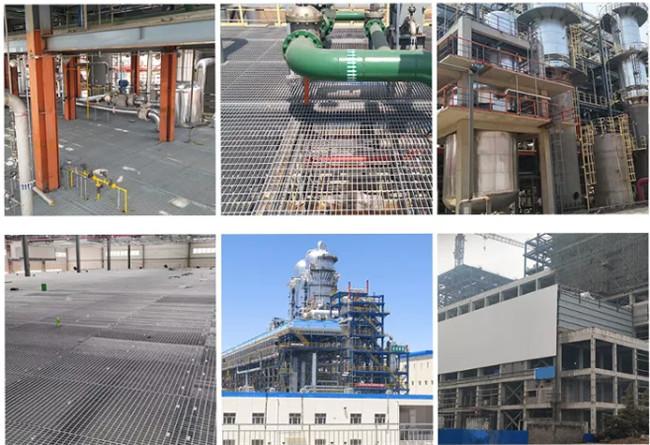

Plain steel bar grating usages:
Widely used in petroleum chemical industry, power plant, water and sewage treatment plants, municipal engineering, environmental sanitation engineering fields of the platform, footpath, zhanqiao pier, ditch lid, manhole cover, ladders, fences, guardrail etc.
