V Folding Anti Cut Anti Climb Fence 3" X 1/2" Hole Size 358 Welded Wire Mesh
Curved Type Pvc Coated And Galvanized 358 Anti Climb Mesh Fence
358 Anti Climb Mesh Fence description:

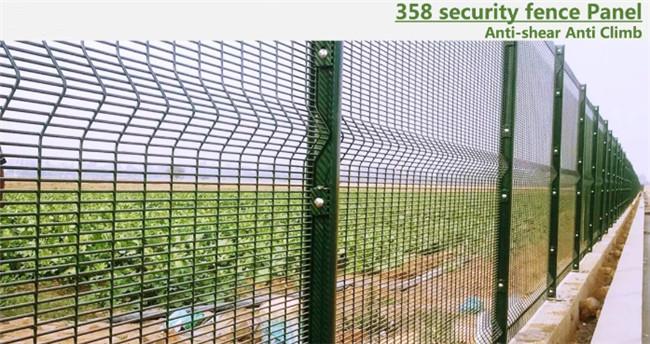

358 high security fence is well known in the world as an anti-climb and anti-cut through barrier, while providing the lowest level high quality carbon steel wires. It is designed to give attractive, long lasting and secure perimeter protection for industrial and commercial properties, public utilities, and it is really suited for electronic alarm and detection systems-no blind spots for CCTV. It is also a good choice for Military, airports, secure units and prisons.
358 Anti Climb Mesh Fence features:
Anti-climbing: more small openings, no toe or finger holds.
Anti-cut: robust wire and welded joints make cutting very difficult by bolt cutters and wire cutters.
High strength welded at each intersection.
Durable: covering Galfan and polymer powder coating ensure a long service life.
Mesh fencing specially configured to provide maximum visibility, especially used for emergency and electronic detection systems.
Surface finishing of 358 Anti Climb Mesh Fence:
Material: Q195, steel wire
Panels are manufactured from pre-galvanised wires.
An adhesion coating is applied to allow perfect adhesion with the polyester coating (min. 100 micron).
Posts are polyester coated with a galvanized substrate in accordance with Euro norm 10147.
Colours:
Standard colours are Green RAL6005 and Black RAL9005.
Other colours are available on request. ( light green, blue, yellow, white, black, orange and red, etc.)
358 Anti Climb Mesh Fence specification:
Materials: High quality carbon steel wire
Corrosion Form: electric galvanized, hot-dipped galvanized, and PVC coating
Process: welded
Specification of high security fencing:
|
Panels
|
Post
|
||||
|
Fence
|
Panel Size
|
Post Size
|
Post Height
|
Total Number of Fixings
|
|
|
Height(m)
|
Height/Width(mm)
|
Length/Width/Thickness(mm)
|
mm
|
Inters- 1 clamp
|
Corners-2 clamp
|
|
2.0
|
2007 × 2515
|
60×60×2.5mm
|
2700
|
7
|
14
|
|
2.4
|
2400 × 2515
|
60×60×2.5mm
|
3100
|
9
|
18
|
|
3.0
|
2997 × 2515
|
80×80×2.5mm
|
3800
|
11
|
22
|
|
3.3
|
3302 × 2515
|
80×80×2.5mm
|
4200
|
12
|
24
|
|
3.6
|
3607 × 2515
|
100×60×3mm
|
4500
|
13
|
26
|
|
3.6
|
3607 × 2515
|
100×100×3mm
|
4500
|
13
|
26
|
|
4.2
|
4204 × 2515
|
100×100×4mm
|
5200
|
15
|
30
|
|
4.5
|
4496 × 2515
|
100×100×5mm
|
5500
|
16
|
32
|
|
5.2
|
5207 × 2515
|
120×120×5mm
|
6200
|
18
|
36
|
358 Anti Climb Mesh Fence Application:
1. Prison security fencing;
2. Store anti-climb guarding;
3. Airport security fencing;
4. Factory machine guards;
5. Walkway security fencing;
6. Psychiatric hospital security fencing;
Packing & shipping:
