50/25 Hooked End Concrete Steel Fiber Resisting Crack For Shotcrete
50/25 Hooked End Loose Concrete Steel Fiber Resisting Crack In Shotcrete
Concrete Steel Fiber Introduction
This concrete steel fiber is made of low carbon steel wire,high carbon steel wire,or stainless steel wire .
It has excellent tensile, bending and shearing strength, high tenacity,resistance against cracking,
impact and fatigue.

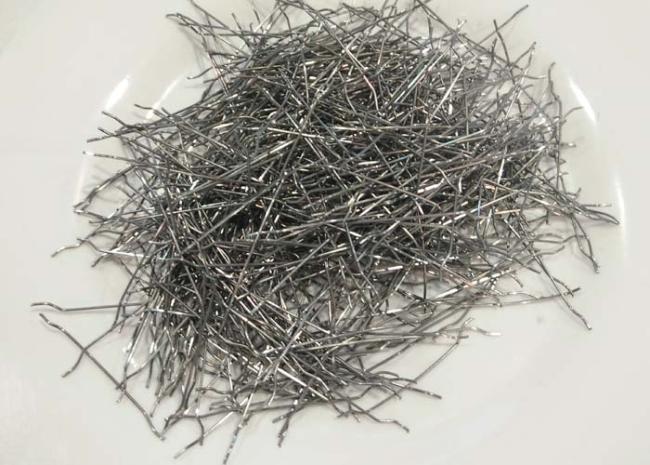

We supply Steel Fibers made from prime quality hard-drawn steel wire to ensure high tensile strength.The wire is deformed with hooked ends and cut to lengths, used in reinforcement concrete, mortar and other composite materials.
Concrete Steel Fiber Specification
| Concrete Steel Fiber |
Model | Diameter (mm) | Length (mm) | Aspect ratio (mm) | Tensile strength (MPa) | ||||
| YS-60/60 | 1 | 60 | 60 | ≥1000 | |||||
| YS-50/50 | 1 | 50 | 50 | ≥1000 | |||||
| YS-65/60 | 0.9 | 60 | 65 | ≥1000 | |||||
| YS-55/50 | 0.9 | 50 | 55 | ≥1000 | |||||
| YS-80/60 | 0.75 | 60 | 80 | ≥1000 | |||||
| YS-45/35 | 0.75 | 35 | 45 | ≥1000 | |||||
| YS-50/30 | 0.6 | 30 | 50 | ≥1100 | |||||
| YS-55/30 | 0.55 | 30 | 55 | ≥1100 | |||||
| YS-65/35 | 0.53 | 35 | 65 | ≥1100 | |||||
| YS-60/30 | 0.5 | 30 | 60 | ≥1100 | |||||
| YS-50/25 | 0.5 | 25 | 50 | ≥1100 | |||||
| YS-60/25 | 0.4 | 25 | 60 | ≥1100 | |||||
Concrete Steel Fiber Mixing Proportion
| Areas of application | LBS/Y3 | (KG/M3) |
| Industrial Ground Floor Slabs | 20-120 | 12-72 |
| Airport(aprons, taxiways and runways) | 20-160 | 12-95 |
| Dolomite | 80 | 48 |
| Cemetery | 25 | 15 |
| Cement Slurry | 40-120 | 20-72 |
| Military Structure | 160-200 | 95-120 |
| Maritime | 40-160 | 24-36 |
| Highways | 50-140 | 30-78 |
| Bridge Decks | 50-160 | 30-95 |
| Dam and Stabilization | 120 | 72 |
| Commercial and Residential slabs | 40-100 | 24-60 |
| Cement Conduits | 100-120 | 60-72 |
| Cesspools | 40 | 24 |
| Shotcrete | 40-60 | 24-36 |
| Roads | 20-25 | 12~15 |
Advantage for Concrete Steel Fiber:
- Increase impact resistance
- Increase fatigue effect
- Increase crack resistance
- Increase the concrete performance against thermal variations
- Get minor permeability
