80X100mm Retaining Wall Mesh Cages PVC Coated Gabion Basket For Slope Protection
PVC Coated Gabion Basket 80X100mm for Slope protection
Colorful PVC coated gabions
Compared with other materials of gabions, the features of PVC coated gabion is colorful and ecological. The PVC coated gabion can be made into green, gray and other colors for common applications, it can also be made into orange, black and other various colors for decorative applications.
Solid PVC coated gabions
PVC coated gabion has a rigid and solid structure, which can be double twisted and triple twisted. Double twisted structure is most widely used structure, which is solid enough for common protective applications. In some harsh conditions projects, such as flood control, coastal protection, channeling lining and other projects, the double twisted structure can not satisfy the strength requirements, so you can choose the triple twisted PVC coated gabion. Triple twisted structure makes the gabion a higher strength and stability structure. The high strength can resist the high impact from flood, sea water and other external forces

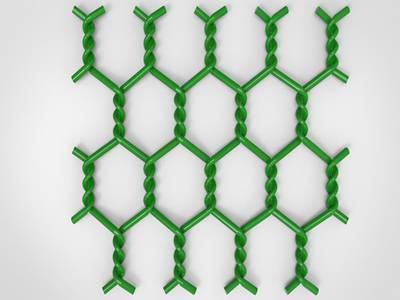

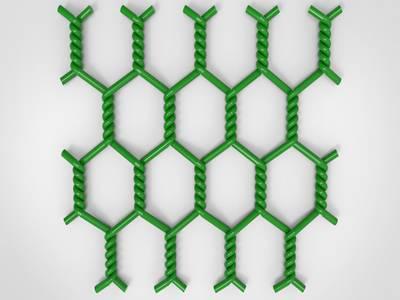

Double Twist Triple Twist
Specification:
Mesh size: 60x80mm, 80x100mm,100x120mm
Basket Size
| 1 x 1 x 1M | 1,5 x 1 x 1M |
| 2 x 1 x 1M | 3 x 1 x 1M |
| 4 x 1 x 1M | 2 x 0,5 x 0,5M |
| 2 x 1 x 0,5M | 3 x 1 x 0,5M |
| 4 x 1 x 0,5M | 6 x 2 x 0,5M |
Wire Diameter
| Mesh wire (mm) | Selvedge wire (mm) | Lacing wire (mm) | |
| Galvanized /Galfanbasket | 2.4 | 3.0 | 2.2 |
| 2.7 | 3.4 | 2.2 | |
| 3.0 | 3.9 | 2.2 | |
| PVC coated basket | 2.4/3.4 | 3.0/4.0 | 2.2/3.2 |
| 2.7/3.7 | 3.4/4.4 | 2.2/3.2 | |
| 3.0/4.0 | 3.9/4.9 | 2.2/3.2 |
Customized PVC coated gabion
- If you want use the PVC coated gabion in retaining wall, channel linings and slope protection applications, you may need the higher gabions, you can choose the PVC coated gabion box, which has maximum 1.5 meter height. If you need
- highejust pile the 1 meter height gabions up for protection.
- If you need more flexible PVC coated gabions to be used in coastal protection, river bank protection and other project, which need the lower gabions, you can choose the PVC coated gabion mattress. The maximum height of gabion mattress is 0.5 meter and minimum height can be 0.17 m. It is more flexible and easy to operating during using.
