275g Circular Gabion Baskets Zinc Coated Gabion Box 100x120mm

Price Negotiable
Price: FOB USD 10-11/PCS
MOQ: 500PCS
Delivery Time: 5-8 days
Brand: TALIN
Product Description

                                         275g Zinc Coated Gabion Mesh 100x120mm







 Specification:



    Mesh size:  60x80mm, 80x100mm,100x120mm



  Mesh wire (mm) Selvedge wire (mm) Lacing wire (mm)
  Galvanized /Galfanbasket 2.4 3.0 2.2
2.7 3.4 2.2
3.0 3.9 2.2
PVC coated basket 2.4/3.4 3.0/4.0 2.2/3.2
2.7/3.7 3.4/4.4 2.2/3.2
3.0/4.0 3.9/4.9 2.2/3.2







   Minimum zinc coating weight of gabion wire



Wire diameter (mm) Zinc coating(g/㎡) Standard
2.2 230 EN10223-3
2.7 245 EN10223-3
3.0 255 EN10223-3
3.4 265 EN10223-3
3.9 275 EN10223-3

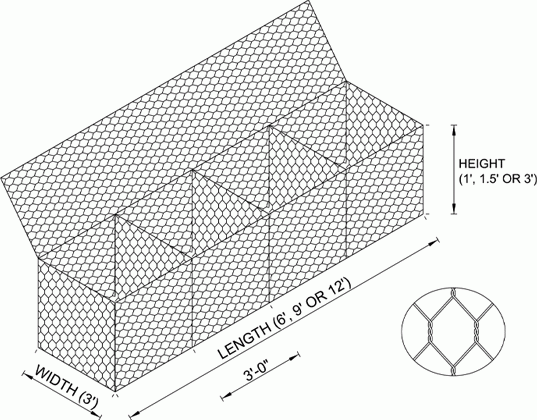

     Basket Size



1 x 1 x 1M 1,5 x 1 x 1M
2 x 1 x 1M 3 x 1 x 1M
4 x 1 x 1M 2 x 0,5 x 0,5M
2 x 1 x 0,5M 3 x 1 x 0,5M
4 x 1 x 0,5M 6 x 2 x 0,5M




gabion



Strength:

Steel wire hexagonal mesh has strength and flexibility to withstand forces generated by water and earth masses, and the pervious nature of the gabion allows it to absorb and dissipate much of that energy. This is evident on coast protection installations where gabion structures remain effective long after a massive rigid structure fails. Additionally, the double twisted hexagonal mesh won’t unravel if cut.

Permeability:

Gabion walls are previous to water and stabilize slopes by the combined action of draining and retaining, precluding the development of hydrostatic pressure behind the gabion wall. Drainage is accomplished by gravity, as well as evaporation as the porous structure permits air circulation through it. As plant growth develops within the structure, the process of transpiration assists in removing moisture from the backfill – a much more efficient system than weep holes in standard masonry walls.

Low cost:

Gabion systems are more economical than rigid or semi-rigid structures for the following reasons:

  • It requires little maintenance
  • Its installations does not require skilled labor and stone fill is available on site or from nearby quarries,
  • It requires little or no foundation preparation, as the surface needs to be only reasonably level and smooth.

Gabions are porous, requiring no costly drainage provision

Ecology:

Gabions is an environmentally sensitive solution to slope stabilization. It has already been mentioned that stone fill is done with natural stones making the gabions, naturally porous allowing interaction between the land and the water table and also persuades deposition of soil in the smaller voids between the stone fill during drainage that again promote vegetation growth.

Aesthetics:

Gabions supporting vegetation has already been discussed; in some case the vegetation growth is so intense, making the gabion structure invisible, and pleasant to look at. Again if additional effort is given during construction, the gabion can create really pleasing structure with or without vegetation. Unlike other types of materials such a modular block walls the gabion stones do not discolor due to drainage.
