6x2x0.3M Stone Wall Wire Mesh Reno Mattress Wire Gabion Cages 60x80mm
6x2x0.3M heavy galvanized coated Gabion Reno Mattress(60x80mm mesh hole)
(1)DOUBLE-TWISTED HEXAGONAL GABION MESH:
A double-twisted wire mesh is a non-raveling mesh made by twisting continuous pairs of wires through three one half (1⁄2) turns (commonly called double-twisted) to form hexagonal shaped openings which are then interconnected to adjacent wires to form hexagonal openings. We can supply double-twisted hexagonal mesh in rolls of 1 x 50mtrs, 2 x 50mtrs, the widest can be 2.3mtrs. The wire mesh can be used to protect rock fall.
GABIONS (Greater than 1' in height) and MATTRESSES (Less than 1' in height) consist of rectangular units, fabricated from a double-twisted hexagonal mesh. Filled with stones, gabions become large, flexible and permeable elements from which a broad range of structures may be built.
GABIONS or MATTRESSES are divided into cells with diaphragms (usually spaced at 1 meter or 3' intervals), whose function is to reinforce the structure. The mesh (except for the diaphragms) is reinforced on all edges with wires of a larger diameter to strengthen the gabions and facilitate the assembly and installation.
(2)Specifications of Gabion Box/Reno mattress/Sack Gabion
mesh Opening(mm) |
Inner Wire diameter (mm) |
Gabion Mesh Sizes |
gabion Basket Sizes |
Gabion Mattress Sizes |
Sack Gabion Sizes |
60x80 |
2.0-2.4 |
2x25m, 2x50m or as per request |
1x1x1m, 1x1x0.5m, 2x1x1m, 2x1x0.5m, 3x1x1m, 3x1x0.5m, 4x1x1m, 4x1x10.5m, Or as per request |
3x2x0.17m, 4x2x0.23m, 6x2x0.3m, 6x2x0.23m, or as per request |
2.0 x 0.65m, 3.0 x 0.65m, or as per request. |
80x100 |
2.0-3.2 |
||||
80x120 |
2.0-3.2 |
||||
100x120 |
2.0-3.4 |
||||
100x150 |
2.0-3.4 |
||||
120x150 |
2.0-4.0 |
3) Applications of Gabion Boxes

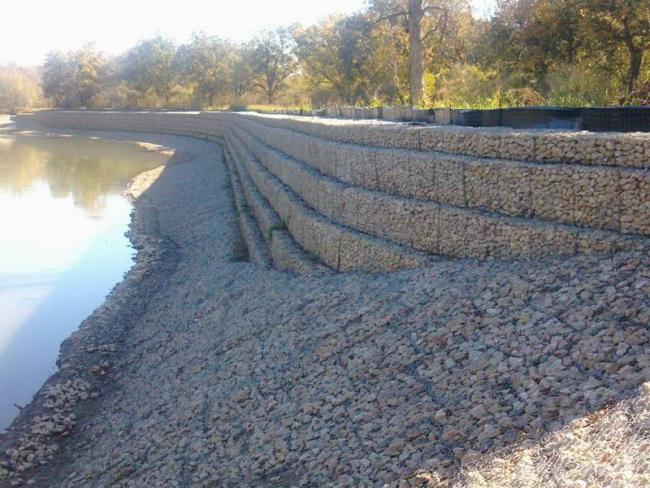

Gabions and mattresses are widely used for hydraulic and geo- technical control such as retaining walls, riverbank protections, weirs, channel linings etc.
* Control and guide of water or flood,
* Flood bank or guiding bank,
* Preventing of rock breaking
* Water and soil protection
* Bridge protection
* Strengthening structure of soil
* Protection engineering of seaside area
For easy handling and shipping, the gabions are supplied in bundles with folded flat. A color stripe applied on the side of each folded gabion identifies the size or box quantity. Packaged in bundles or with pallets.
