4"-10" Hot-Dip Galvanized Low Carbon Steel Expanded Mesh

Expanded metal mesh is made by stamping and drawing of low carbon steel plate, stainless steel plate, nickel plate, aluminum plate, copper plate, aluminum-magnesium alloy plate and other metal plates. Beautiful and durable.The expanded metal mesh that is flattened after punching and drawing has a flat and smooth surface. After rolling, the surface roughness of the expanded metal mesh is usually reduced.

The schematic diagram of the expanded metal mesh is as follows:

SWD (Short Way of the Diamond) is the distance from the middle of the bond on one side to the middle of the bond on the opposite side.
LWD (Long Way of the Diamond) is the distance across the largest dimension of the diamond measured halfway between the diamonds.
SWO (Short Way of the Opening) is the width of the opening of the shortest side of the diamond. SWO does not include the strand width, where SWD (Short Way of the Diamond) does.
LWO (Long Way of the Opening) is the length of the opening of the longest side of the diamond. LWO does not include the strand width, where LWD (Long Way of the Diamond) does.

StrandExpanded metal is composed of strands and bonds. Strands form the sides of the expanded metal openings. .
Thickness is the measurement from the top surface to bottom surface of the expanded metal piece.

Main specifications and models of expanded metal mesh:

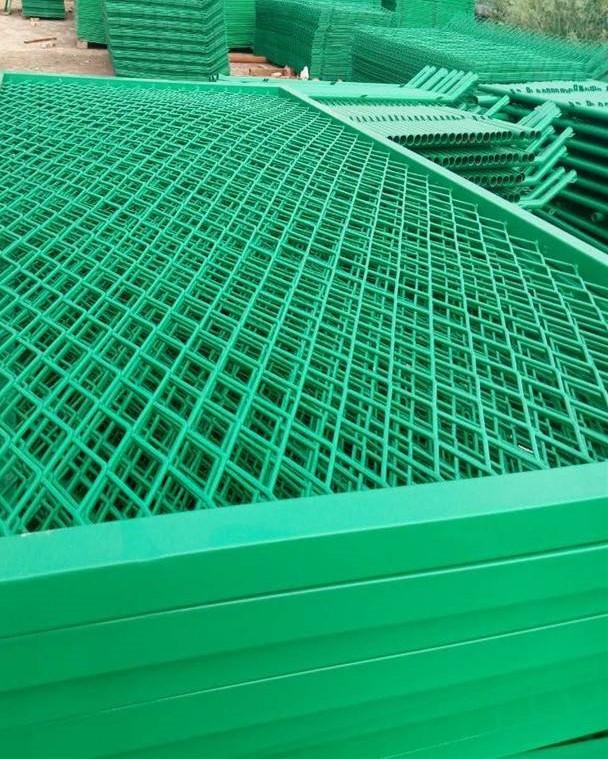

The use of sprayed expanded metal mesh
Widely used in the isolation and protection of parks, sports venues, community places, and the protection of large and heavy machinery and equipment, handicraft manufacturing, highway guardrails, road green belt protection, oil tanker pedal nets and boilers, oil mines, locomotives, etc. Work platforms, escalators, walkways, and in recent years, plastic-sprayed expanded metal mesh has also been used in the construction industry, highways, and bridges as steel bars.
