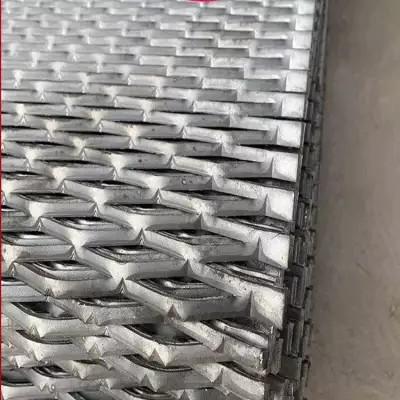

Heavy duty low carbon expanded metal mesh/Steel Expanded Mesh​​

Hot-dip galvanized heavy-duty expanded metal mesh is a type of expanded metal mesh, it is a metal mesh, it also has some other names called expanded metal mesh, diamond mesh, iron mesh, etc. Most of these names are based on it The form or the name used above, the main purpose of heavy-duty expanded metal mesh is a safety net, which is used for roads, railways, or some water conservancy and electric power facilities to ensure the normal operation of roads, railways and other facilities.

The schematic diagram of the expanded metal mesh is as follows:

SWD (Short Way of the Diamond) is the distance from the middle of the bond on one side to the middle of the bond on the opposite side.
LWD (Long Way of the Diamond) is the distance across the largest dimension of the diamond measured halfway between the diamonds.
SWO (Short Way of the Opening) is the width of the opening of the shortest side of the diamond. SWO does not include the strand width, where SWD (Short Way of the Diamond) does.
LWO (Long Way of the Opening) is the length of the opening of the longest side of the diamond. LWO does not include the strand width, where LWD (Long Way of the Diamond) does.

StrandExpanded metal is composed of strands and bonds. Strands form the sides of the expanded metal openings. .
Thickness is the measurement from the top surface to bottom surface of the expanded metal piece.

Main specifications and models of expanded metal mesh:

Hot-dip galvanized heavy-duty steel mesh can be used for oil tanker pedal nets, heavy machinery and boilers, oil mines, locomotives, 10,000-ton ships and other working platforms, escalators, walkways. It can also be used in the construction industry, highways and bridges to make steel bars for railways.
