SC APC to SC APC Single Mode Simplex Fiber Optic Patch Cable LSZH Sheath
SC APC to SC APC Single Mode Simplex Fiber Optic Patch Cable LSZH Sheath

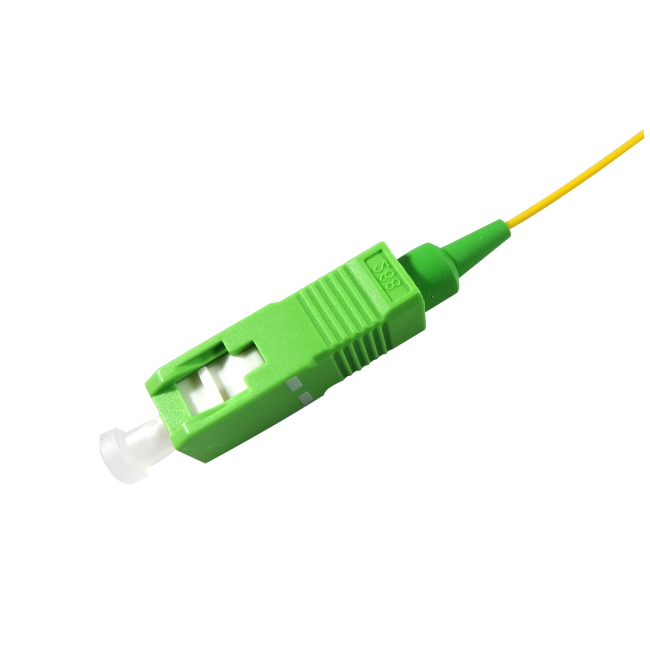

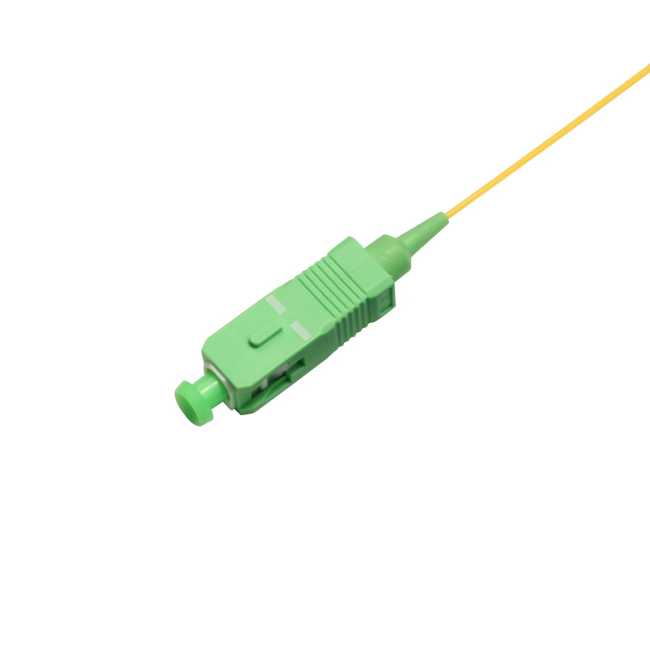

This fiber optic patch cord product is a piece of 0.9 mm / 2.0 mm / 3.0 mm single mode simplex fiber cable (length / cable color / fiber type / cable sheath material selectable) with one SC APC connector at each end (2 connectors in total).
Fiber optic patch cords are utilized to be rapidly and conveniently connected to CATV, an optical switch or other telecommunication equipment.
Product Feature
◆ Easy Installation
◆ Small Size High Dense
◆ Excellent mechanical endurance
◆ Good in Repeatability
◆ 3D Interference Test More than 85% Passed
Product Parameter
| Parameter | Unit | Data |
| Operating Wavelength | nm |
1310 1550 |
| Insertion Loss | dB | ≤ 0.3 |
| Return Loss | dB | ≥ 60 |
|
3D Interference Test Passing Rate |
% | 85 |
| Repeatability | dB | ≤ 0.1 |
| Plug and Pull Durability | Times | > 1000 |
| Operating Temperature | °C | -10 ~ +75 |
| Storage Temperature | °C | -40~+85 |
Product Detail
FAQ
Q1: How can I get a quotation? How long does it take?
A1: You leave your email in email inquiry or directly email us (sales01@sz-htd.com). We will send you an exact quotation within one business day.
Q2: How long will the goods be delivered after placing order?
A2: Depending on factory's current schedule and types of product, delivery time would be different. SC APC simplex patch cord's delivery time is normally less than 15 days.
Q3: Can you supply OEM products under our brand?
A3: Yes. As a large scale original manufacturer, HTD accepts OEM service. You just need to send us your detailed requirements.
Q4: Can I request a sample? Is it free?
A4: Yes, HTD provides sample service for every product. If we have raw material of the product you want in stock, we can provide you free sample. Please check with us beforehand to see whether you can get a free sample.
