G652D LSZH Fiber Patch Cord SC APC To LC UPC 3.0mm OD Single Mode
Price:
Negotiable
MOQ:
10 Pieces
Delivery Time:
5 - 10 Business Days
Brand:
HTD / OEM
Product Description
SC APC to LC UPC Fiber Optic Patch Cord 3.0mm OD G652D Fiber LSZH Sheath
This fiber optic patch cord product is a mixed type patch cord with a SC APC connector at one end and a LC UPC connector at another end.
Fiber Optic Patch Cord Feature
◆ SC APC to LC UPC
◆ Mixed Patch Cord
◆ Single Mode Simplex
◆ G652D Fiber
◆ 3.0mm Outer Diameter
◆ LSZH Sheath - Flame Retardant
Fiber Optic Patch Cord Parameter
| Parameter | Unit | Data |
| Operating Wavelength | nm |
1310 1550 |
| Insertion Loss | dB | ≤ 0.3 |
| Return Loss | dB | ≥ 50 (UPC) ≥ 60 (APC) |
|
3D Interference Test Passing Rate |
% | 90 |
| Repeatability | dB | ≤ 0.1 |
| Plug and Pull Durability | Times | > 1000 |
| Operating Temperature | °C | -10 ~ +75 |
| Storage Temperature | °C | -40~+85 |

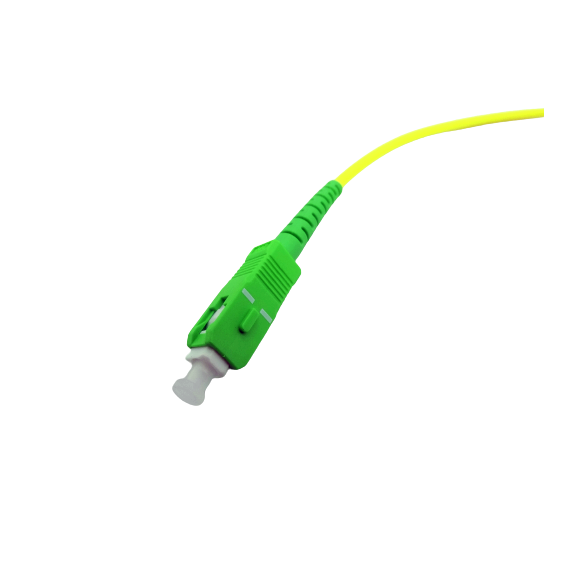

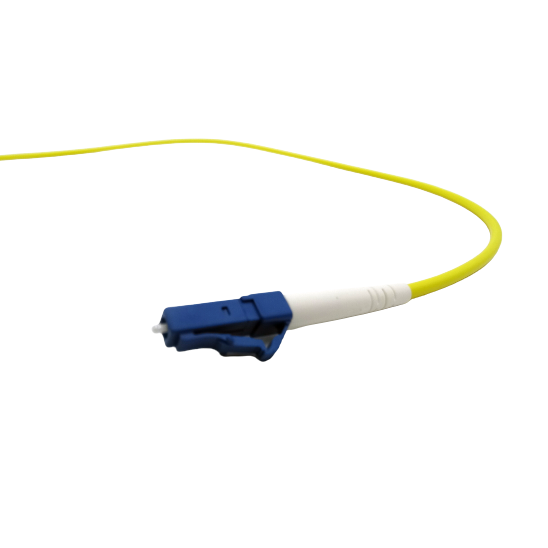

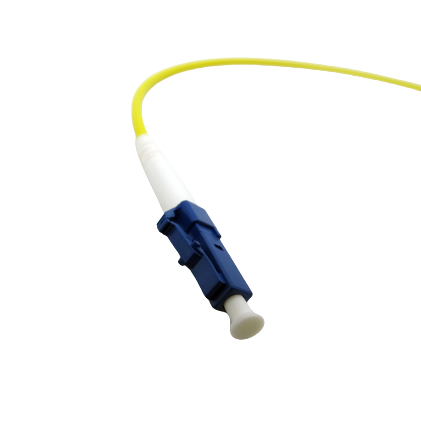

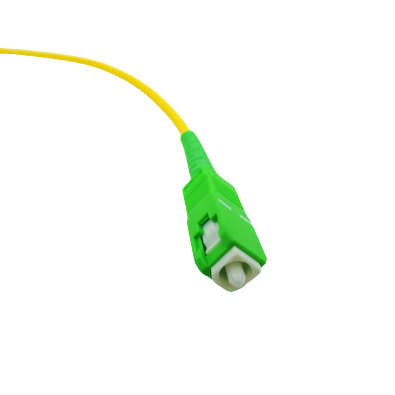

Fiber Optic Patch Cord Image
