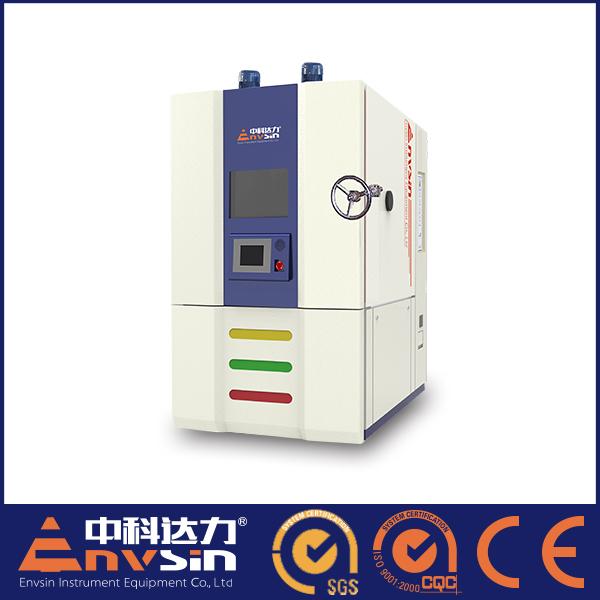

High-Precision Industrial-Grade Altitude Test Chamber for Aerospace Testing
Price:
$15,000.00 >=1 Sets
MOQ:
1
Delivery Time:
30
Brand:
Envsin
Product Description

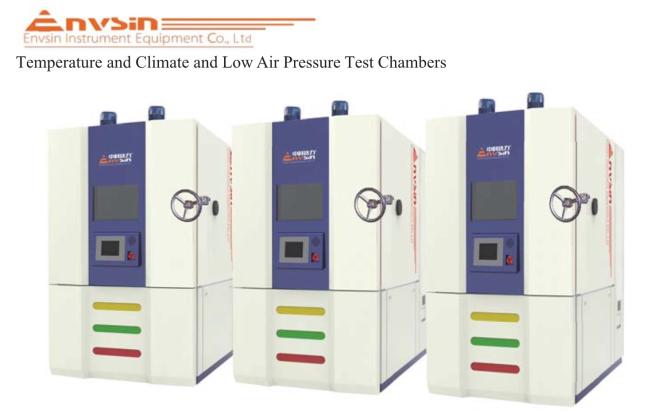

High and Low Temperature (Humidity) Low Air Pressure Test Chamber Overview
This test chambe is suitable for simulating environmental tests of high temperature, low temperature, damp heat, low air pressure single climate factor or multiple climatic factors for the whole machine, components and materials. It is used to evaluate the temperature or humidity of the product or material parts. Reliability of use, storage, and transportation in a low-pressure environment, and simultaneous testing of electrical performance parameters of the test piece.
Features
| ☆ High-performance water ring vacuum pump controls low pressure | ☆ Optional remote-assist service function and teaching CDs |
| ☆ Optonal APP mobility management | ☆ Optional network video monitoring and data synchronization |
| ☆ Fashionable desig of modular construction | ☆ Automatic water supply with Ultrapure filter devices water shortage reminder function |
| ☆ 7" colour touch screen display and 32 bit control system; interfce Ethernet/USB | ☆ Customer-friendly software: observation window in testing space with a reality visualization for real-time monitoring |
| ☆ Built-in radiation shield ensures temperature homogeneity in low air pressure | ☆ Intelligent and high-performance servo refrigerating control technology: energy saving and rapid heating/cooling rate |
| ☆ Customer-friendly software functions: intelligent power-recovery restoration, auto-connect on memory and auto-reset restart | ☆ Unique operation mode: make testing area's temperature back ro room temperature after tests are finished |
| ☆ Intelligent and independent protection design for overload, overheat, powersupply abnormity, overvoltage, component malfunction monitoring | ☆ Automatic reminder of equipment maintenance plans and software of recording malfunction |
Specifications
| Tempreature Chambers | ETQ7025 | ETQ7050 | ETQ7100 | ETQ7200 |
| Climate Chambers | ECQ7025 | ECQ7050 | ECQ7100 | ECQ7200 |
| Test Space Volume (L) | 250 | 500 | 1000 | 2000 |
| Temp. Test Parameters: | ||||
| Temp. Range ( ℃ ) | -70/+150 | |||
| Temp.Constancy (℃) | ±1.0 ~ ±0.8 (Atmospheric Pressure No Load) | |||
| Temp. Homogeneity (℃) | ±0.5 ~ ±2.0 (Atmospheric Pressure No Load) | |||
| Temp. Accuracy (℃) | ±2.0 (Atmospheric Pressure No Load) | |||
| Heat Up Time (min) (+20℃ to~150℃) | 60 | 60 | 50 | 60 |
| Cooling Down Time (min) (+20℃ to~60℃) | 90 | 80 | 60 | 80 |
| Pressure Range (Kpa) | Atmospheric Pressure~ 1.0 Atmospheric Pressure ~ 0.5 | |||
| Pressure Accuracy (Kpa) | ±2.0 (Atmospheric Pressure~ 40Kpa);±5%(40KPa~4KPa);±0.1(4KPa~1KPa) | |||
| Pressure Release Time (min) | 45(Atmospheric Pressure→1KPa) | |||
| Rapid Release of Pressure Function (Optional) | Pressure Release Range:75.2KPa →18.8KPa; Pressure Release Time:15sec | |||
| Climate Test Parameters for ECQ series: | ||||
| Temp. Range (℃) | +10 ~ +95 | |||
| Temp. Constancy (℃) | ±1.0 ~ ±0.8 (Atmospheric Pressure No Load) | |||
| Temp. Homogeneity (℃) | ±1.0 ~ ±2.0 (Atmospheric Pressure No Load) | |||
| Humid. Range (%RH) | (10) 20 ~ 98 (Atmospheric Pressure No Load) | |||
| Humid. Constancy (%RH) | ±1.0 - ±3.0 (Atmospheric Pressure No Load) | |||
| Test Space Dimension (mm) | 600W×600D×700H | 800W*700D*900H | 1000W×1000D×1000H | 1400W*1200D*1200H |
| External Dimension (mm) | 1000W×1800D×1800H | 1500W*2750D*1900H | 1400W×3250D×2000H | 1810W*3710D*2310H |
| Power | AC380V±10%,50HZ,3/N/PE | |||
| Cooling Methods | Water-Cooled | |||

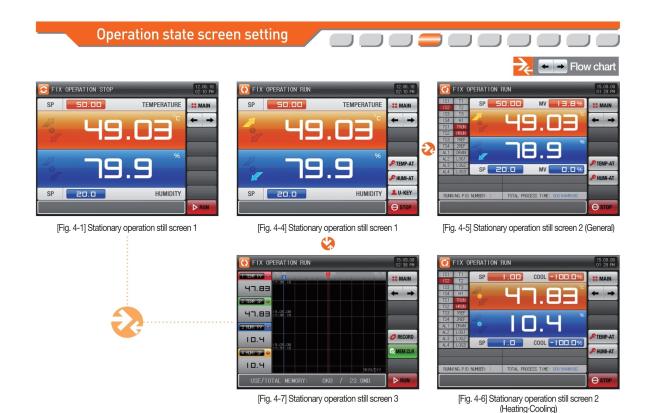

Operation System Display
Application
