35m Tubular Telecom Steel Tower 2 Platforms For Mounting Telecom Antennas
35m Tubular Telecom Steel Tower 2 Platforms For Mounting Telecom Antennas
35m Tubular Steel Tower With 2 Platforms For Mountning Telecom Antennas
Galvanized Steel Monopole Tower for Mounting Communication Antennas, RRUs, Microwaves etc.
25-65m High Mast Steel Pole for Telecommunication Microcell or Macrocell Stations
The steel telecom tower is generally made from weldable structural carbon steel pipes, the typical shapes of steel monopole towers are tapered conical and polygonal. The steel pipes are bended and welded by flat steel plates because the size is large. The popular steel grade is GB Q235 and Q345, which are respectively equivalent to ASTM A36 and ASTM A572 Grade 50.
35m high 5G Antenna Steel Pole with 3 Platforms
| Material | Tubular steel pipes, angular steel plates, flat steel plate or solid steel bars, bolts and nuts |
| Steel Type | Weldable low carbon structural steel |
| Steel Grade | GB Q235, Q345, BS 4360, ASTM A36 etc. |
| Yield Strength | Fy≥235MPa |
| Tensile Strength | Fu≥400MPa |
| Elongation | σ≥20% |
| Surface Finish | Hot dip galvanization |
| Galvanized layer | T≥65μm |
| Height | 20m to 100m, customized to requests |
| Design | 3 legs self-supporting or free standing lattice tower |
| Structure | 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices. |
| Supply mode | CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down) |
| Fixing/Fastening | Bolts and nuts, connecting flanges |
| Configuration | Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc. |
| Wind Load | 0.35-1.0kN/sqm |
| Lifespan | 20-50 years |
| Warranty | 3 years |
| Applications | GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations |
The rooftop steel tower is a small size tower for communication microcell station for enlarging the telecommunication signal coverage in the communities. It is typically designed as bipod or tripod tower mounted on the roof top, the height of rooftop towers is generally 5m to 15m. The rooftop tower is composed of a main pole which is made from tubular steel pipe and some angle steel or flat steel plates as bracings, connected by flanges, bolts and nuts. A foundation with anchoring bolts is also required for fixing the tower. Sometimes the rooftop tower is designed as wire guyed tower to make it with higher wind load.

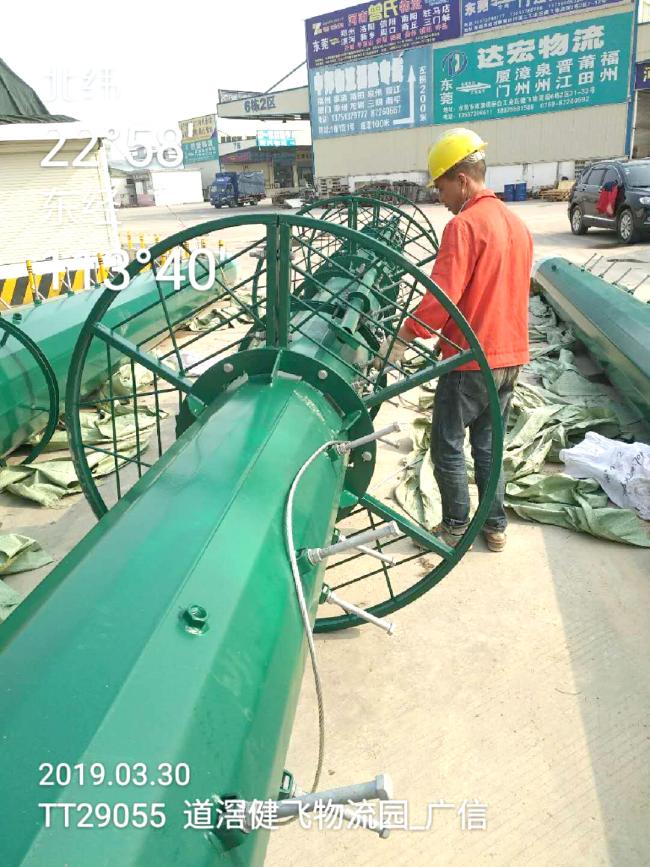

Platforms for assembling antenna brackets

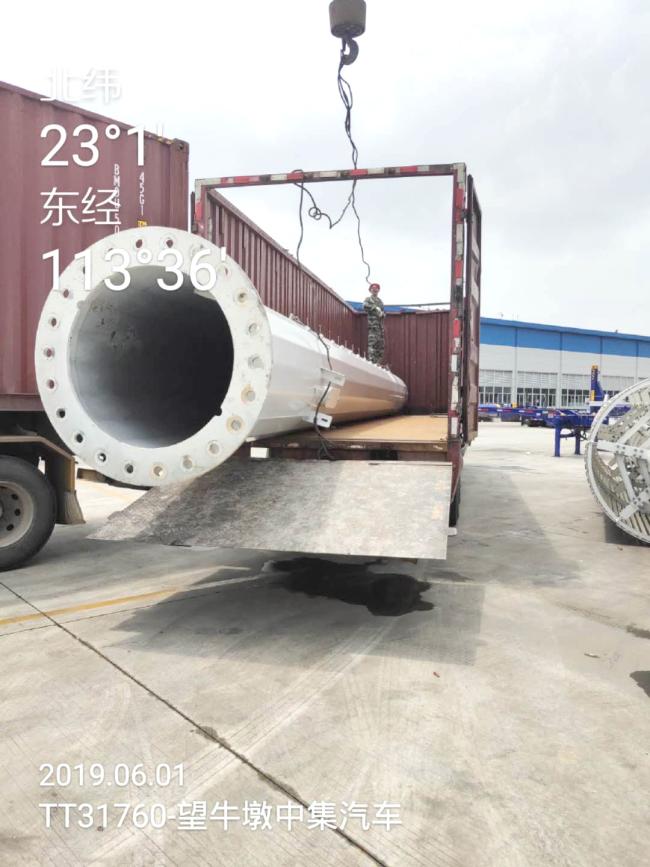

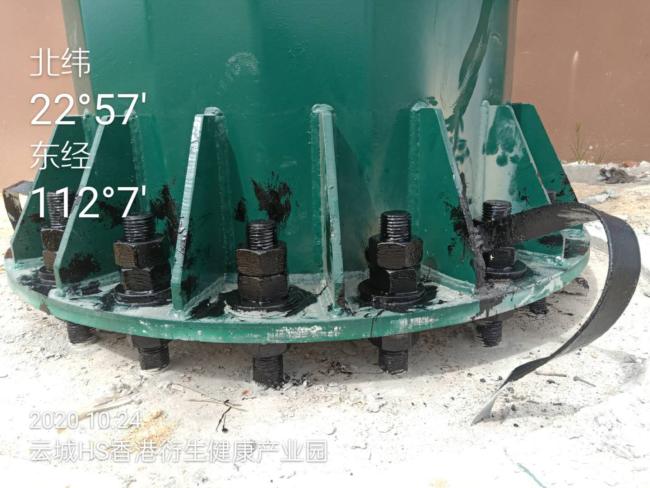

Steel tower bottom section with connecting flange plate

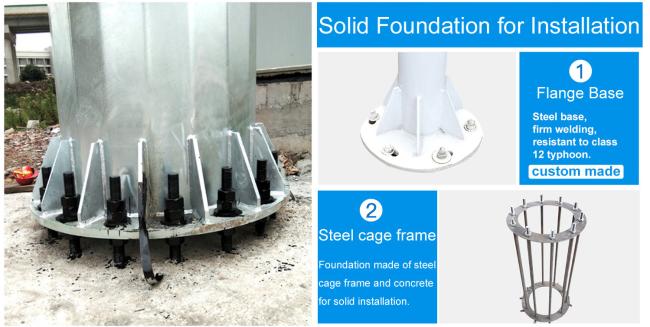

Foundation construction
