15m 35m High Mast Monopole Antenna Tower For Communication
15m 35m High Mast Monopole Antenna Tower For Communication
15m-35m High Mast Steel Tower Tubular Pole For Communication, Landscape And Lighting
Custom Design Galvanized Steel Communication Poles for Radio and 3G/4G/5G Telecom Antenna Stations
As a professional manufacturer of steel poles and towers, we’re producing all kinds of steel poles for a vast range of applications such as communication macrocell and microcell stations, street/roadway/ highway lighting and traffic signal control and monitor, landscaping etc. In addition, we can also create new designs of steel poles, towers and gantry structures to meet your aesthetic and functional demands.
Our main products include:
- Steel tower: 3 legs and 4 legs lattice tower (self-supporting tower or wire guyed tower)
- Steel pole: street light pole, high mast light tower, communication antenna pole, landscape antenna/light tower
- Artificial tree/plant camouflaged cell tower.
- Steel structure for traffic or signage billboard gantry and pole.
Specifications
| Descriptions | Steel poles for mounting communication antennas, microwaves, RRUs etc. |
| HS Code | 7308900000 |
| Material | Weldable structural carbon steel |
| Grade | GB Q235, Q345, BS4360, ASTM A36 etc. |
| Yield Strength | 235-355MPa |
| Height | 5m to 55m or other specified height |
| Thickness | 4mm to 20mm, depending on height of pole. |
| Pole Shape | Conical/tapered, straight round/cylindrical, square or rectangular, polygonal etc. |
| Diameter or Dimensions | Subject to height of pole and required mechanical properties. |
| Design | Single, dual or multiple platforms and brackets |
| Surface Finish | Hot dip galvanization plus powder or PVDF coating (optional) |
| Galvanization | 65-100 Microns |
| Coating | 35-80 Microns (optional) |
| Color | Silver, grey, black, white, blue, yellow etc. |
| Applications | GSM, radio, 3G/4G/5G microcell, macrocell and other communication purposes or power transmission and distribution. |
The steel high mast poles are designed with platforms or brackets for mounting antennas or other facilities as per requests. The designs of platforms and brackets are also customized to requirements for different connectors of antennas or other facilities. With custom special designs, the steel towers or poles are used for not only telecommunication or power transmission or distribution but also for landscape decorations.
Applicable Examples of Steel Tower and Pole

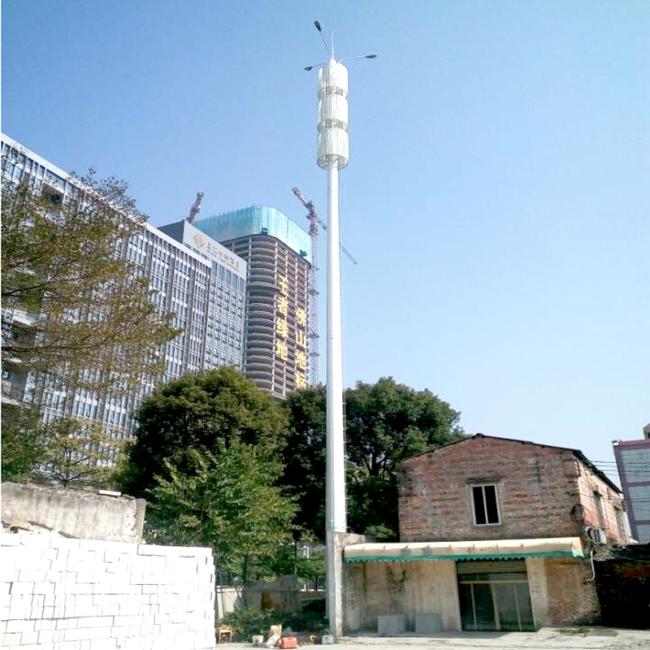

Communication Pole
Street/Roadway/highway/stadium light pole
Traffic signal light pole,Traffic CCTV monitor camera and sign pole

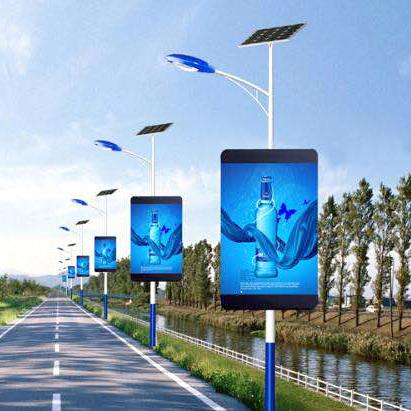

Smart City Management System Light Pole

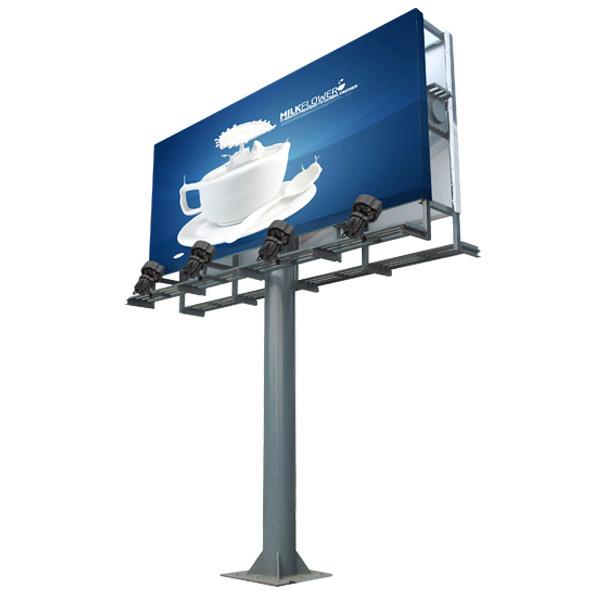

Signage/Advertising Billboard or LED display pole or gantry
High Mast Landscape/Lighting/Communication Steel Tower

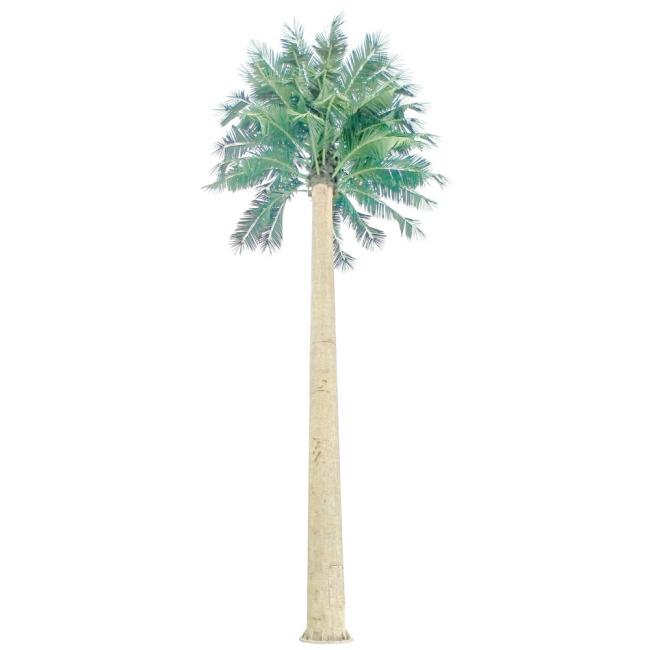

Artificial Tree Camouflaged Telecommunication Antenna Tower
