Tubular Steel Monopole Transmission Tower Design 20m Q235 Material
Tubular Steel Monopole Transmission Tower Design 20m Q235 Material
Galvanized Tubular Steel Power Transmission And Distribution Tower Or Pole
Established in 2009, Guangzhou Guangxin Communication Equipment Co., Ltd. is a professional manufacturer of steel towers and poles for communications, power transmission and distributiion, civil lighting and traffic signal control facilities as well as other infrastructures. Our products range includes
1, Galvanized Steel communication towers and poles
2, Power transmission and distribution steel towers and poles
3, Street, roadway, highway, stadium, traffic and utilities lighting poles
4, Multi-functional smart city light poles
5, High mast steel poles and towers for lighting, communication and landscaping.
6, Artificial trees for landscaping and comouflaged communication antenna towers
7, Signage, billboard, LED display and traffic signal management poles and gantry frames.
8, Other steel structures etc.
| Material | Steel pipes, Angle steel plates, flat steel plates, bolts and nuts steel monopole tower |
| Steel Type | Weldable low carbon structural steel |
| Steel Grade | GB Q235, Q345, BS 4360, ASTM A36 etc. |
| Yield Strength | Fy≥235MPa |
| Tensile Strength | Fu≥400MPa |
| Elongation | σ≥20% |
| Surface Finish | Hot dip galvanization |
| Galvanized layer | T≥65μm |
| Height | 20m to 100m, customized to requests |
| Design | 4 legs self-supporting or free standing lattice tower |
| Structure | Multiple platforms and brackets for mounting power cables or wires, customized to requests. |
| Supply mode | CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down) |
| Fixing/Fastening | Bolts and nuts, connecting plates |
| Configuration | Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc. |
| Wind Load | 0.35-1.0kN/sqm |
| Lifespan | 20-50 years |
| Warranty | 3 years |
| Applications | GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations. |
SST: Self-supporting Steel Tower

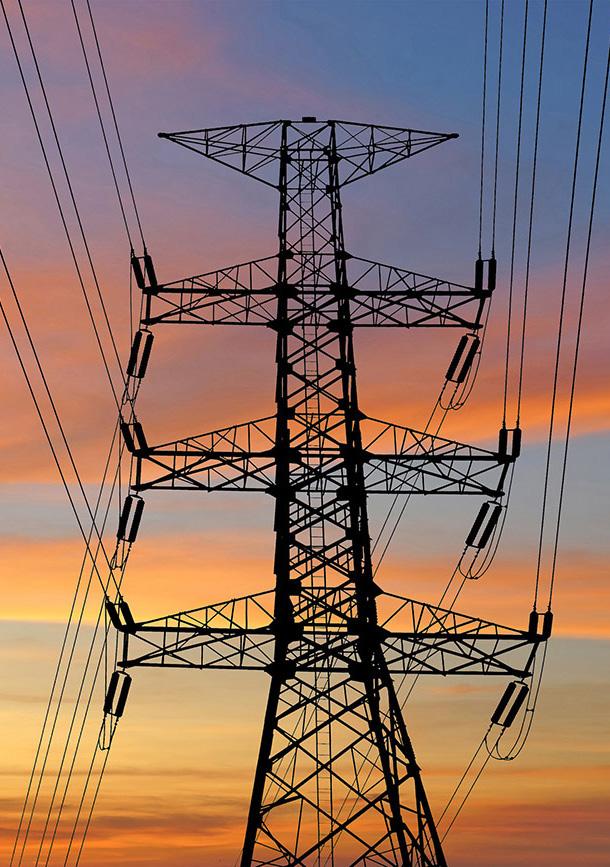

Self-supporting steel tower is the most popular tower for communication or power transmission and distribution applications. It’s generally designed for 3 legs or 4 legs, composed of galvanized tubular steel pipes and angular steel plates by welding and fastening with bolts and nuts. With height of 35m to 100m, the steel lattice towers are widely used for mounting communication macrocell stations and power transmission or distribution wires or cables.
