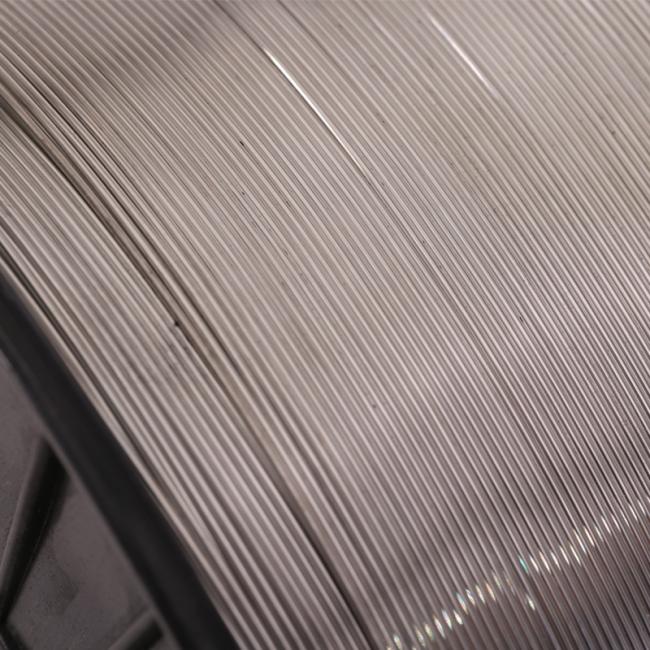

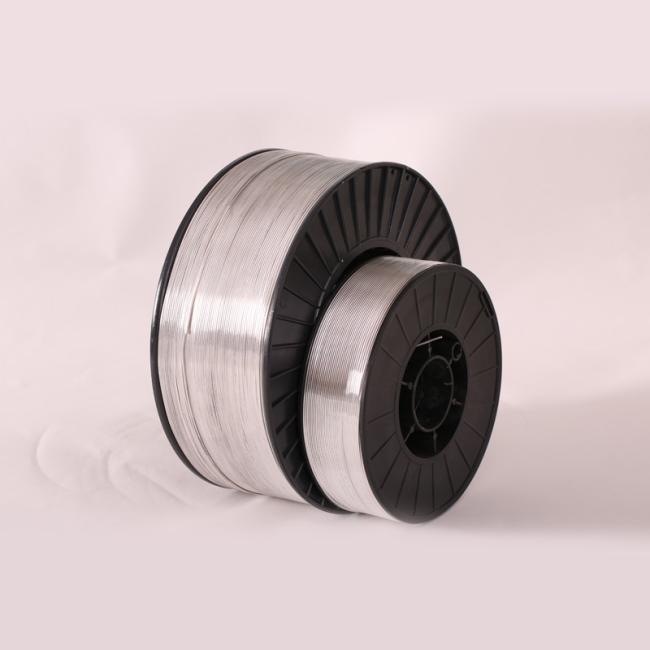

Extruded AZ92A AZ31B AZ61A Magnesium Welding Wire 1kg 5kg Dia 1.8MM
AZ31B AZ61A AZ91D AZ92A Extruded Magnesium Alloy Welding Wire Diameter 1.8 MM
Description
High specific strength, elastic modulus, good heat dissipation and eliminate shock resistance to withstand the shock load capacity than aluminum,organic matter and alkali resistance and good corrosion .Mainly used in aviation, aerospace, transportation, chemical, rockets and other industrial sectors. In the utility metal is the lightest metal and the proportion of magnesium is about 2/3 of aluminum, iron 1/4. It is the lightest metal in practical metal, high strength, high rigidity.
Our company has already developed a formula and process for producing high-quality magnesium alloys, which are inimitable. Magnesium alloy welding wire produced with this formula and process can realize compatible welding between different magnesium alloy materials, that is, different materials of magnesium alloy can be welded with one kind of welding wire, and have the advantages of small thermal effect zone, deep welding penetration, and no blistering. In particular, the 1.2mm magnesium alloy welding wire produced uses a one-time extrusion process to replace the original extrusion and then drawing process. Relying on the excellent technical team in the industry, the company continuously expands the application range of magnesium alloy materials through technological innovation, product innovation and process innovation, and contributes to the development of magnesium alloy industry.
Technical Data & Application
We comply with the specifications:
GB5153-03, GB5154-04, AMS4377G, ASTM B90/B90M-15, MIL-DTL 32333, MIL-T-38749, QQ-M-44B, ASTM B107/B107M-13 and ASTM B91-97
Material brand: AZ31B, AZ61A, AZ80A, AZ91D, AZ41M, ZK60, AM50, AM60, ZM21, MIA, ME20M, EQ21, WE43, WE54, ZE41, etc.
Condition as extruded. Smooth finish, free from surface grease or other foreign matter which would adversely affect the welding operation.
| AZ31 | GB/T 5153 | |||||||
| Elements | Al | Zn | Mn | Si | Fe | Cu | Ni | Others,total |
| Min% | 2.40 | 0.50 | 0.15 | |||||
| Max% | 3.60 | 1.50 | 0.4 | 0.10 | 0.005 | 0.05 | 0.005 | 0.3 |
| AZ61 | GB/T 5153 | |||||||
| Elements | Al | Zn | Mn | Si | Fe | Cu | Ni | Others,total |
| Min% | 5.50 | 0.5 | 0.15 | |||||
| Max% | 6.50 | 1.50 | 0.40 | 0.10 | 0.005 | 0.05 | 0.005 | 0.3 |
| AZ91 | GB/T 5153 | ||||||||
| Elements | Al | Zn | Mn | Si | Fe | Cu | Ni | Be | Others,total |
| Min% | 8.5 | 0.45 | 0.17 | 0.0005 | |||||
| Max% | 9.5 | 0.90 | 0.40 | 0.08 | 0.004 | 0.025 | 0.001 | 0.003 | 0.3 |
| AZ92 | AWS A5.19-1992 | ||||||||
| Elements | Al | Zn | Mn | Si | Fe | Cu | Ni | Be | Others,total |
| Min% | 8.3 | 1.7 | 0.15 | 0.0002 | |||||
| Max% | 9.7 | 2.3 | 0.50 | 0.05 | 0.005 | 0.05 | 0.005 | 0.0008 | 0.3 |
| AZ31S | GB/T 5153 | ||||||||||||
| Elements | Al | Zn | Mn | Si | Fe | Cu | Ni | Others, Total | Mg | ||||
| Min % | 2.40 | 0.50 | 0.15 | ||||||||||
| Max % | 3.60 | 1.50 | 0.40 | 0.10 | 0.005 | 0.05 | 0.005 | 0.3 | Bal. | ||||
| AZ61S | GB/T 5153 | ||||||||||||
| Elements | Al | Zn | Mn | Si | Fe | Cu | Ni | Others, Total | Mg | ||||
| Min % | 5.50 | 0.50 | 0.15 | ||||||||||
| Max % | 6.50 | 1.50 | 0.40 | 0.10 | 0.005 | 0.05 | 0.005 | 0.3 | Bal. | ||||
| AZ91D | GB/T 5153 | ||||||||||||
| Elements | Al | Zn | Mn | Si | Fe | Cu | Ni | Be | Others, Total | Mg | |||
| Min % | 8.50 | 0.45 | 0.17 | 0.0005 | |||||||||
| Max % | 9.50 | 0.90 | 0.40 | 0.08 | 0.004 | 0.025 | 0.001 | 0.003 | 0.3 | Bal. | |||
| AZ92A | AWS A5.19-1992 | ||||||||||||
| Elements | Al | Zn | Mn | Si | Fe | Cu | Ni | Be | Others, Total | Mg | |||
| Min % | 8.30 | 1.70 | 0.15 | 0.0002 | |||||||||
| Max % | 9.70 | 2.30 | 0.50 | 0.05 | 0.005 | 0.05 | 0.005 | 0.0008 | 0.3 | Bal. | |||
Magnesium alloy welding wires are mainly used for welding of industrial pure nickel forgings and castings, such as container building, construction machine, railway construction and pressure vessel for semi-auto or automatic gas shielded welding wire.
Specification
Small density, lighter than Al, higher specific strength
Higher fatigue limit
Bigger impact load than Aluminium
Better thermal conductivity
Good casting property
Dimensionally stable
Easy revocery
Subsititute for engineering plastic
High corrosion resistance
Our Service
1. Small orders quantity available
2. Professional engineering team and sales team
3. Payment: 100% by T/T in advance & Western Union
4. OEM/ODM available
5. Free samples provided
6. Competitive price and high quality
FAQ
1. Q: Are you a factory or trading company?
A: We are direct manufacturer located in Zhengzhou Henan province, and have our equipment
2. Q: Are your products customized?
A: Yes, the products in the website are only the common type or the previous types, we can supply the new products according to your requirements or drawings
3. I do not know how to use your product ?
Do not worry ! We can supply technical guidance together with products
4. Q: How can I get some samples?
A: Several samples are freely offered for buidling the business long-term relationships and let our customers believing the quality of our products
5. Q: How does your factory do regarding quality control?
A: We passed ISO 9001 and SGS certificate
