Bracelet Cast AZ63 DIN BS Sacrificial Anodes For Water Tanks
AZ63 High Quality Cast Magnesium-Based Sacrificial Anodes For Tank
Product Description
Magnesium is electrochemically the most active metal employed in common structural alloys of iron and aluminum. Mg is widely used as a sacrificial anode to provide cathodic protection of underground and undersea metallic structures, ship, submarine, bridge, deck, aircraft and ground transportation systems. Following the same principle of utilizing Mg characteristics in engineering advantages in a decade-long successful R&D effort, Mg powder is now employed in organic coatings (termed as Mg-rich primers) as a sacrificial anode pigment to protect aerospace grade aluminum alloys against corrosion.

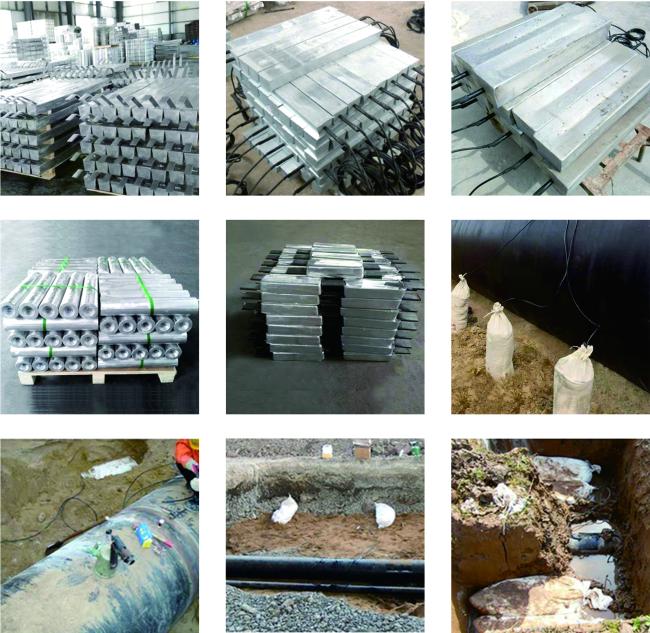

Sacrificial anode can be distributed in two ways: single or concentrated in groups. There are two types of anode embedding: vertical and horizontal. The embedding directions are axial and radial. The anode burial position is generally 3~5m away from the outer wall of the pipeline, and the minimum should not be less than 0.3m. The burial depth should not be less than 1m from the top of the anode to the ground. For northern areas, it must be below the frozen soil layer. When buried in groups, the anode spacing is 2~3m. In dry areas where the groundwater level is lower than 3m, sacrificial anodes should be buried deeply. For rivers and lakes, sacrificial anodes should be buried in safe parts of the riverbed (lake bottom) as much as possible to prevent damage during flooding and dredging. When using sacrificial anodes in cities and pipe network areas, it should be noted that there should be no other structures between the anode and the protected structure, such as cables, water, steam, pipes, etc.
The distance between the sacrificial anode (magnesium anode) groups on the pipeline is 1 to 2 groups/km for long-distance pipelines, and 200 to 300 groups are appropriate for urban pipelines and internal pipeline network.
|
Product Type:
|
Magnesium Anodes
|
|
Material
|
Magnesium alloy AZ63
|
|
Differnet Kinds
|
Casting rod, Extruded rod, Rod with steel cap, Flexible anode rod
|
|
Chemical Composition
|
Al:2.5-3.5%, Zn:0.6-1.4%,Mn:0.2-1.0%,Fe:0.005%max,, Cu:0.01%max,Ni:0.001%max,Si:0.1%max, Other:0.3%max,Mg:Balance
|
|
Property
|
Open-circuit voltage: 1.5-1.55V
Close-circuit voltage:1.45-1.50V
Actual capacitance: 1.105A.h/g
Current efficiency: 50% min
|
|
Steel Cap
|
stainless steel, galvannized, in black, coppper etc.
|
|
Application
|
It mainly used in water heater,boiler,heat exchanger,water tank,etc.
It can softing water,de-dirt residual,ensure water sanitation,water scale inhibition,protect inner tank,extend service life etc.
|
|
Feature
|
The extruded anode rod can be with or without steel core,can be with steel cap or only with screw;the size of cap/screw can be customilized by your specific requirements.
Mainly different kinds of steel cap and screw available.
|
Specification
Type: AZ31B, ZK61M, AZ80A, AZ91D, M2M, ME20M, AZ40
Specification: Casting round bar billet(Φ3-160*3000)
Remarks: According to the requirements of sawing and heat treatment
UK Standard ZK60 WE43 Magnesium Metal Plate Small Modulus Of Elasticity
The magnesium alloy sacrificial anode (abbreviation: magnesium anode) developed and produced by our company according to the national standard GB/T17731-2009 "Magnesium alloy sacrificial anode" is suitable for the cathodic protection of metal structures in soil, fresh water and other media. As an ideal sacrificial anode material, this product has the following characteristics:
- The specific gravity is small and the potential is relatively negative.
- The driving voltage to iron is high, and the current efficiency is low.
- Large power generation per unit mass and long service life.
Chemical Composition
According to the application requirements, produce high strength, heat resistant rare earth-Magnesium alloy extruded bars, tubes, wire rods, Welding wire and profiles set by national standard, ASTM, EN standard and autonomous development. The mechanical properties of the products are better than those set by various standards, and the products can be adjusted according to the concrete requirements of clients. The Magnesium products are used in different fields such as aerospace, rail transit, road traffic, pipeline transportation, textile machinery, 3C products, LED illumination etc.
High strength, heat resistant rare earth- magnesium alloy die castings set by national standard, ASTM, EN standard and autonomous development, such as steering wheel skeleton, the tank pan, power tools housing, electric wheel hub, 3C product shell and skeleton etc. The mechanical properties of the products are excellent and the microstructure of the products is homogeneous.
| Alloy Element | Type | Chemical Composition% | Other elements b | ||||||||||||
| Mg | Al | Zn | Mn | Ce | Zr | Si | Fe | Ca | Cu | Ni | Be | Sub-total | total | ||
| MgAlZn | AZ31B | Balance | 2.5-3.5 | 0.6-1.4 | 0.1-0.2 | --- | --- | ≤0.08 | ≤0.003 | ≤0.04 | ≤0.01 | ≤0.001 | --- | ≤0.05 | ≤0.30 |
| AZ40M | Balance | 3.0-4.0 | 0.2-0.8 | 0.15-0.5 | --- | --- | ≤0.10 | ≤0.05 | --- | ≤0.05 | ≤0.005 | ≤0.01 | ≤0.01 | ≤0.30 | |
| AZ80A | Balance | 7.8-9.2 | 0.2-0.8 | 0.12-0.5 | --- | --- | ≤0.10 | ≤0.005 | --- | ≤0.05 | ≤0.005 | --- | --- | ≤0.30 | |
| AZ91D | Balance | 8.5-9.5 | 0.45-0.9 | 0.17-0.4 | --- | --- | ≤0.08 | ≤0.004 | --- | ≤0.025 | ≤0.001 | 0.0005- | ≤0.01 | ≤0.30 | |
| 0.003 | |||||||||||||||
| MgMn | M2M | Balance | ≤0.20 | ≤0.30 | 1.3-2.5 | --- | --- | ≤0.10 | ≤0.05 | --- | ≤0.05 | ≤0.007 | ≤0.01 | ≤0.01 | ≤0.20 |
| MgZnZr | ZK61M | Balance | ≤0.05 | 5.0-6.0 | ≤0.10 | --- | 0.3-0.9 | ≤0.05 | ≤0.05 | --- | ≤0.05 | ≤0.005 | ≤0.01 | ≤0.01 | ≤0.30 |
| MgMnRe | ME20M | Balance | ≤0.20 | ≤0.30 | 1.32-2.2 | 0.15-0.35 | --- | ≤0.10 | ≤0.05 | --- | ≤0.05 | ≤0.007 | ≤0.01 | ≤0.01 | ≤0.30 |
Aplication
1. Transportation
Seat frame, armrest, small table panel, pedal, in-built profiles, driving frame, sleeper frame work, dashboard frame work etc.
2. Electronic
Magnesium alloys have excellent thin wall casting performance. They wall thickness of magnesium alloy die castings can reach 0.6-1.0mm, and the die castings can remain certain strength, stiffness and impact resistance. These performances are very consistent with development demand of lightweight, thin short and small for laptop. Mobile phone, digital camera, that makes the application of magnesium alloy grow sustainably.
3. Aerospace industry
Engine shell, parts. Skin and cabin, frame, holder, wingtip, aileron, fuel tank, gearbox, airscrew, seat, undercarriage, all kinds of shell, siding, clapboard etc.
4. Military industry
Panzer tank vehicle, torpedo, guided missile, aircraft / spacecraft, military electronic equipment, military statellite.
5. Medical industry
Medical device and implant material.
Our Advantages
Corrosion protection
Protect water heater, water containers of steel structure
Protect the gas pipeline in-home service polarization high resistance electrolytes (soil and water in the steel structure)
FAQ
Q: Do you provide OEM/ODM service?
A: Yes, OEM/ODM is welcome, we have the professional R&D team.
They work for you all the time (design, tooling/mould, sample, mass production).
Q: How can I know your company further?
A: Please leave message in website with you email or phone number, the sales manager will send the catalogue to you by email or call you directly.
Also welcome to visit our company!
Q: How can I get the quotation, sample, mass production?
A: Please show us the sizes/drawing of the parts you need, our business director will show you detailed quotation with the lead time of sample and mass production.
Q: How do you control the quality?
A: The products are produced under ISO9001 & SGS certificate.
