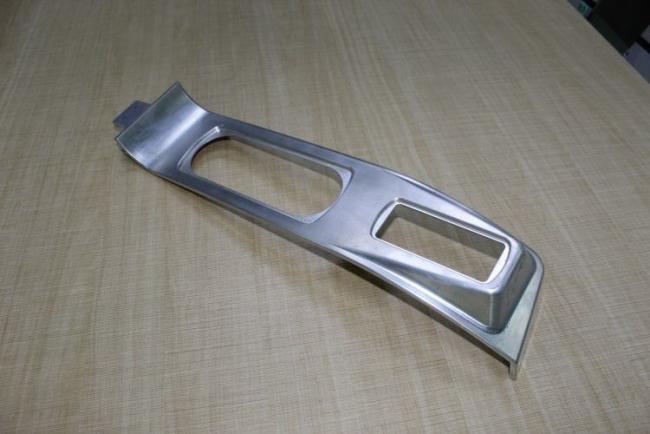

Anodizing Frame CNC Turning Milling Parts Metal Al6063 Case For Motorcycle
Metal Parts CNC Milling Aluminium Alloy Case CNC Turning Components for Motorcycle
JiaHeng has a professional technical team, conbined with rich experience in the design and manfacture of die-casting molda.
Equipped with advanced processing equipment to satisfy customer's need. Our company owns CNC machining center, milling machine,grinding machine,wire cutting machine, spark machine,etc.
Overview:
| Material | 1) Aluminum: AL 6061-T6, 6063, 7075-T etc. |
| 2) Zinc 3, Zinc 5, Zinc 7, ZA-8, ZA-12, ZA-27 | |
| 3) Stainless steel: 303, 304, 316L, 17-4(SUS630) etc. | |
| 4) Steel: 4140, Q235, Q345B, 20#, 45# etc. | |
| 5) Titanium: TA1,TA2/GR2, TA4/GR5, TC4, TC18 etc. | |
| 6) Brass: C36000 (HPb62), C37700 (HPb59), C26800 (H68), C22000(H90) etc. | |
| 7) Copper, bronze, Magnesium alloy, Delrin, POM, Acrylic, PC, etc. | |
| Finish | Sandblasting, Anodize color, Blackenning, Zinc, Nickl Plating, Polish. |
| Power coating, Passivation PVD, Titanium Plating, Electrogalvanizing. | |
| Electroplating chromium, electrophoresis, QPQ(Quench-Polish-Quench). | |
| Electro Polishing, Chrome Plating, Knurl, Laser etch Logo, etc. | |
| Main Equipment | CNC Machining center(Milling), CNC Lathe, Grinding machine. |
| Cylindrical grinder machine, Drilling machine, Laser Cutting Machine,etc. | |
| Drawing format | STEP,STP,GIS,CAD,PDF,DWG,DXF etc or samples. |
| Tolerance | +/-0.01mm ~ +/-0.05mm |
| Surface roughness | Ra 0.1~3.2 |
| Inspection | Complete inspection lab with Micrometer, Optical Comparator, Caliper Vernier, CMM. |
| Depth Caliper Vernier, Universal Protractor, Clock Gauge, Internal Centigrade Gauge. | |
| Capacity | CNC turning work range: φ0.5mm-φ150mm*300mm. |
| CNC milling work range: 510mm*1020mm*500mm. |
Product
Equipment List
| Ka Heng Mould Manufactruring Limited Shenzhen Johnhalm PDTec.,ltd |
||||
| No | Equipment name | Brand | Qty | Specification |
| 1 | Hot Chamber Die Casting Machine | LK | 1 | 88T |
| Hot Chamber Die Casting Machine | LK | 1 | 160T | |
| 2 | Cold Chamber Die Casting Machine | LK | 1 | 500T |
| Cold Chamber Die Casting Machine | LK | 2 | 280T | |
| Cold Chamber Die Casting Machine | LK | 1 | 500T | |
| Cold Chamber Die Casting Machine | LK | 1 | 800T | |
| Cold Chamber Die Casting Machine | LK | 1 | 1250T | |
| 3 | CNC lathe Machine | TSUGAMI CHINA | 5 | |
| 4 | CNC Machining Centre | Brother and Taikan | 16 | |
| 5 | Milling Machine | FTM-4TA | 4 | |
| 6 | EDM Machine | CKEATE450 | 2 | |
| 7 | Radial drilling machine | Z3038X9 | 1 | |
| 8 | Grinding Machine | M618A | 3 | |
| 9 | Drilling Machine | SGM350 | 10 | |
| 10 | Tapping Machine | Z3038X9 | 10 | |
| 11 | Ultrosonic Machine | 1 | ||
| 12 | Sand Blast Machine | MQ3225 | 2 | |
| 13 | Lapping Machine | 2 | ||
Workshop:
Production Information
1. Start from part design analysis
2. Mold design drawing and DFM report available so you can see how is the mold going to be before mold making
3. If product is complex,moldflow report will be present as well
4. In house mold making shop ensure you mold quality under well control.
5. Normally it takes 25-35 days to make mold,precise time depends on part design
FAQ
1. How can I get the quotation?
Please send us the drawing, quantity, weight and material of the product.
2. What kind of file can you read?
PDF, IGS, DWG, STEP,etc...
3. What is your way of packing?
Normally we pack goods according to customers' requirement.
For reference: wrapping paper, carton box, wooden case, pallet.
4. When can I get the samples and your main order time?
For samples: 25-35 days after start to make mold.
For order:30 days, the accurate time depends on product.
5. What's your payment term?
1)Tooling cost 50% deposit and 50% after T1 samples approved.
2) Parts cost Net30
3) Payment Method: Wire
