Excavator Final Drive 1st First Carrier Planetary Gear Sun Gear Reduction Device SY365C

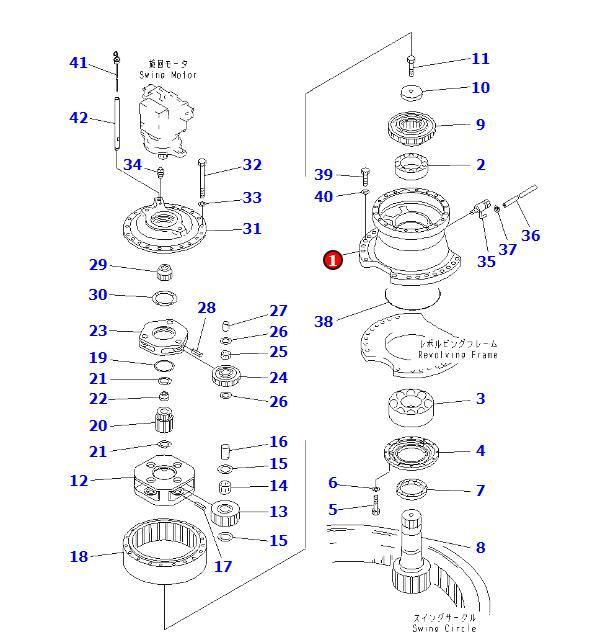

Following is PC300-7 swing gear box assemblly list for your reference.

	1	208-26-63170	CASE
	2	06000-23124	BEARING	1
	3	06000-22326	BEARING	1
	4	208-26-52262	COVER	1
	5	01010-81040	BOLT	12
	6	01643-31032	WASHER	12
	7	208-26-61290	SEAL	1
	8	208-26-52242	SHAFT	1
	9	208-26-61151	COUPLING	1
	10	208-26-52230	PLATE	1
	11	205-32-51211	BOLT	1
	12	207-27-63170	CARRIER	1
	13	208-26-63140	GEAR,2P	3
	14	207-27-63210	BEARING,2P	3
	15	20Y-27-21250	WASHER	6
	16	207-27-63230	PIN	3
	17	20Y-26-21330	PIN	3
	18	207-27-63150	GEAR,RG	1
	19	207-27-63250	WASHER	1
	20	208-26-63130	GEAR	1
	21	20Y-27-13310	WASHER	2
	22	207-26-61180	GUIDE	1
	23	208-26-63150	CARRIER,1C	1
	24	208-26-63120	GEAR	3
	25	20Y-27-22210	BEARING	3
	26	20Y-27-21240	WASHER	6
	27	20Y-27-21220	PIN	3
	28	20Y-27-21280	PIN	3
	29	208-26-63110	GEAR	1
	30	20Y-27-11250	SPACER	1
	31	208-26-63160	COVER	1
	32	01011-61880	BOLT	19
	33	01643-31845	WASHER	19
	34	07042-00312	PLUG	1
	35	07730-40004	VALVE	1
	36	207-26-31220	TUBE	1
	37	07281-00197	CLAMP	1
	38	07000-15335	O-RING	1
	39	01010-82485	BOLT	17
	40	01643-32460	WASHER	17
	41	208-26-62180	GAUGE	1
	42	208-26-62190	FILLER	1


FAQ

Q. Which countries have you exported?

ASIA: Iraq, UAE, Turkey, Thailand, Malaysia, Indonesia, Vietnam, Bangladesh, Kuwait, Lebanon

EUROPE: Russia, Kazakhstan, Greece, Norway, Ireland

OCEANIA: Australia, Fiji, Kiribati, New Caledonia

AMERICAS: Canada, Jamaica, Brazil, Peru, Chile,

AFRICA: Angola, South Africa, Kenya, Tanzania, Zambia, Sudan, South Sudan, Egypt, Algeri, Nigeria

Q: How can I get a quotation?
A: A complete quotation based on the details as follows in your inquiry:
1. Part No. 2.Engine model 3.Machinery model 4. Description and size

Picture. 6.. Quantity 6. Other requirements, such as Packing, Shipping and so on.

Q: 4. When can you deliver after sending deposit?
It depends on your order quantity, if we have stock then need about 3~10 working days get it ready, if no stock we will start to produce when the deposite received. Usually it takes 15-60 days for different items.

Q: How do you pack the goods?
We have 20 years experience on export, finished products will be carefully handled by three steps:
1: Wrapped with packing paper or plastic bag;
2: HKT / FUP box or neutral box;
3: Put in an appropriate carton box or wooden boxes and be fixed firmly.

Q: How can I know the status of my order?
We will keep you udpate the process of the preparation, to ensure all issues are resolved prior to the delivery.products pictures can be provided if required. We shall send out the goods immediately after confirmation and you will get the tracking information right away

Q: How to guarantee your service?

A. Strict inspection during production

B. Strictly check the products before shipment to ensure our packaging in good condition

C. Track and receive feedback from customer regularly

Q: What will you do for quality complaint ?

A. We will respond to customer within 24 hours.

B. Our QC will retest the same stock item, if confirmed it is quality problem, we will make corresponding compensation
