Stainless Steel Screen Water Filter Nozzles Wire Wound 0.15-10mm Flow Rating
Stainless Steel Johnson Wire-wound Water Filter Nozzle, Wedge Wire Strainer Nozzle, Water & Gas Screen Nozzle
Stainless steel filter screen, johnson screen nozzle, water and gas strainer nozzle, stainless steel filter nozzle, stainless steel filter candles, stainless steel lateral arms, wedge wire lateral pipes, wedge wire srainer, changeable filter element, header and hub laterals & hub radial laterals, water input device, water distributor, resign trans,etc.

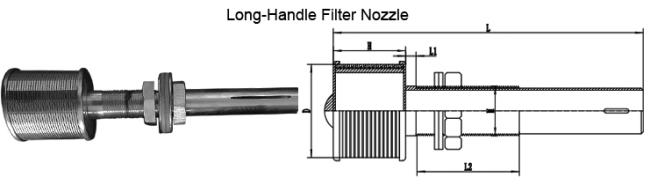

Specifition of Wire-wound Water Filter Nozzle, Wedge Wire Strainer Nozzle, Water & Gas Screen Nozzle
| Type | Slot size | Specifications | Flow filter area 0.2mm slot ( reference) |
|||
| D | H | L | M | |||
|
Wire-wound Water Filter Nozzle |
0.2-0.5 | 45 | 25 | 90 | 25 | 280 |
| 0.2-0.5 | 45 | 35 | 100 | 25 | 380 | |
| 0.2-0.5 | 45 | 45 | 110 | 25 | 550 | |
| 0.2-0.5 | 45 | 35 | 55 | 25 | 380 | |
| 0.2-0.5 | 45 | 45 | 65 | 25 | 550 | |
| 0.2-0.5 | 53 | 35 | 100 | 25 | 450 | |
| 0.2-0.5 | 53 | 45 | 110 | 25 | 580 | |
| 0.2-0.5 | 53 | 55 | 120 | 32 | 700 | |
| 0.2-0.5 | 57 | 35 | 100 | 32 | 530 | |
| 0.2-0.5 | 57 | 45 | 110 | 32 | 680 | |
| 0.2-0.5 | 57 | 55 | 120 | 32 | 830 | |
| 0.2-0.5 | 70 | 40 | 105 | 32 | 650 | |
| 0.2-0.5 | 70 | 55 | 115 | 32 | 810 | |
| PROFILE WIRE | ||||||||
| WIDTH(mm) | 1.00 | 1.50 | 1.50 | 2.00 | 2.30 | 2.50 | 3.00 | 3.05 |
| HEIGHT(mm) | 2.00 | 2.00 | 2.50 | 3.80 | 3.50 | 4.00 | 4.60 | 6.35 |
| SUPPORT ROD |  ROUND |
|||||
| WIDTH(mm) | 1.80 | 2.00 | 2.50 | 3.00 | 3.00 | Ø2.5--Ø6mm |
| HEIGHT(mm) | 2.50 | 3.00 | 4.00 | 4.60 | 6.00 | ---- |
Note:
1. One Nozzle with a rubber gasket, same material gasket and two thin nuts.
2. Available in customer design for perforated plate.
3. We can produce according to clients requirements.
Material: 304,321,316,316L,904L ,HastalloyB and C, ets
Characteristics of Wire-wound Water Filter Nozzle, Wedge Wire Strainer Nozzle, Water & Gas Screen Nozzle
- Type 316L stainless steel construction.
- Continuous slot design provide large circulation area
- Standard nozzle are 2in/51mm diameter and can be attached to the plate either with threaded end fittings or "L" blots.
- Standard slot opening is typically range between 0.006”(0.15mm), and 0.020in./0.50mm wide suitable for 40 to 50 mesh size media, Other slot sizes are also available.
- Wedge wire screen is highly resistant to plugging.
- Choice of either 3/4” NPT or 1” NPT fittings are available from stock. Other styles, such as tee-bolt mountings, and drop tubes are readily available.
- Unaffected by temperature, corrosion resistant, aging resistant, long life span, easy change, saftey and enviormental friendly.

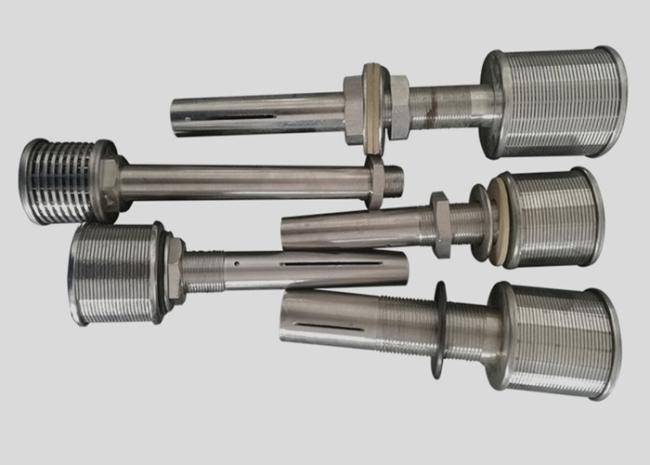

Details of stainless steel water filter nozzle:
Stainless steel v / wedge - shaped wire water filter nozzle, usually with high quality stainless steel 304, 316L and other materials to ensure strong product structure and product bearing capacity.
Material: stainless steel 304, 316L, 321and other materials to ensure strong product structure and product bearing capacity.

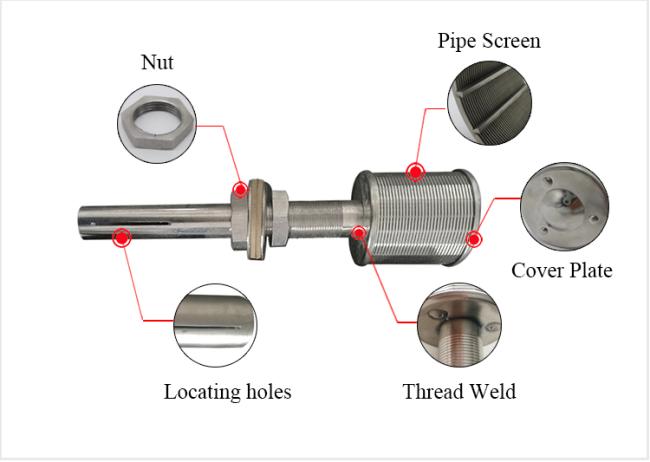

Accessories: Two nuts, two rubber gaskets, two caps, one screw M10, one filter tube
Application: Water distributor, tank, power plant
Available in a variety of standard designs or can be customer designed to meet your requirement.
Benefits:
Non-clogging capabilities
Self supporting
High abreaction resistance
Large open area
Better sand filtration
Energy saving
Lowest possible cost
Long using life
Maximum flow capacity
OEM service:
Please tell us the specification you need, Then we will help you to process the high quality products.
1. Material: mainly stainless steel 304, 316L, 321, Hastelloy B, C and other materials.
2. Outer diameter: 38mm, 45 mm, 53 mm, 57mm, 70mm, 82mm in usual.
3. Slot: 0.2mm-0.5mm in usual, error: + 0.03mm, can be according to customer needs.
4. Type: Female thread (G3/4", G1"), male threaded (M24 Or M32), no thread, long handle, single velocity, double velocity etc.
5. Length: 30mm, 45mm, 50mm, 100mm, 130mm, 150mm, and by customers' request.
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 3-5 days for Sample preparing , 15-25 working days for mass production.
Q3. Do you have any MOQ limit for the order?
A: Low MOQ, 3pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Airline, sea shipping and rail transportation are all optional.
Or ship by EMS, DHL, UPS, FedEx or TNT, it takes 5-7 days to arrive.
Q5. How to proceed an order?
A: Firstly let us know your need specification or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production.
